Артикул
Название
Примечание
Количество
1
177256A1
HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

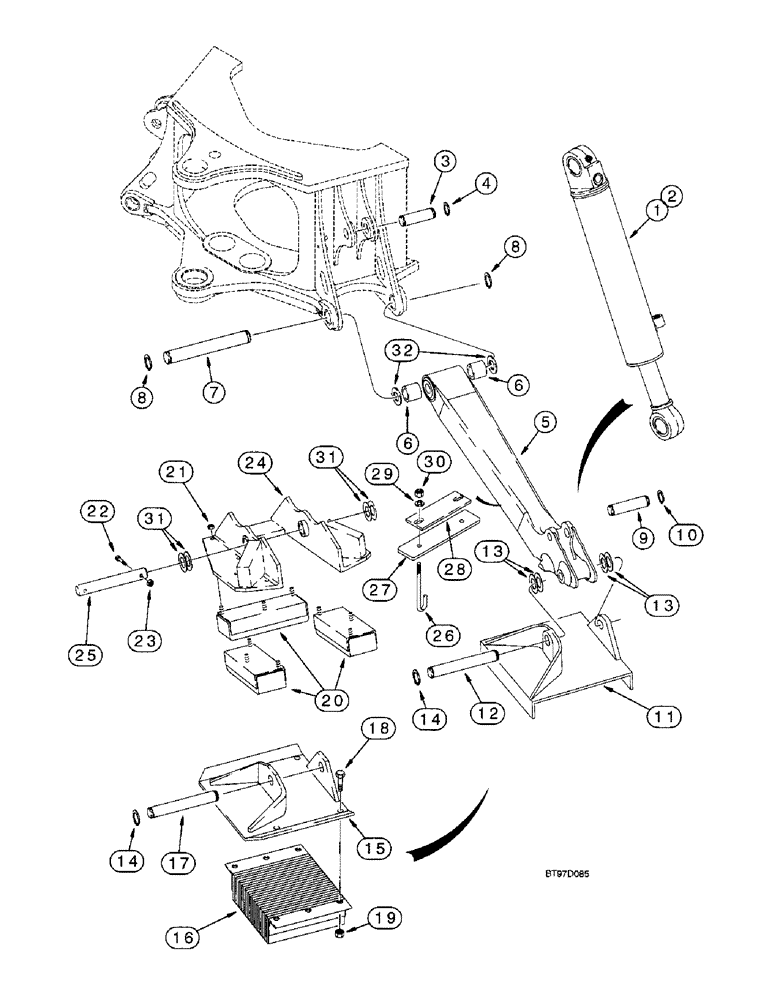

Assy - 127 (5) ID x 519 mm (20-7/16 inch) stroke, Stabilizer, RH, Parts list figure 8-132
1шт.
1
177256A1R
REMAN-HYD CYLINDER
590SL Series 2
1шт.
1
177256A1C
CORE-HYD CYLINDER
Return Number
1шт.
2
177257A1
HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke
Assy - 127 (5) ID x 519 mm (20-7/16 inch) stroke, Stabilizer, LH, Parts list figure 8-132
1шт.
2
177257A1R
REMAN-HYD CYLINDER
590SL Series 2
1шт.
2
177257A1C
CORE-HYD CYLINDER
Return Number
1шт.
3
D38907
PIN,1.75" OD x 5 5/16 L
- stabilizer cylinder to frame
2шт.
4
103-16175
SNAP RING,#175, Ext
Ring, Snap, , Pin #175, Ext
4шт.
5
192111A1
ASSEMBLY
LEG - stabilizer, Includes: Ref. 6
2шт.
7
121665A1
PIN,44.4mm OD x 308mm L
Stabilizer leg to frame
2шт.
8
103-16175
SNAP RING,#175, Ext
Ring, Snap, , Pin #175, Ext
4шт.
9
R26725
PIN,152.4mm OD x 44.45mm L
- Stabilizer cylinder to leg, W/O Lube Fitting
2шт.
9
47857124
PIN,44.4mm OD x 152.4mm L
W Lube Fitting
2шт.
9
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
10
D25279
SNAP RING,M35, Int
RING - snap, pin retaining
4шт.
11
D88427
PLATE
- stabilizer, cleated, if used
2шт.
12
D28648
PIN,1.5" OD x 10 7/16" L
- D88427 stabilizer plate to leg
2шт.
13
D143406
WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk
- flat, special, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer
1шт.
14
D25279
SNAP RING,M35, Int
RING - snap, pin retaining
4шт.
15
D142519
SHOE (ASSY)
PLATE - stabilizer, street or cemetery, if used
2шт.
17
D39256
AXLE PIN,38.1mm OD x 238.13mm L
PIN - 9-3/8 inch (238 mm) long, D142519 plate to leg
2шт.
18
413-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
- hex, 3/4 NC x 1-3/4 inch
8шт.
19
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC
8шт.
189970A1
PAD
PLATE ASSEMBLY - stabilizer flip over, if used, Includes: Ref. 20 - 30
2шт.
20
D142314
SKID/SHOE
PAD - rubber
3шт.
21
231-4247
LOCK NUT,7/16"-14, GB
NUT - hex, self-locking, 7/16 inch NC
9шт.
22
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
23
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
2шт.
24
189971A1
PAD
PLATE - stabilizer, flip over
1шт.
25
D149033
PIN,38.1mm OD x 323.5mm L
323.5 mm (12-3/4 inch) long, Plate to stabilizer leg
1шт.
26
190057A1
BOLT,J, 3/8" - 16 x 11", Gr 2
- J-type, 3/8 inch
2шт.
27
190037A1
PAD
- anti-flip
1шт.
28
192050A1
BAR
PLATE - steel
1шт.
29
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
2шт.
30
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
2шт.
31
D143406
WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk
- flat, special, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer
1шт.
32
495-81092
WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk
- flat, 1-25/32 x 2-1/2 x 3/64 inch
1шт.
Выбрано товаров: 39
