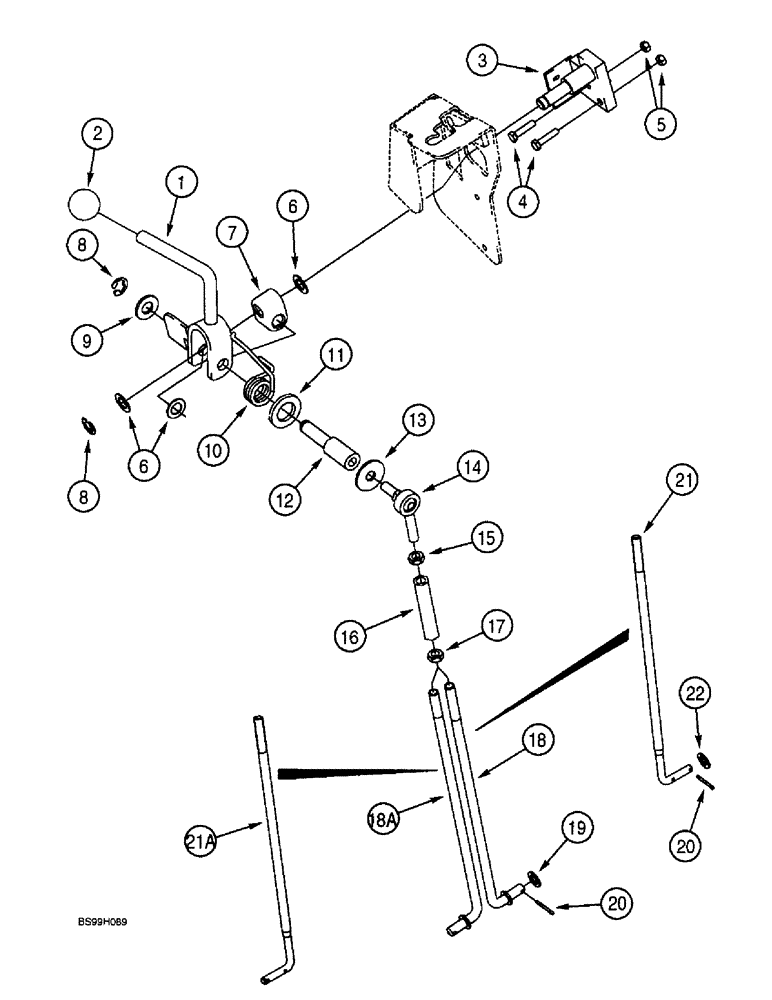

Запчасти Case 590SL (9-40) - BACKHOE AUXILIARY HYDRAULIC CONTROL LEVER (09) - CHASSIS/ATTACHMENTS

1

275820A3

CRANK LEVER

LEVER - auxiliary control, detent lever, backhoe, uni-directional flow, activates flow to the attachment through the use of the foot switch, see figure 4-46 for foot switch

1шт.

2

D59912

KNOB

- lever

1шт.

3

275677A1

PIVOT ASSY.

SHAFT - pivot, 7 or 8 spool

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

195-81013

WASHER,33/64" x 7/8" x .033"

- flat, 33/64 x 7/8 1/32 inch, used as a shim

3шт.

7

D136635

BLOCK

- shifter pivot

1шт.

8

103-3350

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

10

283226A1

SPRING

- return

1шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

1шт.

12

276070A1

SHAFT

- spring pivot

1шт.

13

495-81002

WASHER,3/8"

- flat, 7/16 x 1-3/8 x 5/64 inch

1шт.

14

R47941

JOINT TURNING

JOINT - ball, male, 3/8 inch NF

1шт.

15

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

16

259410A1

TURNBUCKLE

- hex

1шт.

17

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

18

257810A1

ROD

- control, 7 spool valve, if used

1шт.

18a

283332A1

ROD

- control, 8 spool valve, if used

1шт.

19

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

If used M10 x 18 x 1.6

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1-2шт.

21

333737A1

ROD

- control, 7 spool valve, if used

1шт.

21a

333739A1

ROD

- control, 8 spool valve, if used

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, If used

2шт.
