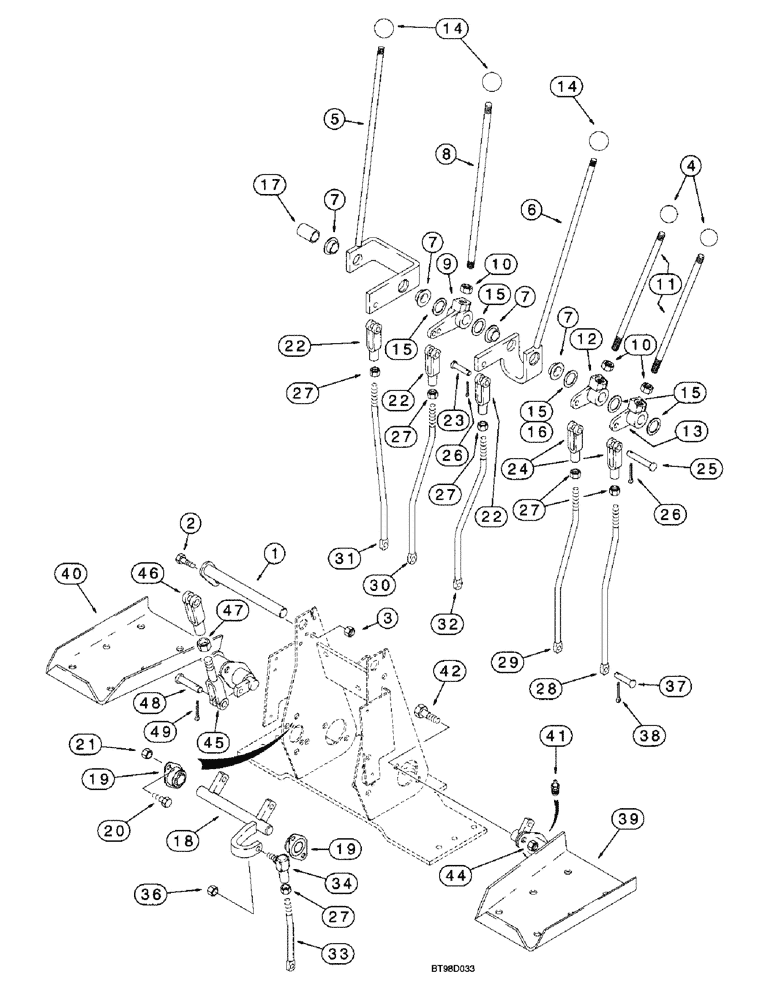

Запчасти Case 590SL (9-34) - BACKHOE CONTROLS WITH FOOT SWING, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

129015A1

SHAFT

- pivot, control levers

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

4

D59912

KNOB

- lever, stabilizer control levers

2шт.

5

136267A1

LEVER

- control, boom

1шт.

6

136269A1

LEVER

- control, bucket, Includes: Ref. 7

1шт.

7

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Control lever, used with 136267A1 and 136269A1 control levers

2шт.

8

136263A1

ROD,12.7mm OD x 407mm L

LEVER - control, dipper

1шт.

9

D150397

CRANK LEVER

BELLCRANK - dipper control

1шт.

10

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

3шт.

11

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

LEVER - control, stabilizer

2шт.

12

D150435

CRANK LEVER

BELLCRANK - right-hand stabilizer control

1шт.

13

D150434

CRANK LEVER

BELLCRANK - left-hand stabilizer control

1шт.

14

L54563

KNOB

- control lever, boom, dipper and bucket control levers

3шт.

15

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - special, hardened, flat, used as a shim between control levers

1шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, 3/4 inch, hardened, may be used in place of Ref. 15

1шт.

17

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

- control lever, not used on models with extendable dipper

1шт.

18

D148994

SHAFT,182.10mm L

- swing control

1шт.

19

D148993

BEARING,19.06mm ID

- self-aligning, shaft

2шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

22

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

3шт.

23

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

3шт.

24

D150493

END

- 3/8 inch, stabilizer control rod, special

2шт.

25

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN - clevis, 3/8 x 7/8 inch, hardened

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

5шт.

27

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

6шт.

28

189297A1

ROD

- left-hand stabilizer control

1шт.

29

189296A1

ROD

- right-hand stabilizer control

1шт.

30

189295A1

ROD

- dipper control

1шт.

31

189298A1

ROD

- boom control

1шт.

32

189294A1

ROD

- bucket control

1шт.

33

189299A1

ROD

- swing control

1шт.

34

D149295

BALL JOINT,3/8"

JOINT - ball, swing control, Serial Range: rod-shaft

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

1шт.

37

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rods-valve

6шт.

38

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

39

136271A1

PEDAL

- left-hand swing

1шт.

40

136270A1

PEDAL

- right-hand swing

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

42

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

44

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

45

D150503

END

ROD - with clevis, swing pedal to cross shaft

2шт.

46

D149262

CLEVIS,3/8-24"

- special, swing pedal rod

2шт.

47

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

48

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special, Swing pedal rod

4шт.

49

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.
