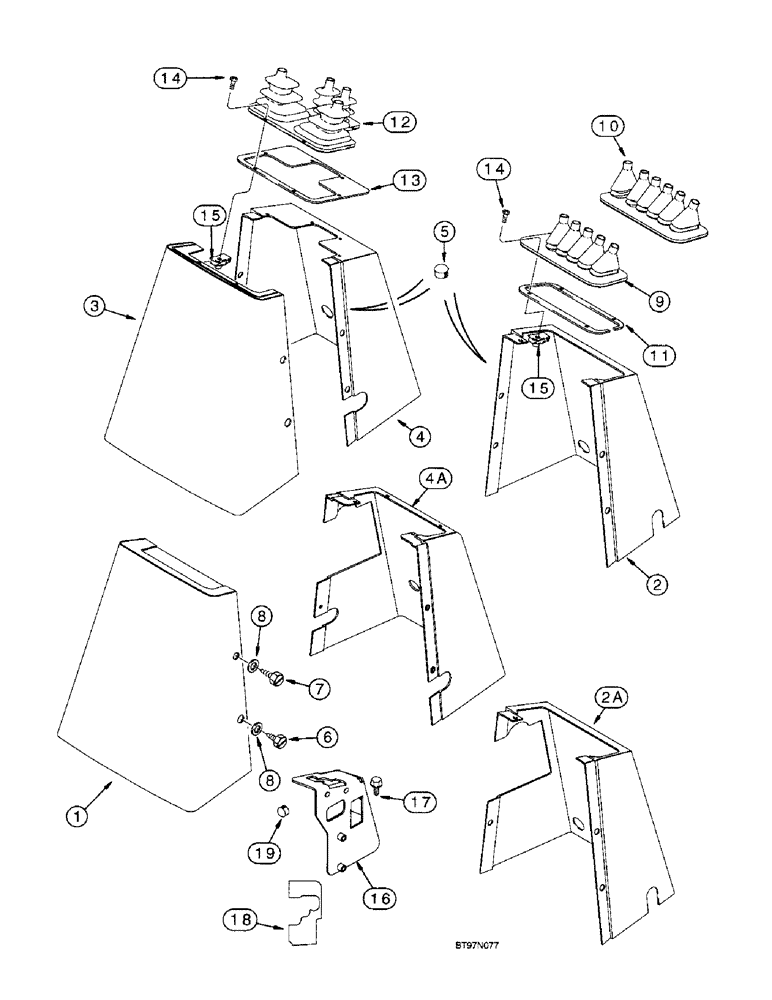

Запчасти Case 590SL (9-32) - BACKHOE CONTROL TOWER COVERS, MODELS WITH BACKHOE AUXILIARY (09) - CHASSIS/ATTACHMENTS

1

128403A1

REAR COVER

COVER - rear, console, used on all models with foot swing

1шт.

2

130480A1

COVER

- console, front, used on models with foot swing, without auxiliary hydraulics

1шт.

2a

253394A1

COVER

- console, front, used on models with foot swing, with auxiliary hydraulics

1шт.

3

128401A1

COVER

- console, rear, used on all models with hand swing

1шт.

4

130479A1

COVER

- front, console, used on models with hand swing, without auxiliary hydraulics

1шт.

4a

277187A1

COVER

- console, front, used on models with hand swing, with auxiliary hydraulics

1шт.

5

353-411

PLUG,Dome, 1.000" hole, Nylon

1 used with 130479A1 console, 2 used with 130480A1 console cover Dome, 1.000" hole, Nylon

1-2шт.

6

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch, lower

2шт.

7

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, upper

3шт.

8

195-140

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

5шт.

9

D149866

BOOT

- used with 130480A1 console cover with 5 control levers

1шт.

10

D149867

BOOT

- used with 130480A1 console cover with 6 control levers

1шт.

11

136822A1

RETAINER

- boot, used with items 9 and 10

1шт.

12

D149868

BOOT

Used with 130479A1 console cover with 4 control levers

1шт.

13

136824A1

LARGE PLATE

RETAINER - boot, used with item 12 only

1шт.

14

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

(4) used with 136822A1 retainer, (6) used with 136824A1 retainer Cross Pan Hd, #10-24 x 1/2"

4-6шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

(4) used with 136822A1 retainer, (6) used with 136824A1 retainer Tinn, U, #10-24

4-6шт.

16

277184A2

BRACKET

- control lever, models with backhoe auxiliary hydraulics

1шт.

17

281-14716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

SCREW - self-tapping, hex washer head, 1/4 NC x 1 inch, models with backhoe auxiliary hydraulics

2шт.

18

299383A1

DECAL

- backhoe auxiliary hydraulic control

1шт.

19

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch, models with backhoe auxiliary hydraulics

1шт.
