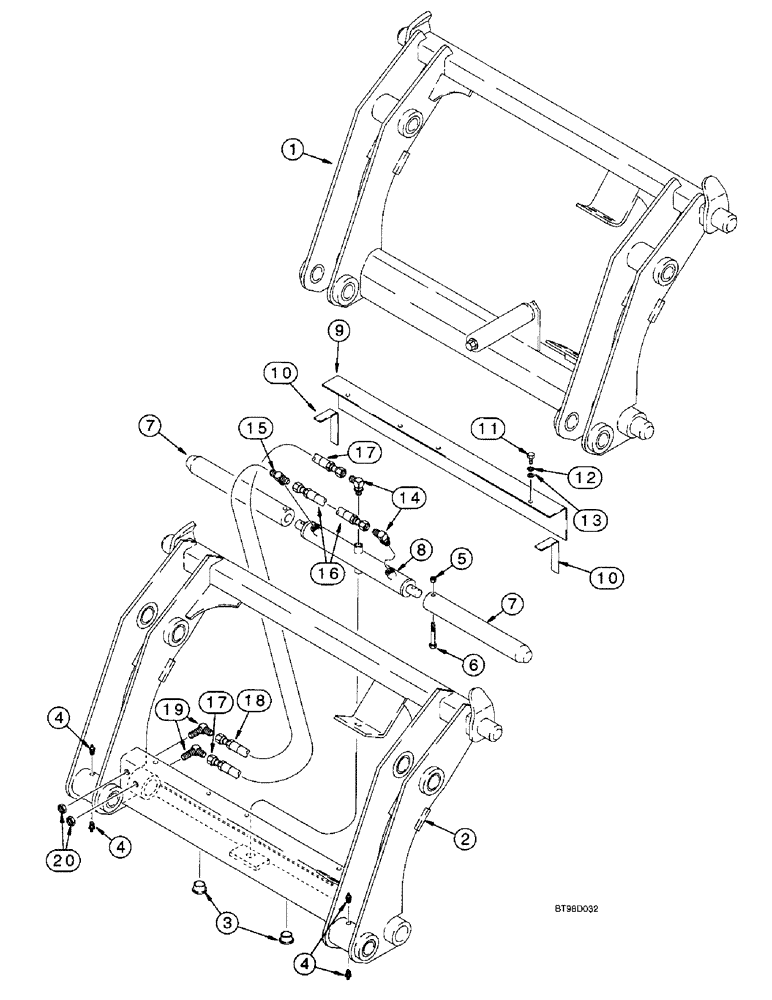

Запчасти Case 590SL (9-31) - TOOL QUICK COUPLERS, TOOL QUICK COUPLER, MANUAL, TOOL QUICK (09) - CHASSIS/ATTACHMENTS

1

191239A1

COUPLING

COUPLER - tool, loader, manual, used with D121194 bucket position pointer and 139235A1 right-hand bucket cylinder link, Ref. 6 and 13 on figure 9-27 and Ref. 40-44 on figure 8-66, if used

1шт.

Coupler comes complete, component parts are not serviced separately.

1шт.

292969A2

COUPLING

COUPLER - quick, tool, loader, hydraulic, for complete assembly order from Machinery Parts List, includes Ref. 2 - 35, with auxiliary hydraulics, Category III

1шт.

See figure 8-64 for hydraulic tool quick coupler hydraulics.

1шт.

307356A1

COUPLING

COUPLER - quick, tool, loader, hydraulic, for complete assembly order from Machinery Parts List, includes Ref. 2 - 21, without auxiliary hydraulics, Category III

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - quick tool coupler, hydraulic

1шт.

3

305497A1

PLUG,1.25" x 0.5"

- plastic, 1-1/4 ID x 1/2 inch O.D., tool quick coupler, hydraulic

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Tool quick coupler, hydraulic 1/4"-28 x .56" lg, Self-Tap

4шт.

5

231-4246

LOCK NUT,3/8"-16, GB

NUT, LOCK, , Tool quick coupler, Hydraulic 3/8"-16, GB

2шт.

6

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

Tool quick coupler, hydraulic Hex, 3/8"-16 x 2 1/2", G8

2шт.

7

305496A1

PIN,49.23mm OD x 381mm L

- 1-15/16 O.D. x 15 inch long, tool quick coupler, hydraulic

2шт.

8

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double acting, Component parts not serviced separately, Tool quick coupler

1шт.

305499A1R

REMAN-HYD CYLINDER

590SL SERIES 2 (3/98-)

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

9

305495A1

COVER

- channel, tool quick coupler, hydraulic

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, tool quick coupler, hydraulic

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, tool quick coupler, hydraulic

3шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Tool quick coupler, hydraulic 5/16"

3шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Tool quick coupler, Hydraulic

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. o-ring boss, tool quick coupler, hydraulic, includes o-ring

2шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16 -18 inch adj. o-ring branch x flare x flare, tool quick coupler, hydraulic, includes o-ring

1шт.

16

305492A1

HYDRAULIC HOSE,260.00 mm

- Quick tool coupler 260.00 mm

1шт.

17

305494A1

HYDRAULIC HOSE,387.00 mm

- Quick tool coupler 387.00 mm

1шт.

18

305493A1

HYDRAULIC HOSE,235.00 mm

- Quick tool coupler 235.00 mm

1шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Quick tool coupler, hydraulic 90º Blkhd, 9/16"-18, 37º x 9/16"-18, 37º

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, hex, lock, bulkhead, 9/16 inch NF, tool quick coupler, hydraulic

2шт.

21

305508A1

DECAL KIT

KIT, DECALS, Incl. Four Decals, Not shown, Tool quick coupler, Hydraulic

1шт.

22

307385A1

HYDRAULIC HOSE,387.40 mm

HOSE, HYDRAULIC (15-1/4") used to service couplers 292969A2 and 86982425 387.40 mm

2шт.

22

84203107

HYDRAULIC HOSE,469.9mm L

HOSE, HYDRAULIC 469.9mm (18.5") used to service couplers 87602620 and 87602625

2шт.

23

307386A1

HYDRAULIC HOSE,628.70 mm

HOSE, HYDRAULIC, (24-3/4") long, Not shown, Tool quick coupler 628.70 mm

1шт.

24

307387A1

HYDRAULIC HOSE,717.60 mm

HOSE, HYDRAULIC, (28-1/4") long, Not shown, Tool quick coupler 717.60 mm

1шт.

25

307388A1

HOSE PROTECTION,26" / 660.4mm L

HOSE, PROTECTION, Guard, 660 mm (26") long, Not shown, Tool quick coupler, Hydraulic

1шт.

26

307389A1

PIVOT

SWIVEL - coupler, not shown, tool quick coupler, hydraulic

2шт.

27

137344A1

PLUG

CAP - male coupling, not shown, tool quick coupler, hydraulic

1шт.

28

137343A1

PLUG

CAP - female coupling, not shown, tool quick coupler, hydraulic

1шт.

29

123537A1

COUPLING, QUICK, FEM

COUPLING, QUICK, FEMALE, Disconnect, Quick tool coupler, Hydraulic, Not shown

1шт.

30

245423A1

FITTING

COUPLER - hydraulic, not shown, tool quick coupler, hydraulic

1шт.

31

126155A1

FITTING

CONNECTOR - straight, bulkhead, not shown, tool quick coupler, hydraulic

2шт.

32

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 7/8-14 inch flare x bulkhead flare, not shown, tool quick coupler, hydraulic

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF, not shown, tool quick coupler, hydraulic

2шт.

34

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

NUT - hex, lock, 7/8 inch NF, not shown, tool quick coupler, hydraulic

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tool quick coupler, hydraulic

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tool quick coupler, hydraulic

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tool quick coupler, hydraulic

1шт.
