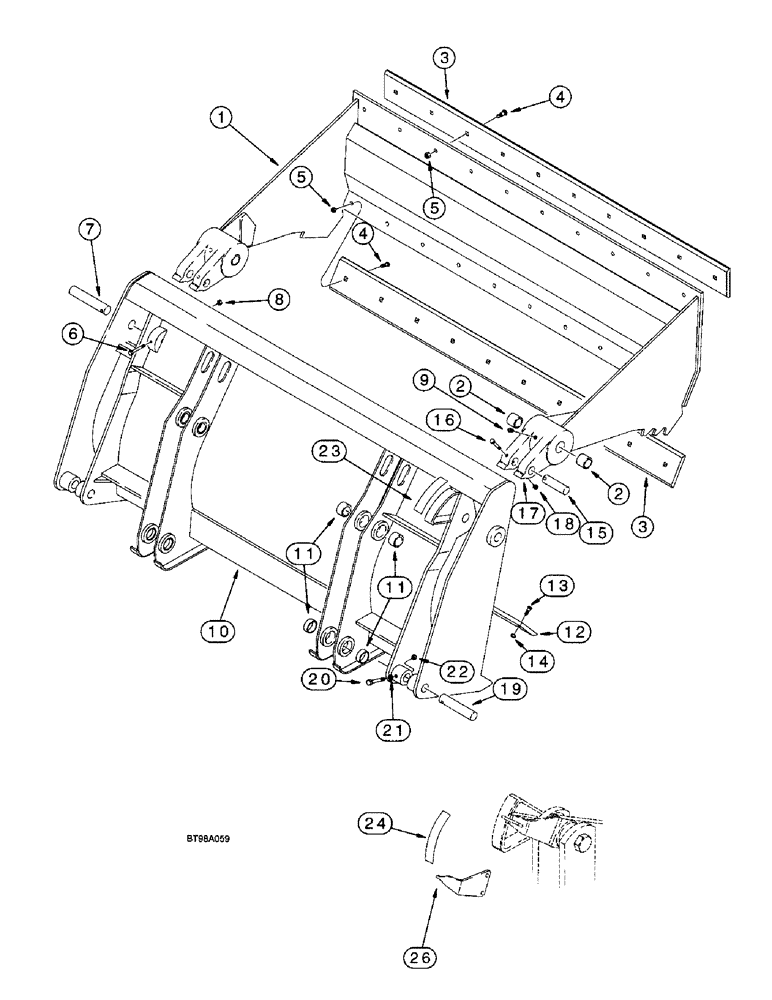

Запчасти Case 590SL (9-29) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

315004A1

BUCKET

ASSEMBLY - clam, loader, with hydraulics, order from Machinery Price List, 2362 mm (93 inch) wide, includes Ref 1 - 23 below and Ref. 1 - 21 on figure 7-21

1шт.

185300A1

BUCKET

ASSEMBLY - clam, order from Machinery Price List, 2362 mm (93 inch) wide, Includes: Ref. 1 - 23

1шт.

144210A1

CLAMSHELL BUCKET

BUCKET, CLAMSHELL, Assy, Incl Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 25 mm (1 inch) long, clam pivot

4шт.

3

142301A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2362mm L

EDGE, CUTTING, Bucket

2шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

20шт.

5

29-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

20шт.

6

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 110 mm

2шт.

7

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

144239A1

HALF BLADE

BLADE ASSEMBLY - clam bucket, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

- bucket ear

8шт.

12

133542A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2359mm L

- cutting, blade

1шт.

13

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

BOLT, PLOW, 5/8"-11 x 2", G8, Full Thd

10шт.

14

29-1010

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

10шт.

15

D51392

PIN,31.72mm OD x 101.6mm L

- cylinder mounting, upper

2шт.

16

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

19

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

20

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

- hex, 10 - 1.5 x 80 mm

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

23

321-1708

DECAL

- 0 - 2 - 4, clam bucket opening indicator

1шт.

24

321-1707

DECAL

- clam bucket position

1шт.

26

250851A1

POINTER

- bucket position, bolts to clam bucket link, see figure 9-28 for link and mounting hardware

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
