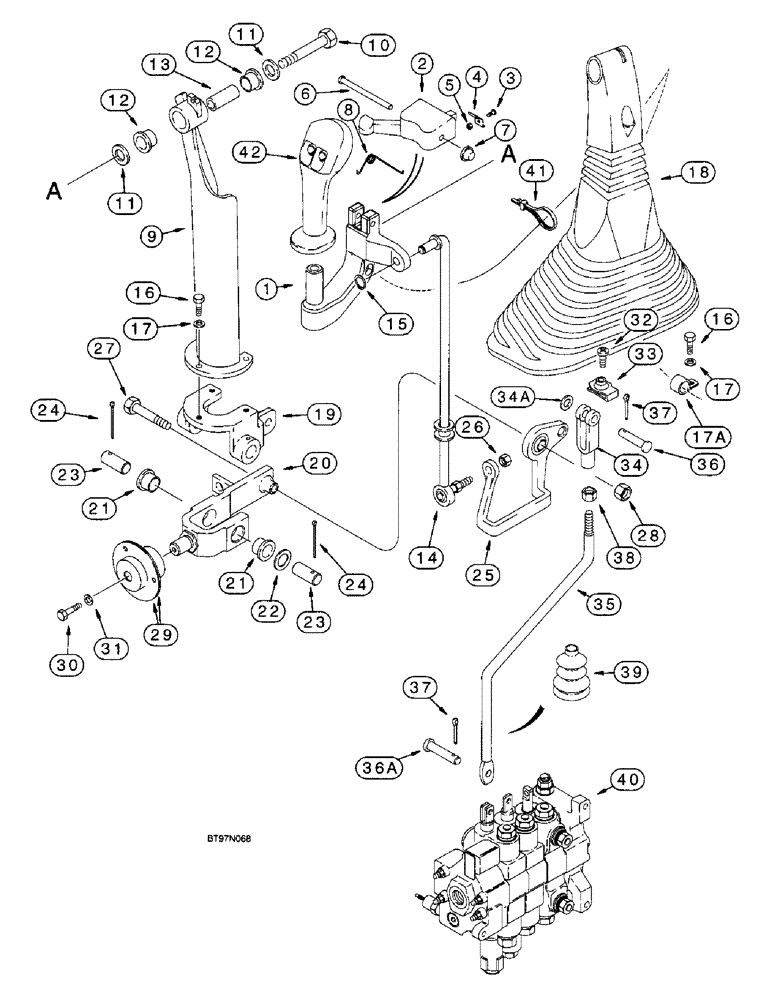

Запчасти Case 590SL (9-24) - LOADER CLAM CONTROL (09) - CHASSIS/ATTACHMENTS

1

297615A1

HANDLE

- control lever

1шт.

2

123815A1

LATCH

- clam lock

1шт.

3

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- machine, pan head Phillips, No. 5 NC x 3/8 inch

2шт.

4

129914A1

SPRING

- leaf, clam lock

2шт.

5

225-14105

NUT,#5-40

2шт.

6

439-5436

HEADED PIN,1/4" x 2 1/4", G5

PIN - headed, 1/4 x 2-1/4 inch

1шт.

7

143210A1

BLANK-OFF PLUG

CAP - push, 1/4 inch

1шт.

8

124243A1

SPRING

- torsion, latch

1шт.

9

123493A1

SUPPORT

LEVER - control, loader clam

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

12

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

- flanged, control lever

2шт.

13

133989A1

SLEEVE

- pivot

1шт.

14

239306A1

THREADED ROD

ROD - control, clam

1шт.

15

103-1437

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

17

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

17a

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type, Clutch cutout control harness to control lever 3/8", Insul, 5/16" Bolt

1шт.

18

133617A1

BOOT

- control lever, clam

1шт.

19

195615A1

SUPPORT

BRACKET - control, Serial Range: lever-bellcrank

1шт.

20

176311A1

BELLCRANK

- control, loader, Includes: Ref. 21

1шт.

21

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

- flanged, bellcrank

2шт.

22

495-81184

WASHER,21/32" x 1 1/2" x .030"

- flat, 21/32 x 1-1/2 x 1/32 inch, use as a spacer

1шт.

23

102761A1

PIN,15.91mm OD x 35mm L

Bellcrank to control lever bracket

2шт.

24

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

25

112382A1

BELLCRANK

- control, loader clam

1шт.

26

425-116

NUT,3/8" - 24, Gr 5

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

29

112380A1

BEARING ASSY

Retainer

2шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

- flat, 9/32 x 7/8 x 3/32 inch, hardened

1шт.

32

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

33

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

34

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

1шт.

34a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Between clevis and bellcrank 3/8", SAE

1шт.

35

187438A1

THREADED ROD

ROD - control, clam, at loader valve

1шт.

36

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special, Upper

1шт.

36a

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, clam control rod lower clevis

1шт.

37

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

38

425-116

NUT,3/8" - 24, Gr 5

1шт.

39

132873A1

BELLOWS

BOOT - 3/8 inch rod, at loader valve

1шт.

40

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, three-spool, parts list figure 8-74 or 8-75A

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, if used

1шт.

42

292904A1

HANDLE

- control lever, loader, two button, declutch and differential lock switches, models without powershift transmission

1шт.

42a

293262A1

HANDLE

- control lever, loader, two button, declutch and differential lock switches, models with powershift transmission, not shown

1шт.

THIS IS A THREE-BUTTON HANDLE, WITH DECLUTCH, DIFFERENTIAL LOCK, TRANSMISSION KICKDOWN, FUNCTIONS.

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR - harness

1шт.

258616A1

LOCK

- four-pin

1шт.

298176A1

PLUG

- cavity

1шт.

345-133

GLUE

ADHESIVE - Superbonder 409, 1 ml, for attaching Ref. 1 to Ref. 42

1шт.
