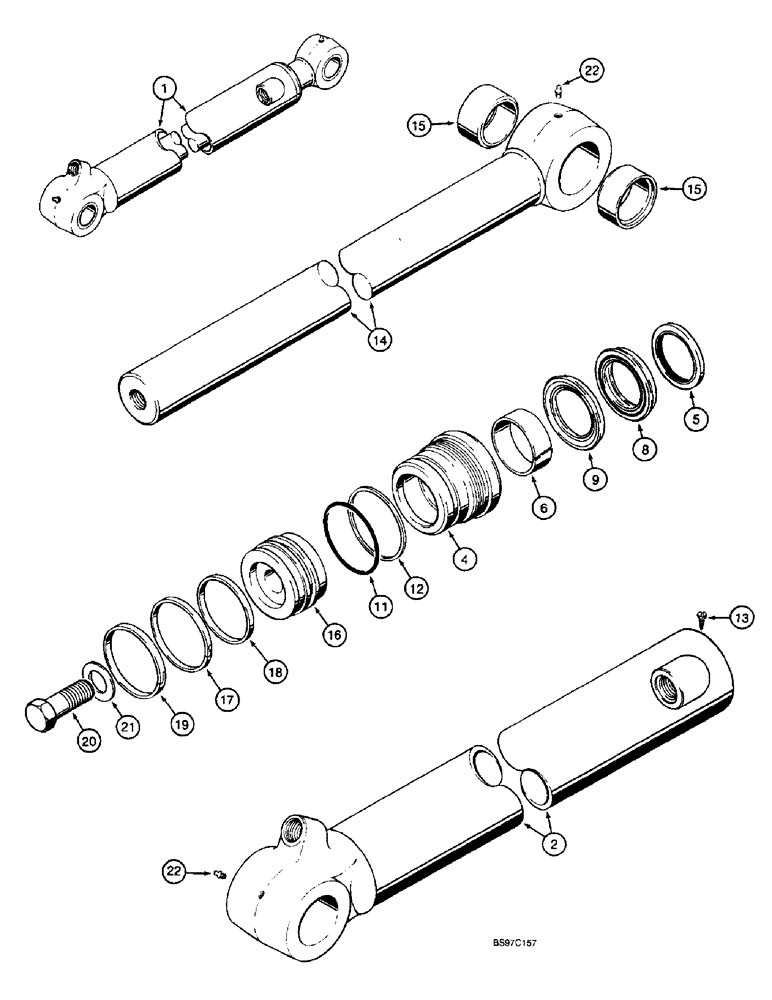

Запчасти Case 590SL (9-21) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

296434A1

CYLINDER,Double Acting, 69.8mm Rod, 872mm Stroke

ASSEMBLY - 95 (3-3/4) ID x 872 mm (34-5/16 inch) stroke, bucket, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1

296434A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

1

296434A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

296435A1

BARREL,95.25 mm ID, 1086.9 mm Length

TUBE - cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 22

1шт.

4

296445A1

GLAND

- cylinder

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 297895A1

1шт.

6

252790A1

BEARING,2.75mm ID x 69.85mm OD x 25.15 W

BUSHING - center

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1542880C1

PACKAGE

KIT - seal, NSS, order 297895A1 kit below

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

8

1543008C1

SEAL - rod, NSS, order 297895A1 kit below

1шт.

9

1543007C1

SEAL - buffer, NSS, order 297895A1 kit below

1шт.

11

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

Gland -237, 70 Duro, 3.359" ID x .139" Thk

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

12

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

14

296439A1

PISTON ROD

ROD ASSEMBLY - piston, 70 mm (2-3/4 inch) diameter, cylinder

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

- 50 x 60 x 25.5 mm long, piston rod

2шт.

16

296443A1

PISTON

- cylinder

1шт.

17

1340762C1

SEAL,92mm ID x 96.5mm OD x 6.9mm Thk

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

18

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

- backup, piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

19

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

RING - wear, piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

20

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special, 1-1/4 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight,1/8 PT x 21/32 inch

2шт.

297895A1

SEAL KIT

KIT - seal, includes Ref. 5, 6, 11, 12, 17 - 19 and P/N 1542880C1

1шт.
