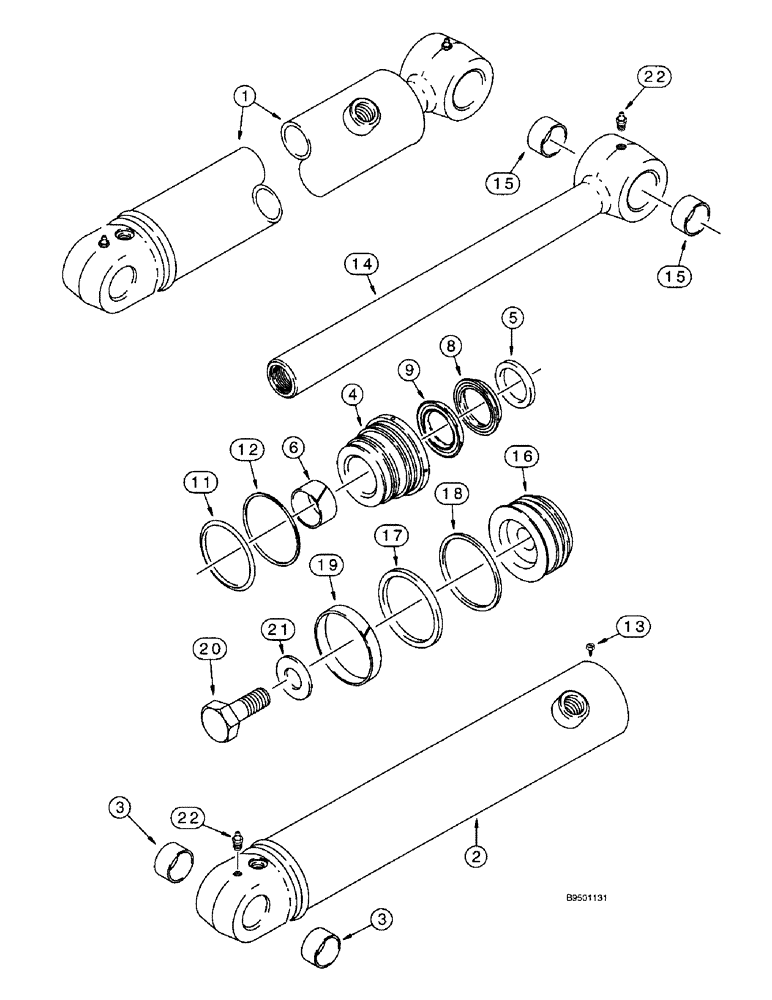

Запчасти Case 590SL (9-20) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

140965A1

CYLINDER,Double Acting, 69.8mm Rod, 564.2mm Stroke

ASSEMBLY - 140 (5-1/2) ID x 564 mm (22-7/32 inch) stroke, dipper, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1

140965A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

1

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

141179A1

TUBE,139.5mm Rod

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

1980369C2

CYLINDER END CAP

GLAND - cylinder, Replaces 1980369C1

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

6

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

BUSHING - center

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

1542880C1

PACKAGE

KIT - seal, NSS, order 179011A1 kit below, Includes: Ref. 8 and 9

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

8

1543008C1

SEAL - rod, NSS, order 179011A1 kit below

1шт.

9

1543007C1

SEAL - buffer, NSS, order 179011A1 kit below

1шт.

11

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

12

G107971

RING

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

14

132976A1

ROD

ASSEMBLY - piston, 70 mm (2-3/4 inch) diameter, cylinder, Includes: Ref. 15

1шт.

15

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

- piston rod

2шт.

16

140967A1

PISTON

- cylinder

1шт.

17

1980401C1

SEAL

- piston

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

18

140968A1

RING,134.22mm ID, Ext

- cast iron, piston seal

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

19

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N 179011A1

1шт.

20

25987R1

BOLT,Hex, 1 1/2" - 12 x 3 1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

21

G104990

WASHER

- flat, hardened, special, 1-1/2 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

179011A1

SEAL KIT

KIT - seal, includes Ref. 5, 6, 11, 12, 17 - 19 and P/N 1542880C1

1шт.
