Запчасти Case 590SL (9-19) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

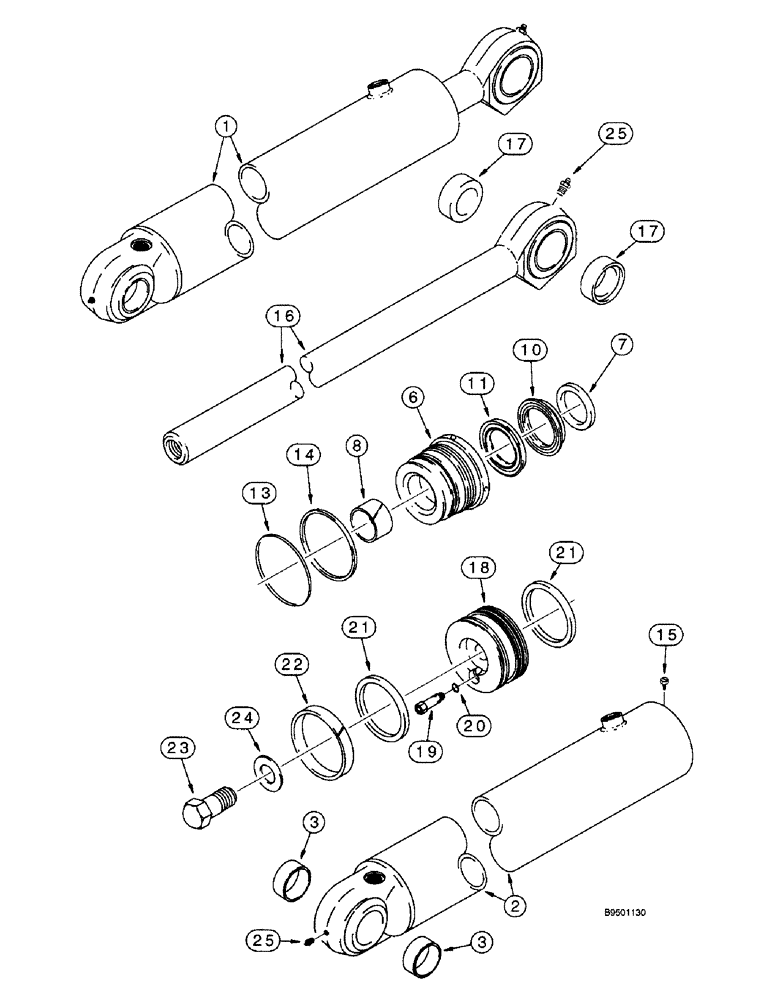

Схема запчастей Case 590SL - (9-19) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS
13
6
20
14
21
19
8
17
24
16
18
3
23
15
7
22
17
10
3
25
21
25
2
11
1

Артикул

Название

Примечание

Количество

1

175785A1

CYLINDER,Double Acting, 63.5mm Rod, 975.7mm Stroke

ASSEMBLY - 140 (5-1/2) ID x 976 mm (38-13/32 inch) stroke, boom, without grease seals at rod and tube eyes, Includes: Ref. 2 - 25

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1

175785A1R

REMAN-HYD CYLINDER

590SL Series II

1шт.

1

175785A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

175787A1

TUBE,139.65mm Bore Dia

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 6

1шт.

6

1542982C2

CYLINDER END CAP

GLAND - cylinder, has identification groove on outer lip, Replaces 1542982C1

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT - seal, NSS, order 1980412C2 kit below, Includes: Ref. 10 and 11

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

10

1542931C1

SEAL

- rod, NSS, order 1980412C2, kit below

1шт.

11

1542930C1

SEAL

- buffer, NSS, order 1980412C2 kit below

1шт.

13

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

14

G107971

RING

- backup, gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 x 3/8 "

1шт.

16

133570A1

ROD

ASSEMBLY - piston, 63 mm (2-1/2 inch) diameter

1шт.

17

D151062

BUSHING,80.19mm ID x 90mm OD x 30mm L

- rod

2шт.

18

1346497C2

PISTON,139.7mm Bore, 63.5mm Rod, 70.95mm W

- cylinder, used with 1958028C1 relief valve cartridge

1шт.

19

1958028C1

VALVE

ASSEMBLY - relief, cartridge, internal component parts not serviced separately, Includes: Ref. 20

1шт.

21

1980401C1

SEAL

- piston

2шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

22

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

RING - wear, piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

23

28-2256

BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8

- hex, 1-3/8 NF x 3-1/2 inch, grade 8

1шт.

24

G32559

WASHER

- flat, special, 1-3/8 inch, 1-1/4 inch

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32

2шт.

1980412C2

SEAL KIT

KIT - seal, includes Ref. 7, 8, 13, 14, 21 and 22

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 34
