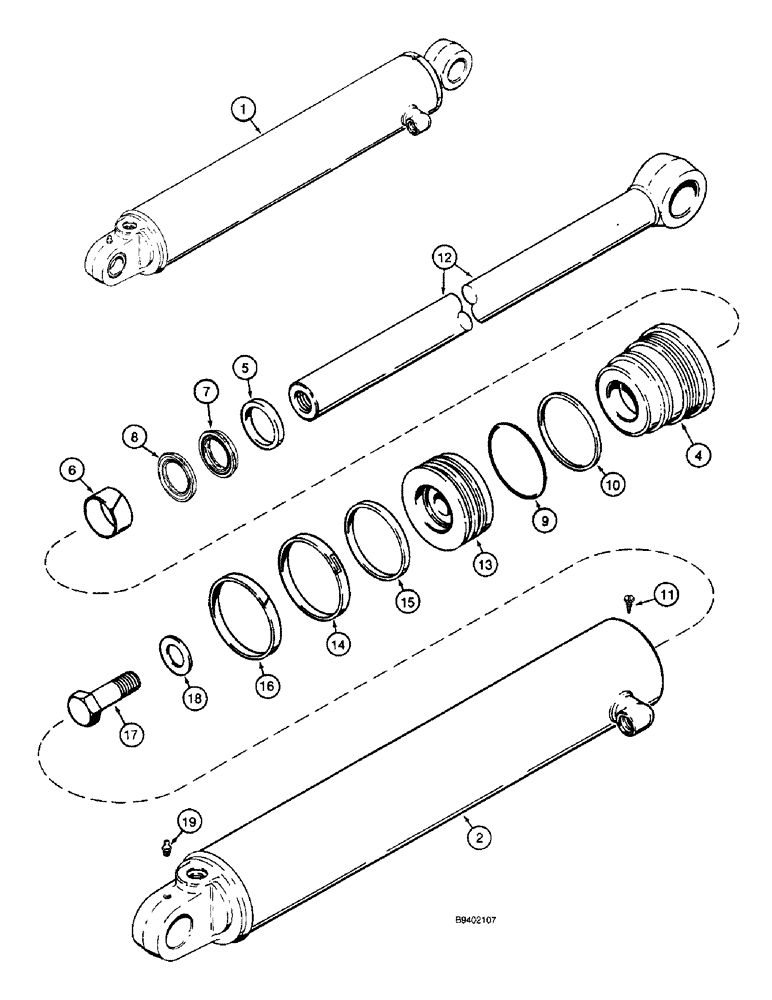

Запчасти Case 590SL (9-17) - BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

Assy - 127 (5) ID x 519 mm (20-7/16 inch) stroke, Stabilizer, RH, without tube or rod bushings, Incl Ref 1 - 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1

177256A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

1

177256A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

177257A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

Assy - 127 (5) ID x 519 mm (20-7/16 inch) stroke, Stabilizer, LH, without tube or rod bushings, Incl Ref 1 - 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1

177257A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

1

177257A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

177258A1

HYD TUBE,126.77mm Bore Dia

TUBE - cylinder, right-hand

1шт.

2

177259A1

HYD TUBE,126.77mm Bore Dia

TUBE - cylinder, left-hand

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

1542918C3

GLAND

- Cylinder, Replaces 1542918C1 and 1542918C2

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

Center

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT - seal, NSS, order 1543289C2 kit below

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

7

1542929C1

SEAL,2.778mm OD

- rod, NSS, order 1543289C2 kit below

1шт.

8

1542928C1

SEAL,2.275" ID

- buffer, NSS, order 1543289C2 kit below

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

177261A1

ROD

- piston, 57 mm (2-1/4 inch) diameter

1шт.

13

G110594

PISTON

- cylinder

1шт.

14

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

15

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

16

G102090

RING,127mm OD, Ext

- wear, piston

1шт.

Part of Seal Kit, P/N 1543289C2

1шт.

17

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special, 1-1/32 x 2-3/8 x 3/16 inch

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

1543289C2

SEAL KIT

KIT, SEAL, Incl Ref. 5, 6, 9, 10, 14 - 16 and P/N 1542877C1

1шт.
