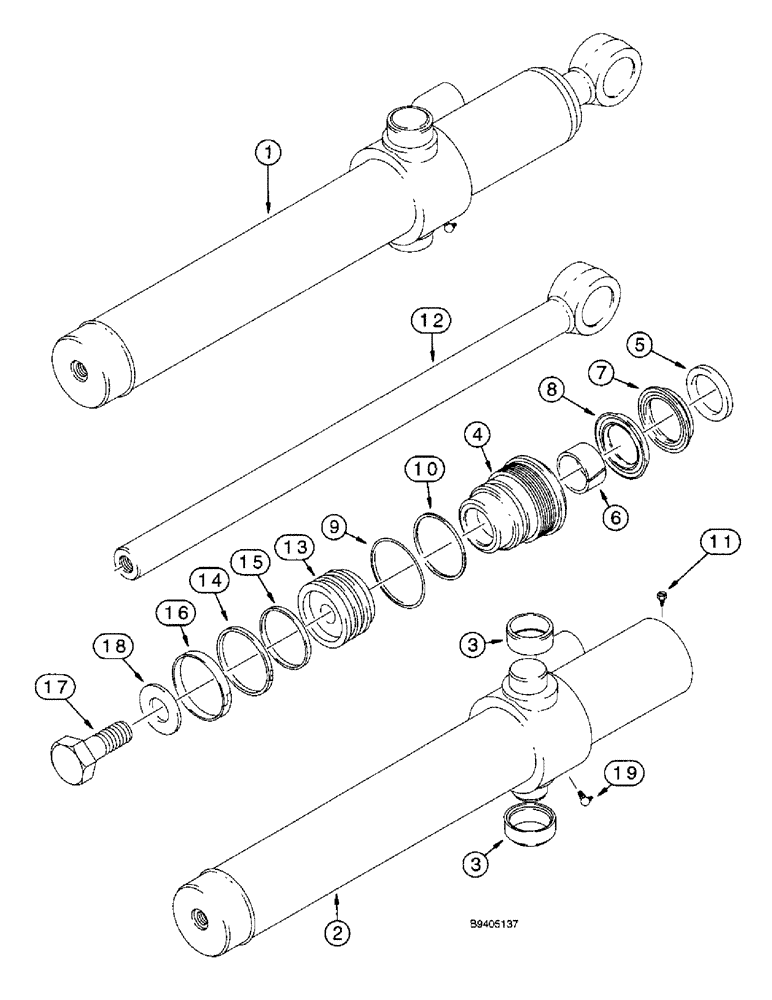

Запчасти Case 590SL (9-15) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

255756A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 537.5mm Stroke

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 538 mm (21-3/16), Includes: Ref. 2 - 19

2шт.

2

251861A1

BARREL,82.6 mm ID, 711.7 mm Length

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

1980321C3

GLAND

- cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - dust

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Order 1543260C1 kit below, Incl Ref 7 - 10

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

7

1542999C1

SEAL

- rod, NSS, order 1543260C1 kit below

1шт.

8

1542998C1

SEALING RING

- buffer, NSS, order 1543260C1 kit below

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

Gland -233, 70 Duro, 2.859" ID x .139" Thk

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

255760A1

ROD ASSY.

ROD - piston, 44 mm (1-3/4 inch) diameter, without bushings in eye

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

- cylinder

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

16

S109445

RING,82.55mm OD, Ext

- wear, piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

17

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

1543260C1

SEAL KIT

KIT, SEALS, Incl Ref. 5, 6, 9, 10, 14 - 16 and P/N 1542875C1

1шт.
