Запчасти Case 590SL (9-14) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

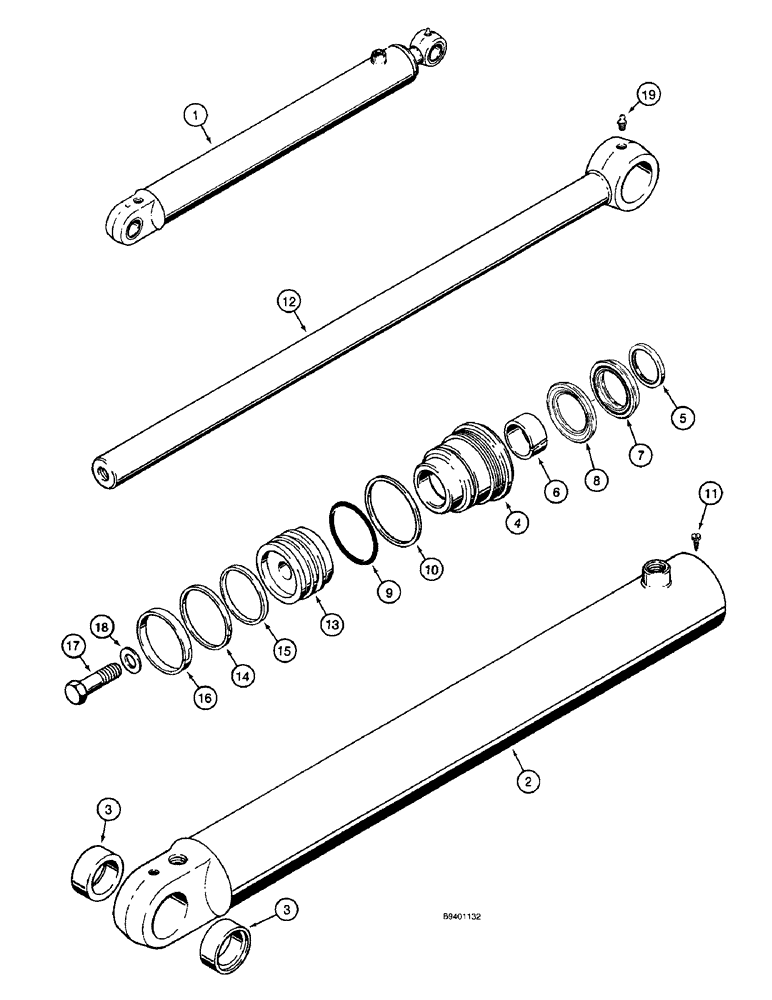

Схема запчастей Case 590SL - (9-14) - LOADER LIFT CYLINDERS (08) - HYDRAULICS
6
10
1
11
2
19
7
18
17
9
14
15
4
5
13
16
3
12
3
8

Артикул

Название

Примечание

Количество

1

133936A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 766mm Stroke

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 766 mm (30-1/8 inch)stroke, lift, right-hand and left-hand, Includes: Ref. 2 - 19

2шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

2

133937A1

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4

1шт.

4

1971707C2

CYLINDER END CAP

GLAND - cylinder, Replaces 1971707C1

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - dust

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Order 1543266C1 kit below, Incl Ref 7 and 8

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

7

1542999C1

SEAL

- rod, NSS, order 1543266C1 kit below

1шт.

8

1542998C1

SEALING RING

- buffer, NSS, order 1543266C1 kit below

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Gland -235, 70 Duro, 3.109" ID x .139" Thk

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

133083A1

PISTON ROD

ROD - piston, 44 mm (1-3/4 inch) diameter, cylinder, without bushings

1шт.

13

135259A1

PISTON

- cylinder

1шт.

14

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

17

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 inch, grade 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, 1 inch, hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

1543266C1

SEAL KIT

KIT - seal, includes Ref.5, 6, 9, 10, 14 - 16 and P/N 1542875C1

1шт.

Выбрано товаров: 31
