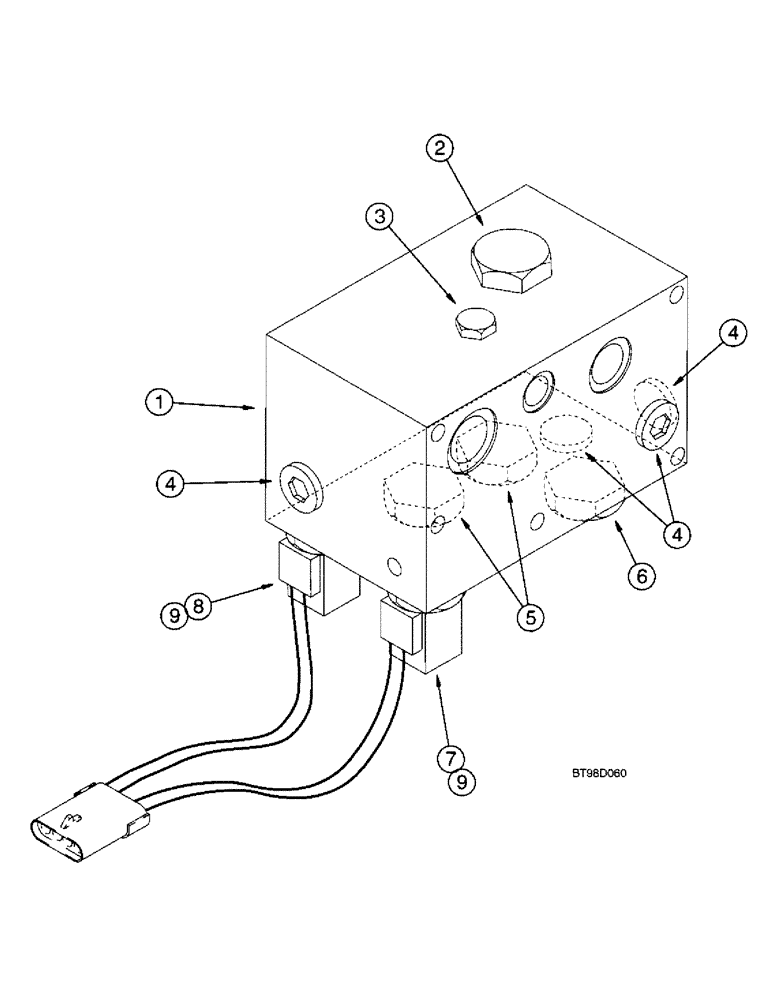

Запчасти Case 590SL (9-10) - AUXILIARY BACKHOE VALVE (08) - HYDRAULICS

298772A1

VALVE

ASSEMBLY - auxiliary, backhoe, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

309785A1

VALVE

- check, component parts not serviced separately

1шт.

Part of Seal Kit, P/N 309787A1

1шт.

3

304371A1

HYDRAULIC VALVE

VALVE - coast check, component parts not serviced separately

1шт.

Part of Seal Replacement Kit, P/N 149942C1

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Incl. O-Ring Hex Soc, 1 1/16"-12 ORB

4шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

309789A1

VALVE

- check, component parts not serviced separately

2шт.

Part of Seal Kit, P/N 309787A1

1шт.

6

309788A1

VALVE

- check, component parts not serviced separately

1шт.

Part of Seal Kit, P/N 309787A1

1шт.

7

309784A1

VALVE

- solenoid, two way, normally open, component parts not serviced separately

1шт.

Part of Seal Kit, P/N 309787A1

1шт.

8

309790A1

VALVE

- solenoid, two way, normally open, component parts not serviced separately

1шт.

Part of Seal Replacement Kit, P/N 149942C1

1шт.

9

309791A1

COIL

- solenoid

2шт.

309787A1

SEAL PACKAGE

KIT - seal, includes (2) o-rings and (1) backup ring which are not serviced separately, not shown, use with Ref. 2 and 5 - 7

5шт.

149942C1

SEAL KIT

KIT - seal replacement, relief valve, includes (2) o-rings and (1) backup ring which are not serviced separately, not shown, use with Ref. 3 and 8

2шт.
