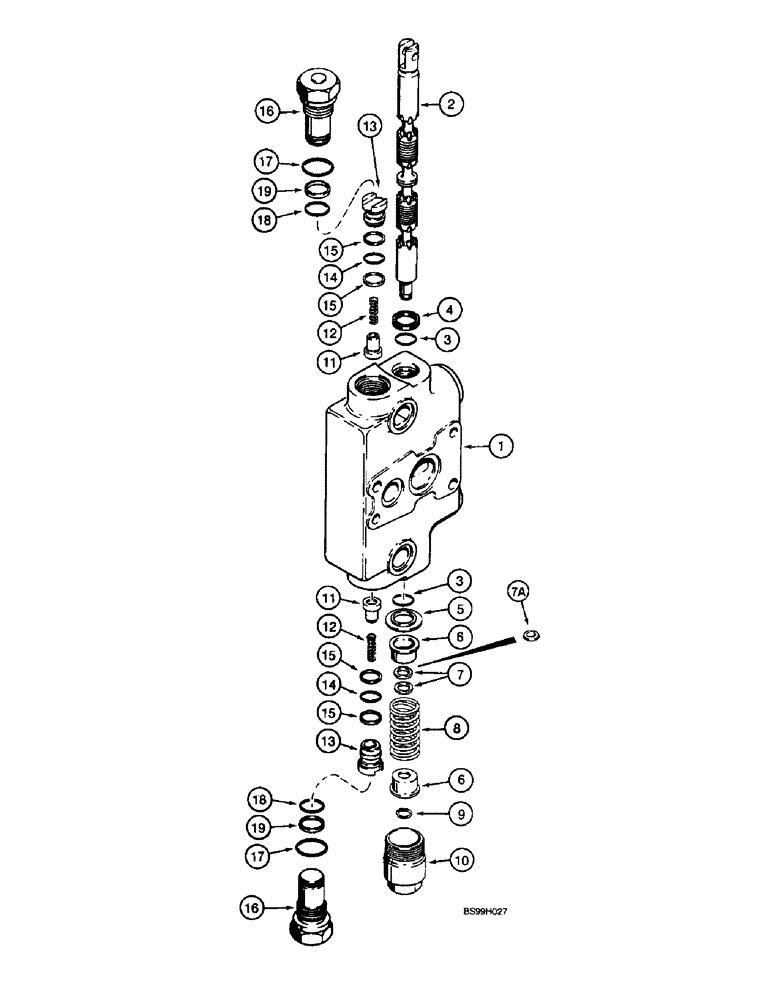

Запчасти Case 590SL (9-06) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
144324A4
HYD VALVE SECTION
SECTION ASSEMBLY - dipper extension, Includes: Ref. 1 - 19
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - dipper extension
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - dipper extension
1шт.
3
1994608C1
O-RING,0.737" ID x 0.943" OD x 0.103"
- spool
2шт.
Part of Seal Kit, P/N 1346105C2
1шт.
4
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
- oil, spool
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
5
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
- O-ring
1шт.
6
G33075
RETAINER,12.2mm ID, 27.9mm OD
SEAT - centering spring
2шт.
7
G106410
SPACER
- spool, 1/16 inch thick, if used
2шт.
7a
332753A1
SPACER
- spool, 1/8 inch thick, if used
1шт.
8
1994596C1
SPRING
- centering, purple, 2-15/16 inch free length, spool
1шт.
9
100-1647
SNAP RING,#47, Ext
Ring, Snap, , Spool end #47, Ext
1шт.
10
G33080
CAP
- centering spring, spool end
1шт.
11
1343777C1
VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L
POPPET - hollow poppet pin with orifice, load check
1шт.
12
1346175C1
SPRING,Compression, 6.6mm OD x 21.93mm L
- load check
1шт.
13
1343708C1
PLUG
- load check
1шт.
14
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
15
G103862
BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk
- backup, plug O-ring
2шт.
Part of Seal Kit, P/N 1346105C2
1шт.
G33122
PLUG,ORB
ASSEMBLY - relief, Includes: Ref. 16 - 19
2шт.
16
NSS
NOT SOLD SEPARAT
PLUG - relief
1шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
18
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Plug -018, 90 Duro, .739" ID x .070" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
19
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
- backup, small O-ring
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
Выбрано товаров: 31
