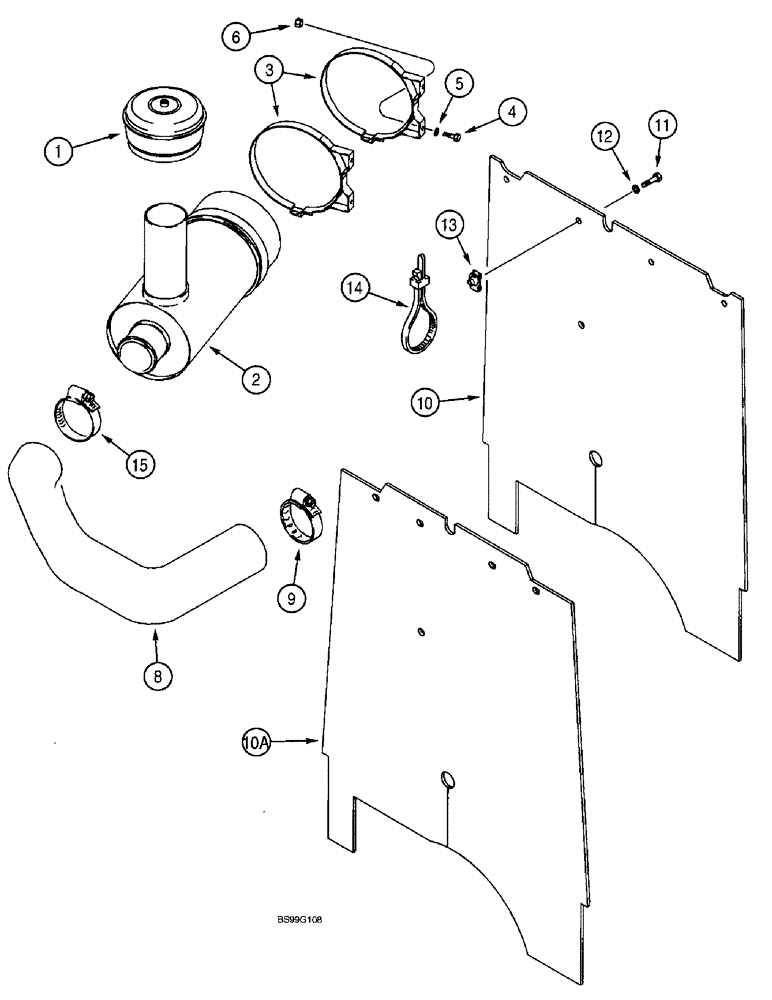

Запчасти Case 590SL (2-06) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

228120A1

PRECLEANER

ASSEMBLY - air cleaner, parts list figure 2-8

1шт.

2

293571A1

AIR CLEANER

CLEANER ASSEMBLY - air, engine, parts list figure 2-8

1шт.

3

70973

BRACKET

BAND - air cleaner mounting

2шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

223944A1

INTAKE AIR HOSE,76.20 mm ID, SAE J200 or SAE J200

Air Cleaner to Engine 76.20 mm ID, SAE J200 or SAE J200

1шт.

9

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

2шт.

10

275464A1

CURTAIN

PAD - heat and noise reduction, if used

1шт.

10a

330267A1

CURTAIN

PAD - heat and noise reduction, if used

1шт.

11

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

- hex, self-locking, 8 - 1.25 x 25 mm, class 10.9

4шт.

13

833-40008

SPRING NUT,M8, U

- U-type, 8 mm - 1.25

4шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, barrier curtain

2шт.

15

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
