Запчасти Case 590SL (9-03) - BACKHOE CONTROL VALVE, LEFT-HAND AND RIGHT-HAND STABILIZER SECTIONS (08) - HYDRAULICS

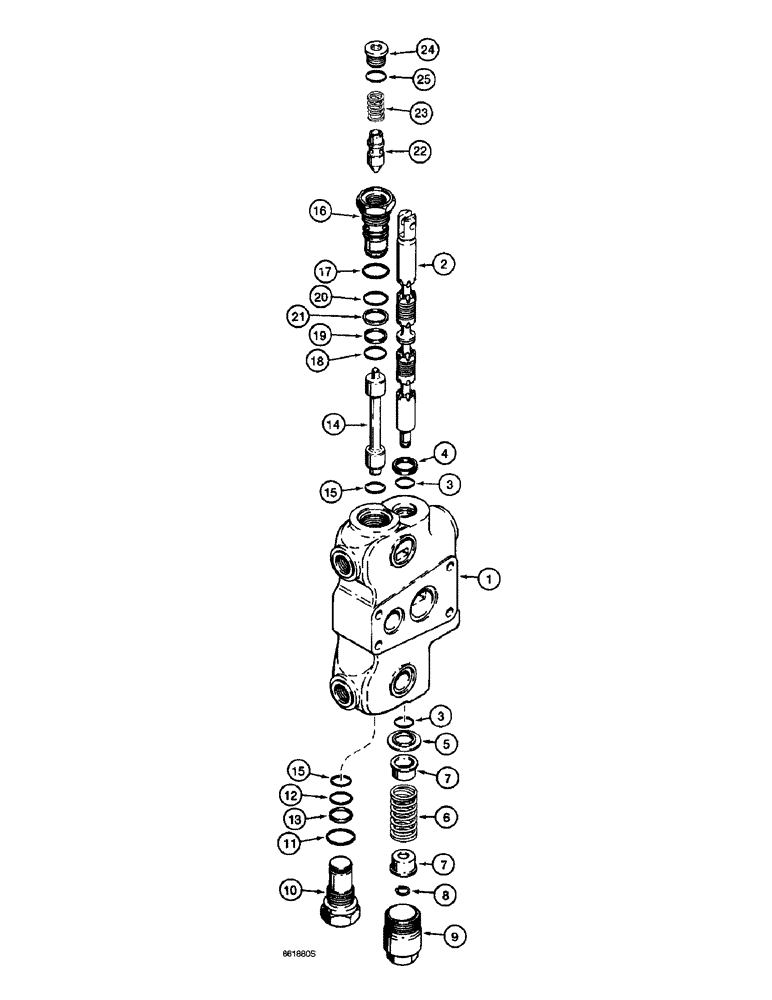

Схема запчастей Case 590SL - (9-03) - BACKHOE CONTROL VALVE, LEFT-HAND AND RIGHT-HAND STABILIZER SECTIONS (08) - HYDRAULICS
18
5
7
12
15
11
14
24
23
7
8
9
21
3
3
6
20
22
17
1
15
2
16
10
18
4
25
19

Артикул

Название

Примечание

Количество

253989A2

HYD VALVE SECTION

SECTION ASSEMBLY - left-hand and right-hand stabilizer, with lock check, if used, Includes: Ref. 1 - 25

2шт.

253989A3

VALVE SECTION

SECTION ASSEMBLY - left-hand and right-hand stabilizer, with lock check, if used, Includes: Ref. 1 - 25

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - left-hand and right-hand stabilizer sections

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand and right-hand stabilizer sections

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346106C1

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end #47, Ext

1шт.

9

G33080

CAP

- centering spring, spool end

1шт.

G33122

PLUG,ORB

ASSEMBLY - relief, includes relief plug o-rings

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

13

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring

1шт.

14

1986754C1

SPOOL

- shuttle, lock check

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Shuttle spool -018, 90 Duro, .739" ID x .070" Thk

2шт.

Part of Seal Kit, P/N 1346106C1

1шт.

G109627

PLUG

ASSEMBLY - lock check, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - lock check body

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat lock check end -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

20

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Seat, center -019, 90 Duro, .801" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

21

G110468

RING

- backup, center O-ring

1шт.

Part of Seal Kit, P/N 1346106C1

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - lock check

1шт.

23

G109630

SPRING

- lock check

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 25 Hex Soc, 3/4"-16 ORB

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1346106C1

SEAL KIT

KIT - seal, includes Ref. 3, 4, 11, 12, 15, 17, and 18 - 21, plus additional o-rings not required for this application

1шт.
