Запчасти Case 590SL (8-98) - BACKHOE CONTROL VALVE, BUCKET SECTION (08) - HYDRAULICS

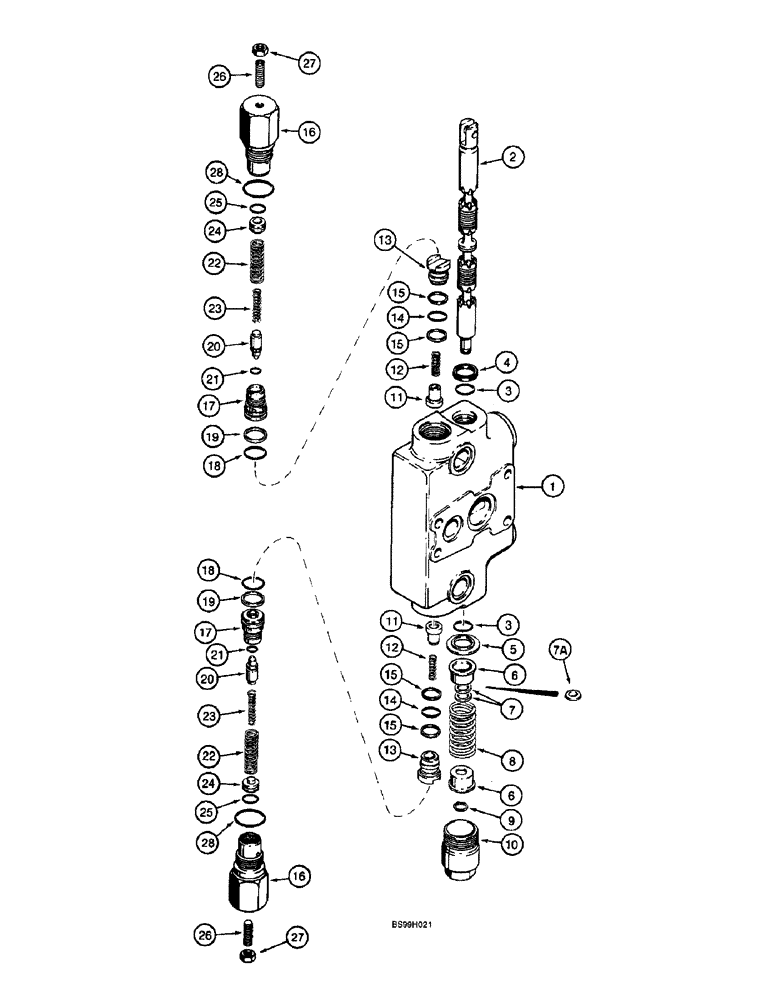

Схема запчастей Case 590SL - (8-98) - BACKHOE CONTROL VALVE, BUCKET SECTION (08) - HYDRAULICS
2
20
19
25
21
27
13
17
15
3
3
18
8
27
6
23
22
28
14
15
11
15
6
25
9
16
24
18
1
16
13
28
12
4
12
15
10
26
17
22
23
21
11
7
26
5
7a
14
24
20
19

Артикул

Название

Примечание

Количество

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, with circuit relief valves, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- spool, 1/16 inch

2шт.

7a

332753A1

SPACER

- spool, 1/8 inch thick, if used

1шт.

8

1994596C1

SPRING

- centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end #47, Ext

1шт.

10

G33080

CAP

- centering spring, spool end

1шт.

1346219C3

VALVE, CHECK

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 11 - 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

13

1343708C1

PLUG

- load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

129861A1

VALVE

ASSEMBLY - circuit relief, bucket section, used in production, order G110077 kit for service, Includes: Ref. 16 - 28

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 1/2 ID x 1/16 inch wide

1шт.

26

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

1346105C2

SEAL KIT

KIT - seal, includes Ref. 3, 4, 14, 15, 18, 19 and 28

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

G110077

KIT

- service, for 129861A1 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve (Ref. 16-28) which is the same as 129861A1 except with a different pressure setting, Includes P/N 129861A1

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.
