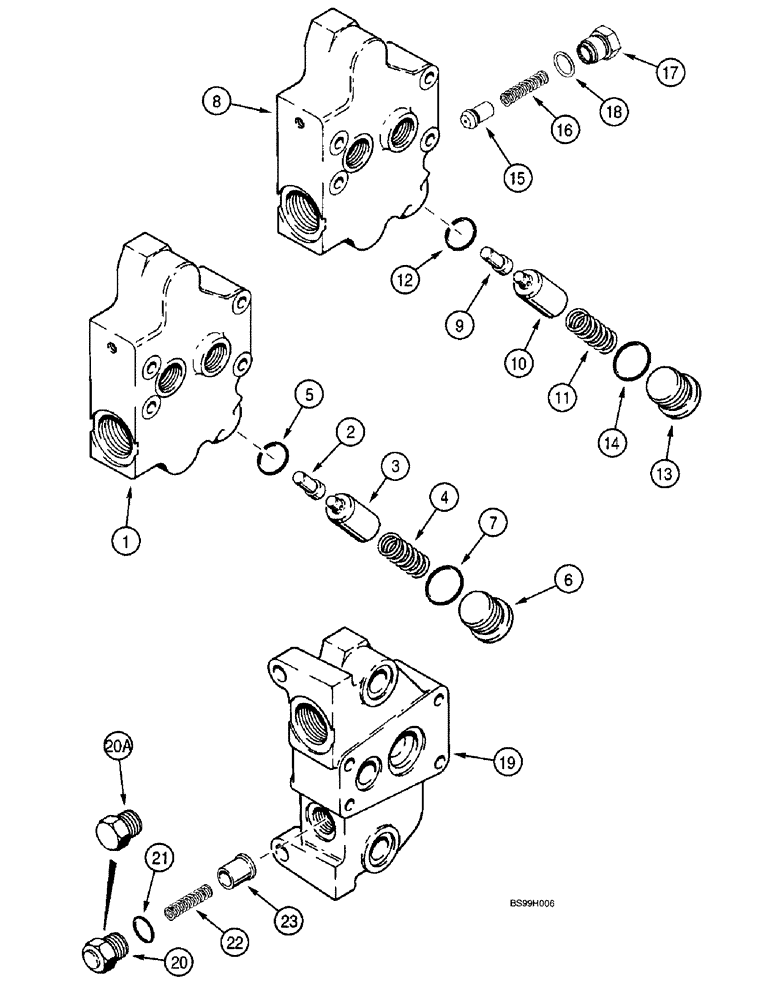

Запчасти Case 590SL (8-96) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS, OUTLET SECTION (08) - HYDRAULICS

113248A2

HYD VALVE SECTION

SECTION ASSEMBLY - outlet, with hex socket head plug, no longer available, order 113248A3, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

2

G108902

PISTON

- regeneration sensing, no longer available, order 328418A1 kit

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration, no longer available, order 328418A1 kit

1шт.

4

G33112

SPRING

- regeneration spool, no longer available, order 328418A1 kit

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 7

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

113248A3

HYD VALVE SECTION

SECTION ASSEMBLY - outlet, with hex plug, without check valve, if used, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - section bosy

1шт.

2

321735A1

PISTON

- regeneration sensing

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

3

321350A1

SPOOL

- regeneration

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

4

327148A1

SPRING

- regeneration spool

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

6

327150A1

PLUG

- hex head

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

327867A1

HYD VALVE SECTION

SECTION ASSEMBLY- outlet, with hex plug and with check valve, if used, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

9

321735A1

PISTON

- regeneration sensing

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

10

321350A1

SPOOL

- regeneration

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

11

327148A1

SPRING

- regeneration spool

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

12

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

365750A1

PLUG

ASSEMBLY - regeneration, Includes: Ref. 13 and 14

1шт.

13

327150A1

PLUG

- hex head

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

Part of Regeneration Kit, P/N 328418A1

1шт.

15

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

POPPET - check valve

1шт.

16

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve

1шт.

17

293787A1

PLUG,ORB

- hex, check valve, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, inlet section

1шт.

1346221C3

VALVE

ASSEMBLY - anticavitation (order Ref. 9 - 12), Replaces 1346221C2, Includes: Ref. 20 - 23, inlet section

1шт.

20

G34937

PLUG

- check valve, 1346221C2 valve, raised head, inlet section

1шт.

20a

332473A1

PLUG,Hex, 7/8" - 14

- check valve, 1346221C3 valve, smooth head, inlet section

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Inlet section

1шт.

22

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve, inlet section

1шт.

23

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - check valve, inlet section

1шт.

328418A1

PACKAGE

KIT - regeneration, service update, includes Ref. 2 - 7, and 9 - 14, inlet section

1шт.
