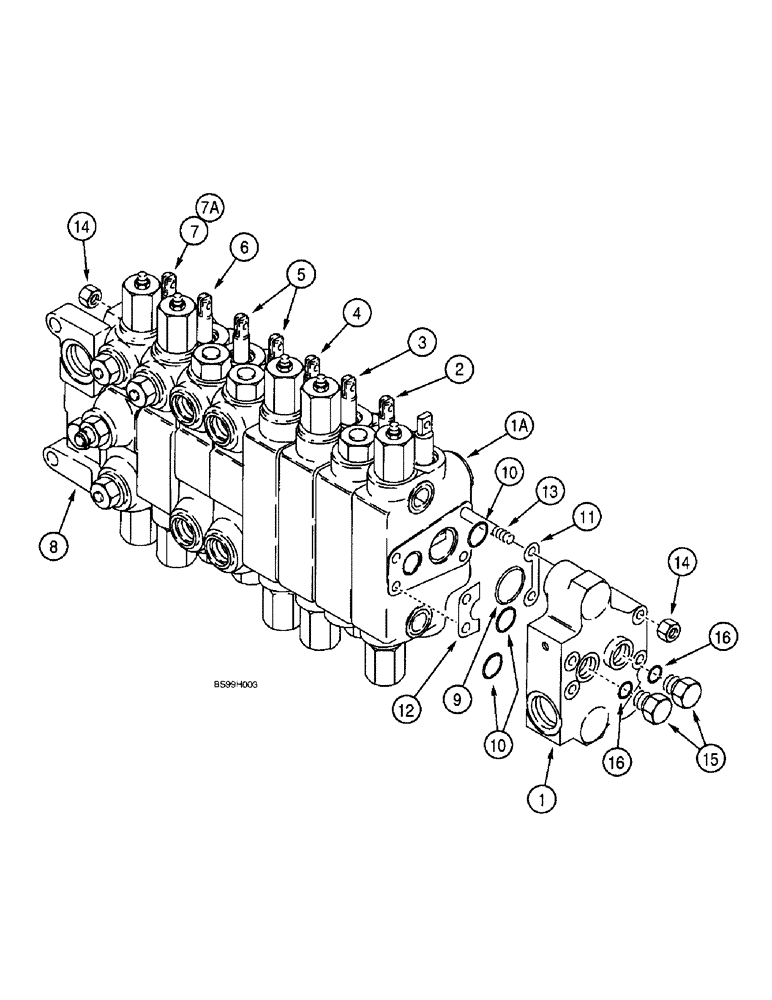

Запчасти Case 590SL (8-94) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, WITH AUX. HYD. (08) - HYDRAULICS

243142A3

DISTRIBUTOR

VALVE ASSY, backhoe control, 8 spool, foot swing, Replaces 243142A2; boom & swing section spool eyes are not color coded; w/out check valve in outlet section; w/male spool eye in options section; no longer available; order 333580A1, Includes: Ref. 1 - 16

1шт.

243143A3

DISTRIBUTOR

VALVE ASSY, backhoe control, 8 spool, foot swing, Replaces 243143A2; boom & swing section spool eyes are not color coded; w/out check valve in outlet section; w/male spool eye in options section; no longer available; order 333581A1, Includes: Ref. 1 - 16

1шт.

1

113248A3

HYD VALVE SECTION

SECTION ASSEMBLY - outlet, with hex plug, without check valve, Replaces 113248A2 section with hex socket head plug; parts list figure 8-96

1шт.

1a

294198A1

HYD VALVE SECTION

SECTION ASSEMBLY - options, with male spool eye, auxiliary hydraulics, parts list figure 8-114

1шт.

2

144324A4

HYD VALVE SECTION

SECTION ASSEMBLY - dipper extension, parts list figure 8-112

1шт.

3

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, parts list figure 8-98

1шт.

4

136610A5

HYD VALVE SECTION

SECTION ASSEMBLY - dipper, parts list figure 8-100

1шт.

5

253989A2

HYD VALVE SECTION

SECTION ASSEMBLY - stabilizer, left-hand and right-hand, parts list figure 8-102

2шт.

6

144321A5

HYD VALVE SECTION

SECTION ASSEMBLY - boom, parts list figures 8-104 and 8-106

1шт.

7

241088A3

HYD VALVE SECTION

SECTION ASSEMBLY - swing, foot swing control valve, parts list figures 8-108 and 8-110

1шт.

7a

243145A3

HYD VALVE SECTION

SECTION ASSEMBLY - swing, hand swing control valve, parts list figures 8- 108 and 8-110

1шт.

8

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, parts list figure 8-97A

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

9шт.

Part of Seal Kit, P/N 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

27шт.

Part of Seal Kit, P/N 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

9шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

9шт.

13

229684A1

STUD

- tie

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch o-ring boss

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Includes: Ref. 16

1шт.

1346107C2

SEAL KIT

KIT - seal, includes Ref. 9 and 10, plus additional o-rings not required for this application

1шт.
