Запчасти Case 590SL (8-92) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, W/O AUX. HYD. (08) - HYDRAULICS

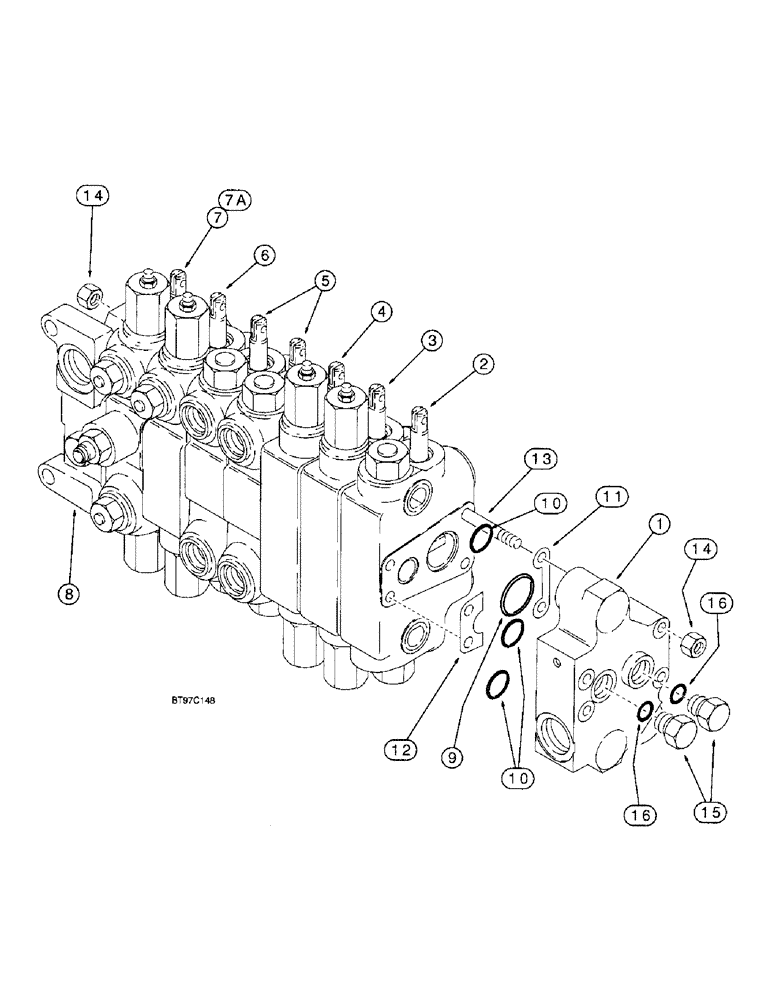

Схема запчастей Case 590SL - (8-92) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, W/O AUX. HYD. (08) - HYDRAULICS
11
5
12
7
1
6
10
8
3
14
9
10
14
16
4
2
15
13
7a
16

Артикул

Название

Примечание

Количество

243137A2

VALVE

ASSEMBLY - backhoe control, 7 spool, foot swing, Replaces 243137A1; boom and swing section spool eyes are not color coded; without check valve in outlet section; if used, Includes: Ref. 1 - 16

1шт.

243138A2

DISTRIBUTOR

VALVE ASSEMBLY - backhoe control, 7 spool, foot swing, Replaces 243138A1; boom and swing section spool eyes are not color coded; without check valve in outlet section; if used, Includes: Ref. 1 - 16

1шт.

1

113248A3

HYD VALVE SECTION

SECTION ASSEMBLY - outlet, with hex plug, without check valve, Replaces 113248A2 section with hex socket head plug; parts list figure 8-96

1шт.

2

144324A4

HYD VALVE SECTION

SECTION ASSEMBLY - dipper extension, parts list figure 8-112

1шт.

3

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, parts list figure 8-98

1шт.

4

136610A5

HYD VALVE SECTION

SSECTION ASSEMBLY - dipper, parts list figure 8-100

1шт.

5

253989A2

HYD VALVE SECTION

SAECTION ASSEMBLY - stabilizer, left-hand and right-hand, parts list figure 8-102

2шт.

6

144321A5

HYD VALVE SECTION

SECTION ASSEMBLY - boom, parts list figures 8-104 and 8-106

1шт.

7

241088A3

HYD VALVE SECTION

SECTION ASSEMBLY - swing, foot swing control valve, parts list figures 8-108 and 8-110

1шт.

7a

243145A3

HYD VALVE SECTION

SECTION ASSEMBLY - swing, hand swing control valve, parts list figures 8-108 and 8-110

1шт.

8

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, parts list figure 8-97A

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

8шт.

Part of Seal Kit, P/N 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

24шт.

Part of Seal Kit, P/N 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

13

G108899

ROD

- tie, 3/8 NC x 18-15/16 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch o-ring boss, Incl. Ref. 16

8шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

1346107C2

SEAL KIT

KIT - seal, includes Ref. 9 and 10, plus additional o-rings not required for this application

1шт.

Выбрано товаров: 22
