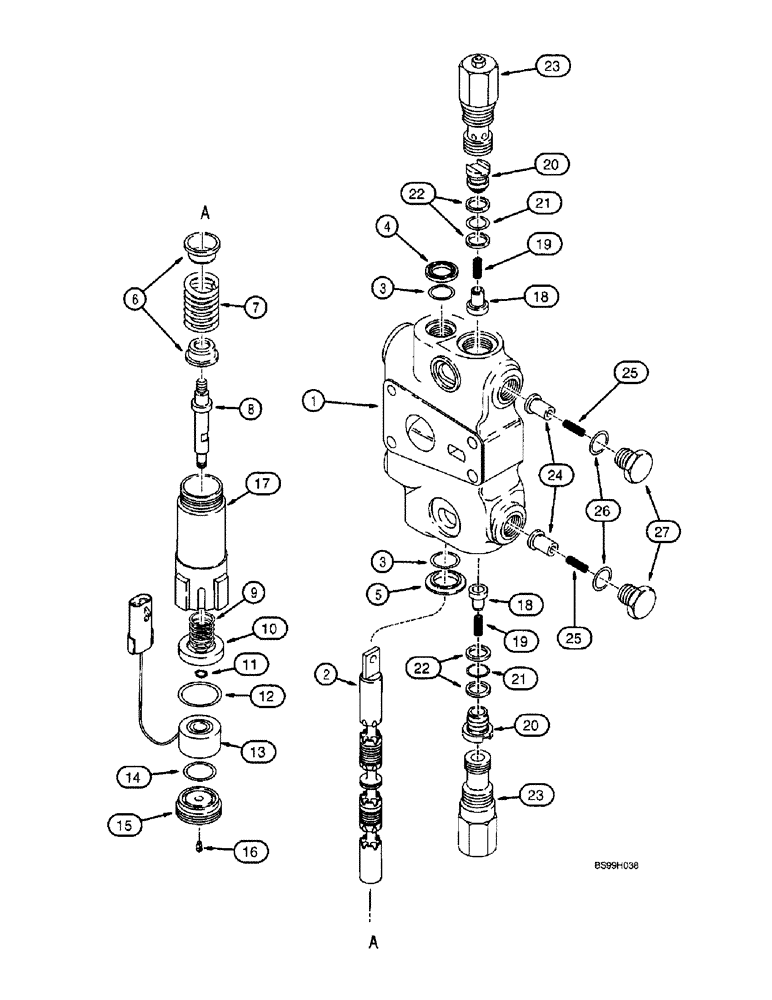

Запчасти Case 590SL (8-78) - LOADER CONTROL VALVE, BUCKET SECTION - WITH MAGNETIC DETENT, AND CIRCUIT RELIEF VALVE (08) - HYDRAULICS

302964A1

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, with magnetic detent and circuit relief valves, male type spool eye, 302965A1 or 302966A1 valve, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

302326A1

SPRING,Compression, 28.067mm OD x 72.41mm L

- centering, spool

1шт.

8

307214A1

ROD ASSY.

SHAFT - magnetic detent, with Loctite

1шт.

9

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

- detent washer

1шт.

10

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

- detent

1шт.

11

100-1125

SNAP RING,#25, Ext

Ring, Snap, , washer #25, Ext

1шт.

12

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

13

120148A3

ELECTROMAGNET

MAGNET - with connector, Replaces 120148A2

1шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

15

122330A1

PLUG,9/16" - 18

- magnetic detent

1шт.

16

G107780

VALVE, CHECK

PLUG - check, magnetic detent

1шт.

17

113787A3

BODY

HOUSING - magnetic detent

1шт.

1346219C3

VALVE, CHECK

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 18 - 22

2шт.

18

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice

1шт.

19

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

20

1343708C1

PLUG

- load check

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

22

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

23

G109391

VALVE

ASSEMBLY - circuit relief, 3200 psi, one piece cap, used in production, parts list figure 8-86, order G109449 circuit relief valve kit for service, see figure 8-86 for kit, Includes: Ref. 24 - 27

2шт.

129735A2

VALVE

ASSEMBLY - anticavitation, Includes: Ref. 24 - 27

2шт.

24

129698A1

VALVE POPPET

POPPET - anticavitation

1шт.

25

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

129699A1

PLUG

- anticavitation

1шт.

1346105C2

SEAL KIT

KIT - seal, includes Ref. 3, 4, 21 and 22

1шт.
