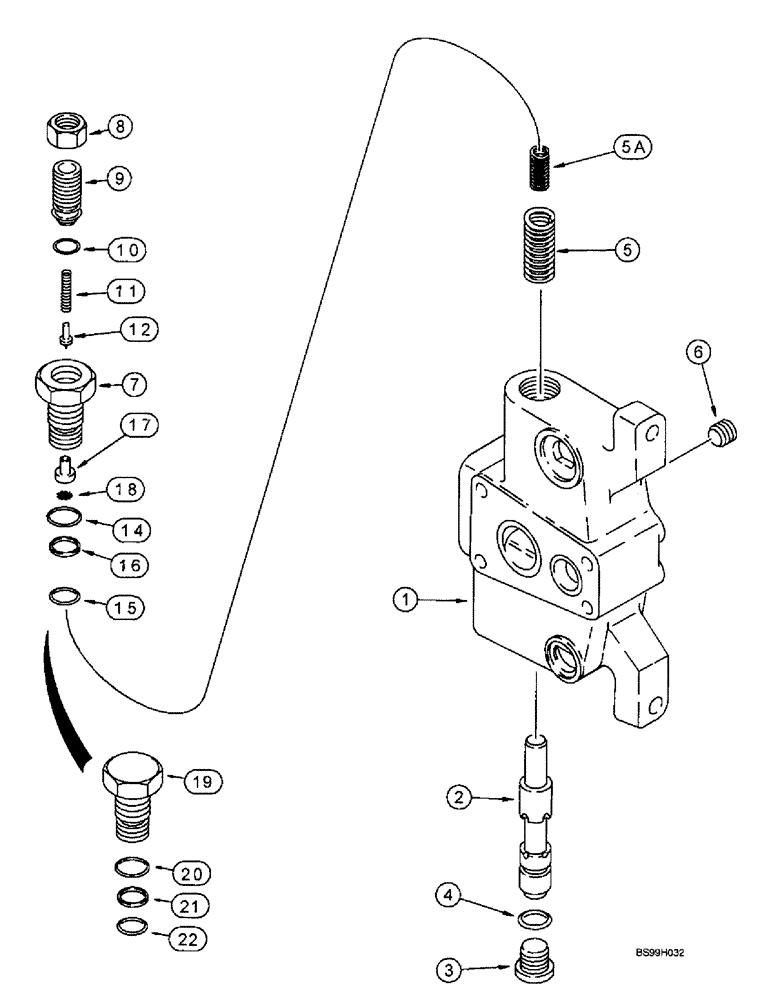

Запчасти Case 590SL (8-76) - LOADER CONTROL VALVE, INLET SECTION - WITH STEERING RELIEF VALVE (08) - HYDRAULICS

121736A2

VALVE SECTION

SECTION ASSEMBLY - inlet, with pilot relief valve, includes 1 - 18, used in 302965A1, 302966A1, 328495A1 or 328496A1 valve, Includes: Ref. 1 - 22

1шт.

130060A2 pilot relief valve is required on units equipped with hand held auxiliary hydraulics.

1шт.

364148A1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, with pilot relief plug, includes 1 - 6 and 19 - 22, used in 328495A2 or 328496A2 valve, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - inlet section

1шт.

3

86625138

PLUG,7/18" - 14

Includes Ref. 4 Hex Soc, 7/8"-14 ORB

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

122140A1

SPRING,Compression, 21mm OD x 55.18mm L

- outer

1шт.

5a

122141A1

SPRING,Compression, 12.75mm OD x 50.82mm L

- inner

1шт.

6

114903A1

PLUG

- orifice, steering port

1шт.

130060A2

PILOT VALVE

VALVE ASSEMBLY - relief, pilot, with screen filter (Ref. 18), 121736A2, Includes: Ref. 7 - 18

1шт.

130060A2 pilot relief valve is required on units equipped with hand held auxiliary hydraulics.

1шт.

7

G108866

HOUSING,1-1/16" - 12

BODY - pilot relief, valve

1шт.

8

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

1шт.

9

G108867

PLUG

- adjusting, relief valve

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

130059A1

SPRING

- pilot relief

1шт.

12

G108556

VALVE POPPET

POPPET - relief, pilot

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Housing -018, 90 Duro, .739" ID x .070" Thk

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small o-ring, housing

1шт.

17

196095A1

SEAT

- poppet, relief valve, used with Ref. 18 screen filter

1шт.

18

196096A1

SCREEN

- relief valve, filter

1шт.

251714A1

PLUG

ASSEMBLY - pilot relief, 364148A1 section, Includes: Ref. 19 - 22

1шт.

19

248512A1

PLUG

- pilot relief

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
