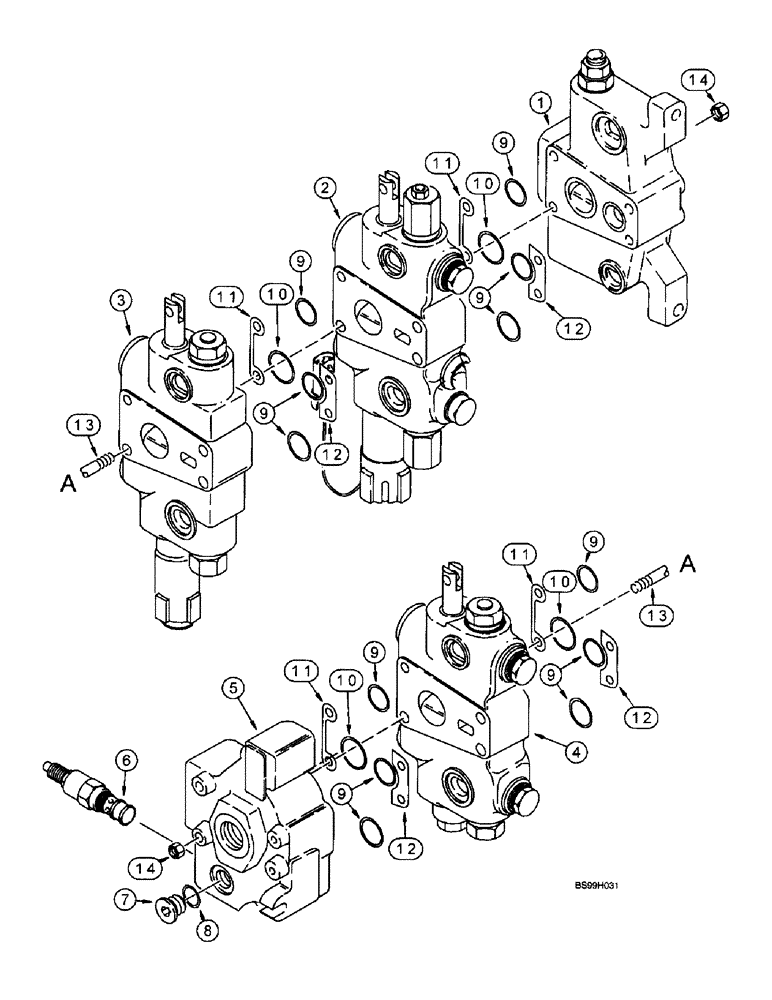

Запчасти Case 590SL (8-75A) - LOADER CONTROL VALVE, THREE SPOOL, (WITH FEMALE CLEVIS TYPE SPOOL EYES) (08) - HYDRAULICS

328495A1

DISTRIBUTOR

VALVE ASSEMBLY - loader control, three-spool, with female clevis type spool eyes, with pilot relief valve in inlet section, no longer available, order 328495A2 valve, Includes: Ref. 1 - 13

1шт.

328495A2

VALVE

ASSEMBLY - loader control, three-spool, with female clevis type spool eyes, with pilot relief plug in inlet section, Includes: Ref. 1 - 13

1шт.

1

121736A2

VALVE SECTION

SECTION ASSEMBLY - inlet, with pilot relief vqlve, 328495A1 valve, parts list figure 8-76

1шт.

1

364148A1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, with pilot relief plug, 328495A2 valve, not shown, parts list figure 8-76

1шт.

2

328443A1

VALVE SECTION

SECTION ASSEMBLY - bucket, with magnetic detent and circuit relief valve, parts list figure 8-79A

1шт.

3

328444A1

VALVE SECTION

SECTION ASSEMBLY - lift, with amnual detent, parts list figure 8-81A

1шт.

4

332754A1

HYD VALVE SECTION

SECTION ASSEMBLY - clam, all valves, parts list figure 8-85A

1шт.

5

132004A2

HYD VALVE SECTION

SECTION ASSEMBLY - outlet, parts list figure 8-82

1шт.

6

129842A2

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, component parts are not serviced separately, for service of external seals order G110098 seal kit

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

Outlet section diagnostic port, Incl Ref 8 Hex Soc, 7/16"-20 ORB

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

12шт.

Part of Seal Kit, P/N 1346108C2

1шт.

10

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

4шт.

Part of Seal Kit, P/N 1346108C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

4шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

4шт.

13

G108805

STUD

- tie, 3/8 NC x 11-3/4 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

KIT - seal, includes Ref. 9 and 10, plus additional o-rings not required for this application

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
