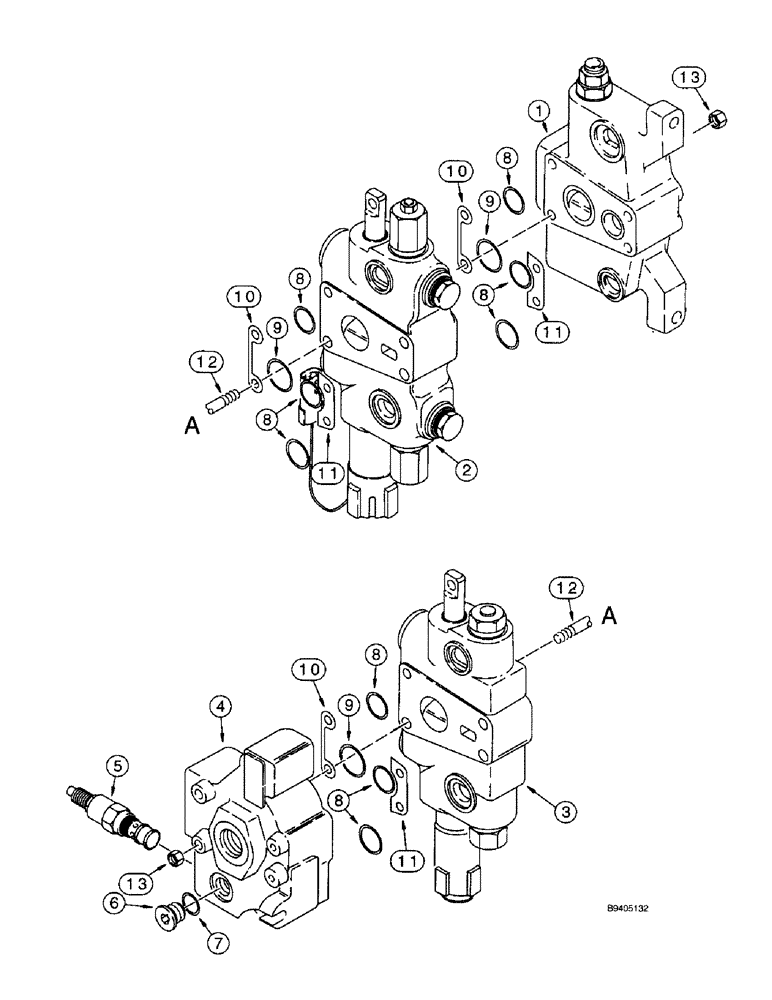

Запчасти Case 590SL (8-72) - LOADER CONTROL VALVE, TWO SPOOL, (WITH MALE TYPE SPOOL EYES) (08) - HYDRAULICS

302965A1

DISTRIBUTOR

VALVE ASSEMBLY - control, loader, two spool, with male type spool eyes, no longer available, order 328496A1 valve, see figure 8-73A, Includes: Ref. 1 - 13

1шт.

1

121736A2

VALVE SECTION

SECTION ASSEMBLY - inlet, with pilot relief valve, parts list figure 8-76

1шт.

2

302964A1

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, with magnetic detent and circuit relief valve, parts list figure 8-78

1шт.

3

113793A4

VALVE SECTION

SECTION ASSEMBLY - lift, with manual detent, parts list figure 8-80

1шт.

4

132004A2

HYD VALVE SECTION

SECTION ASSEMBLY - valve, outlet, parts list figure 8-82

1шт.

5

129842A2

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, component parts are not serviced separately, for service of external seals order G110098 seal kit

1шт.

6

278548

PLUG,Hex, 7/16"-20 ORB

Outlet section diagnostic port, Incl Ref 7 Hex Soc, 7/16"-20 ORB

1шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

9шт.

Part of Seal Kit, P/N 1346108C2

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

3шт.

Part of Seal Kit, P/N 1346108C2

1шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

3шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

3шт.

12

G108870

STUD,246.2mm L

- tie, 3/8 NC x 9-3/4 inch

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

KIT - seal, includes Ref. 8 and 8 plus additional o-rings not required for this application

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
