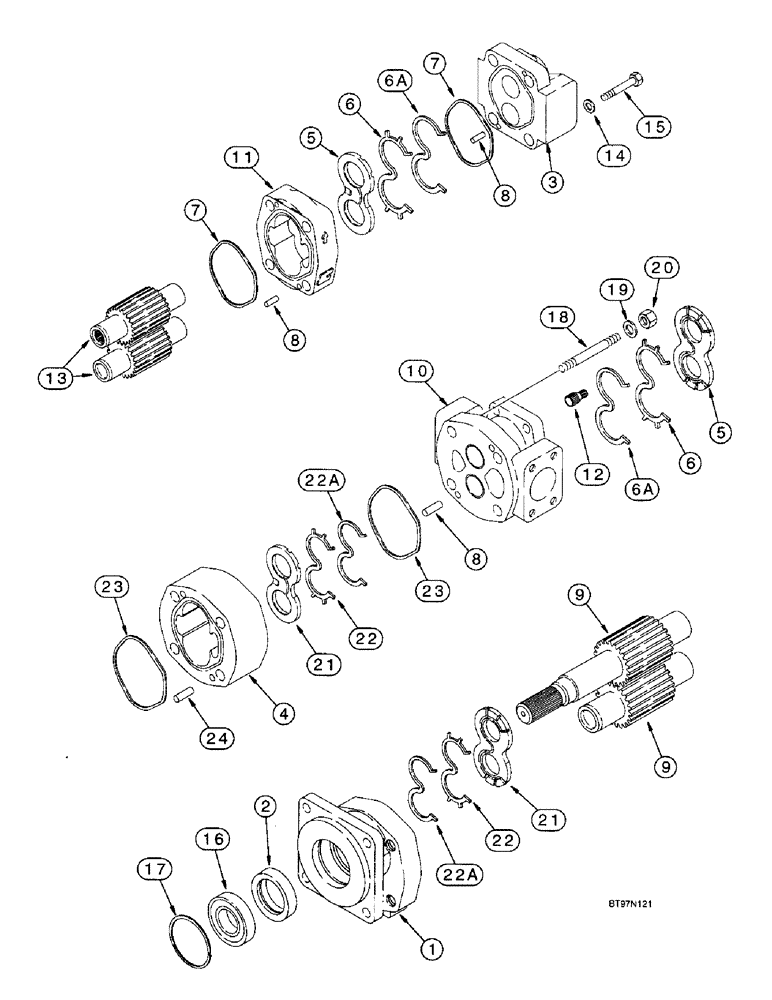

Запчасти Case 590SL (8-70) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

257955A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - No Longer Available, Order 87435827 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

2

L32318

SEAL

- shaft

1шт.

Part of Seal Kit, P/N 293924A1

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - gear, shaft end

1шт.

5

111594A1

LARGE PLATE

PLATE - thrust, closed end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

6

293926A1

SEAL

- used with 293925A1 backup seal

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

6a

293925A1

SEAL

- backup, used with 293926A1

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

7

111596A1

SEAL

square ring, 3-1/4 ID x 3/32 inch wide, housing, closed end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

8

111597A1

ELEC. TERMINAL PIN

PIN - dowel, 1/4 x 1/16 inch, closed end, gear housing

4шт.

9

NSS

NOT SOLD SEPARAT

SET - gear, shaft end, 17 teeth, 1-1/8 inch diameter shaft spline

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - center, with ports

1шт.

11

111585A1

HOUSING

- gear, closed end, pump

1шт.

12

111593A1

SHAFT

- connecting

1шт.

13

NSS

NOT SOLD SEPARAT

SET - gear, closed end

1шт.

14

111588A1

WASHER

- flat, special, 17/32 x 15/16 x 3/16 inch

4шт.

15

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

16

S88754

BALL BEARING

BEARING - ball, sealed

1шт.

17

S88756

SNAP RING,#283, 3.009", Int, Spiral

RING - snap, retaining, spring lock

1шт.

18

111583A1

STUD

- pump

4шт.

19

19-488

WASHER

- flat

4шт.

20

429-1010

NUT,5/8"-11, G8

4шт.

21

111589A1

LARGE PLATE

PLATE - thrust, shaft end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

22

293927A1

SEAL

- used with 293927A1 backup seal

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

22a

293928A1

SEAL

- backup, used with 293927A1

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

23

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

- square ring, 4-31/64 ID x 1/8 inch wide, shaft end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

24

W16323

DOWEL

PIN - dowel, shaft end

4шт.

293924A1

SEAL KIT

KIT - seal, includes Ref. 2, 5, 6, 6A, 7, and 21 - 23

1шт.
