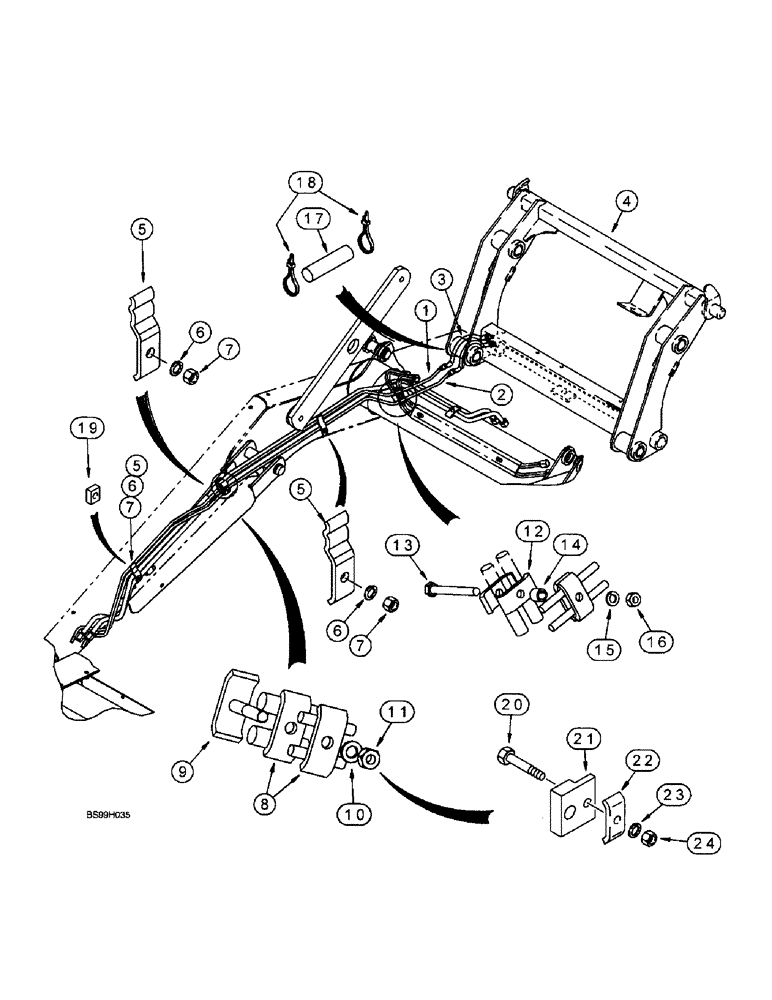

Запчасти Case 590SL (8-68) - LOADER HYDRAULIC TOOL QUICK COUPLER, AT LOADER LIFT FRAME (08) - HYDRAULICS

1

308255A1

TUBE,9.5 mm OD, 1640, 552 mm Length

- loader lift frame to tool quick coupler frame, Replaces 304572A1

1шт.

2

308254A1

TUBE,9.5 mm OD, 1651, 526 mm Length

- loader lift frame to tool quick coupler frame, Replaces 304574A1

1шт.

3

300996A3

HYDRAULIC HOSE,1/4" ID x 772mm L

HOSE, HYDRAULIC, 872 mm (34-11/32") long, at tool quick coupler frame, Replaces 300996A2, 812 mm long hose

2шт.

4

REF

INSTRUCTION

COUPLER - quick, tool, loader, hydraulic, for complete assembly see parts list figure 9-20, order from Machinery Parts List, use standard loader bucket pins to mount coupler

1шт.

5

302820A1

CLAMP

- extension

1-3шт.

6

892-11010

LOCK WASHER,M10

1-3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1-3шт.

8

D138055

CLAMP

- tube, if used

2шт.

9

302821A1

CLAMP

- stud, if used

1шт.

10

892-11010

LOCK WASHER,M10

If used M10

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

D138055

CLAMP

- tube

4шт.

13

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

14

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- clamp, 381 mm (15 inch) long

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

17

307277A1

PROTECTIVE SLEEVE,36.87mm ID x 850mm L

- hose guard

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

19

303804A1

BLOCK

- spacer, if used

1шт.

Also uses loader bucket tube clamping, Ref. 19-23, figure 8-12, and 139235A1 right-hand bucket cylinder link and D121194 bucket position pointer, Ref. 13 and 6, figure 9-12.

1шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

1шт.

Also uses loader bucket tube clamping, Ref. 19-23, figure 8-12, and 139235A1 right-hand bucket cylinder link and D121194 bucket position pointer, Ref. 13 and 6, figure 9-12.

1шт.

21

303806A1

BLOCK

- spacer

1шт.

Also uses loader bucket tube clamping, Ref. 19-23, figure 8-12, and 139235A1 right-hand bucket cylinder link and D121194 bucket position pointer, Ref. 13 and 6, figure 9-12.

1шт.

22

D138055

CLAMP

- tube

1шт.

Also uses loader bucket tube clamping, Ref. 19-23, figure 8-12, and 139235A1 right-hand bucket cylinder link and D121194 bucket position pointer, Ref. 13 and 6, figure 9-12.

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

Also uses loader bucket tube clamping, Ref. 19-23, figure 8-12, and 139235A1 right-hand bucket cylinder link and D121194 bucket position pointer, Ref. 13 and 6, figure 9-12.

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

Also uses loader bucket tube clamping, Ref. 19-23, figure 8-12, and 139235A1 right-hand bucket cylinder link and D121194 bucket position pointer, Ref. 13 and 6, figure 9-12.

1шт.
