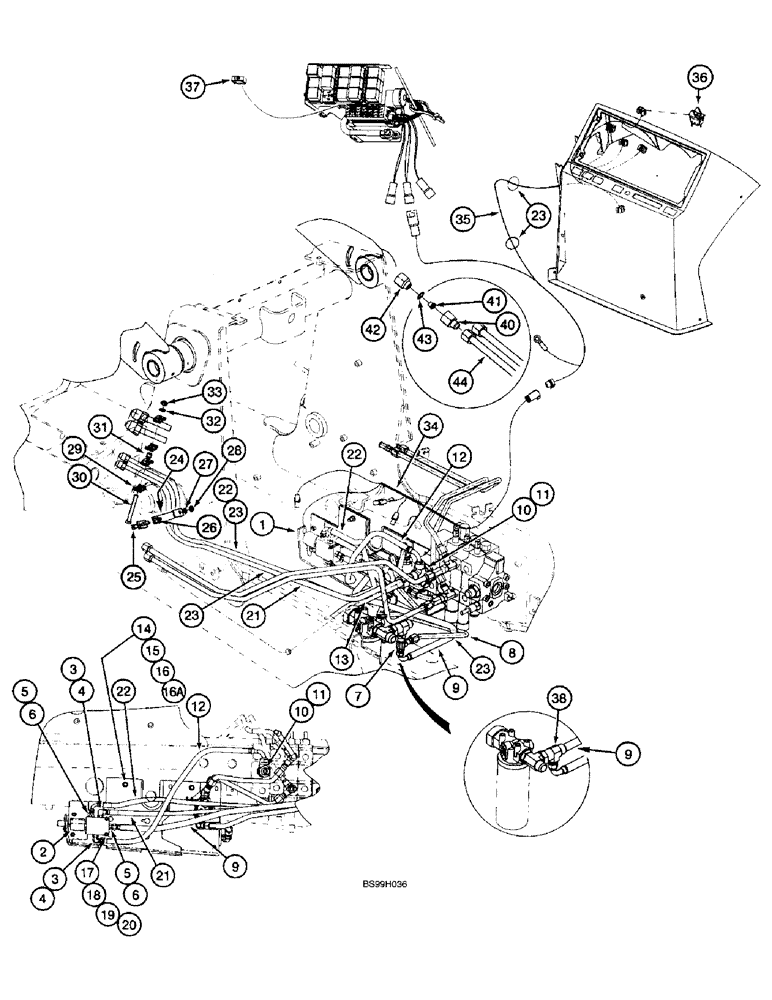

Запчасти Case 590SL (8-64) - LOADER HYDRAULIC TOOL QUICK COUPLER (08) - HYDRAULICS

1

259777A3

PLATE ASSY.

PLATE - mounting, solenoid valve

1шт.

2

277320A1

VALVE

ASSEMBLY - solenoid, four-way, two position, quick coupler, component parts notserviced separately

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. o-ring boss

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x o-ring boss

2шт.

7

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x adj. straight thread, used only on models with both ride control and hydraulic tool quick coupler

1шт.

8

293037A1

TUBE,15.88 mm OD, 485, 374 mm Length

- left-hand ride control solenoid valve to tee at filter, Replaces Ref. 13 on figure 8-60 on models with both ride control and hydraulic tool quick coupler

1шт.

9

292528A1

HOSE ASSY.

HOSE- 1220 mm, (48-1/32 inch) long, return, filter to quick coupler solenoid valve

1шт.

10

218-5577

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 7/8"-14

- 3/4-16 flare branch x 1-5/16-12 flare x adj. o-ring, at inlet section upper port of loader control valve

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

12

276962A1

HOSE ASSY.

HOSE - 810 mm (31-29/32 inch) long, quick coupler solenoid valve lower port to tee at inlet section of loader control valve

1шт.

13

370977A1

TUBE

- tee at loader valve inlet upper port to large pump section, Replaces 292436A1

1шт.

14

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

BOLT - carriage, 10 - 1.5 x 40 mm, if used

2шт.

14

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

BOLT - cariage, 10 - 1.5 x 50 mm, if used

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16a

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

- 11 x 40 x 10 mm thick

2шт.

17

711-6050

CARRIAGE BOLT,Sq Nk, M6 x 1 x 50mm, Cl 8.8

BOLT - carriage, 6 - 1.0 x 50 mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

301008A2

HOSE

- 2677 mm(105-13/32 inch) long, includes hose guard, (2) banded clamps and white tie strap, quick coupler solenoid valve to loader lift frame

1шт.

22

301009A2

HOSE

- 2677 mm (105-13/32 inch) long, includes hose guard and (2) banded clamps, quick coupler solenoid valve to loader lift frame

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

14шт.

24

D138055

CLAMP

- tube

1шт.

25

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm, Replaces 828-10060, 60 mm long bolt used on some models

1шт.

26

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- clamp

1шт.

27

892-11010

LOCK WASHER,M10

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

29

D138055

CLAMP

- tube

4шт.

30

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

- hex, 10 - 1.5 x 80 mm

1шт.

31

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- clamp, 381 mm (15 inch) long

1шт.

32

892-11010

LOCK WASHER,M10

1шт.

33

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

34

302803A2

HARNESS

- chassis options, connects to side console options harness, Replaces 302803A1

1шт.

35

296508A2

HARNESS

- side console options, connects to chassis options harness and fuse block

1шт.

36

275488A2

SWITCH

- rocker, yellow rocker and amber lens, quick coupler

1шт.

37

121413A1

FUSE,15A, Mini, Blue

1шт.

38

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

- 7/8-14 flare branch x 1-5/16-12 inch flare x swivel, models without ride control

1шт.

40

304424A1

HYD CONNECTOR,0.875" - 14 JIC x 0.875" - 14 ORB

CONNECTOR, HYD., Straight

1шт.

41

304890A1

RESTRICTOR

- check

1шт.

Install restrictor on inner most dump cylinder tube, connects to closed end of cylinder.

1шт.

42

309674A1

HYD CONNECTOR,0.875" - 14 ORB x 0.875" - 14 ORFS

ADAPTER - straight, 7/8-14 inch male x female

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

309673A1

TUBE,15.88 mm OD, 1474, 537 mm Length

- loader arm, bucket port A to closed end of right-hand bucket cylinder

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
