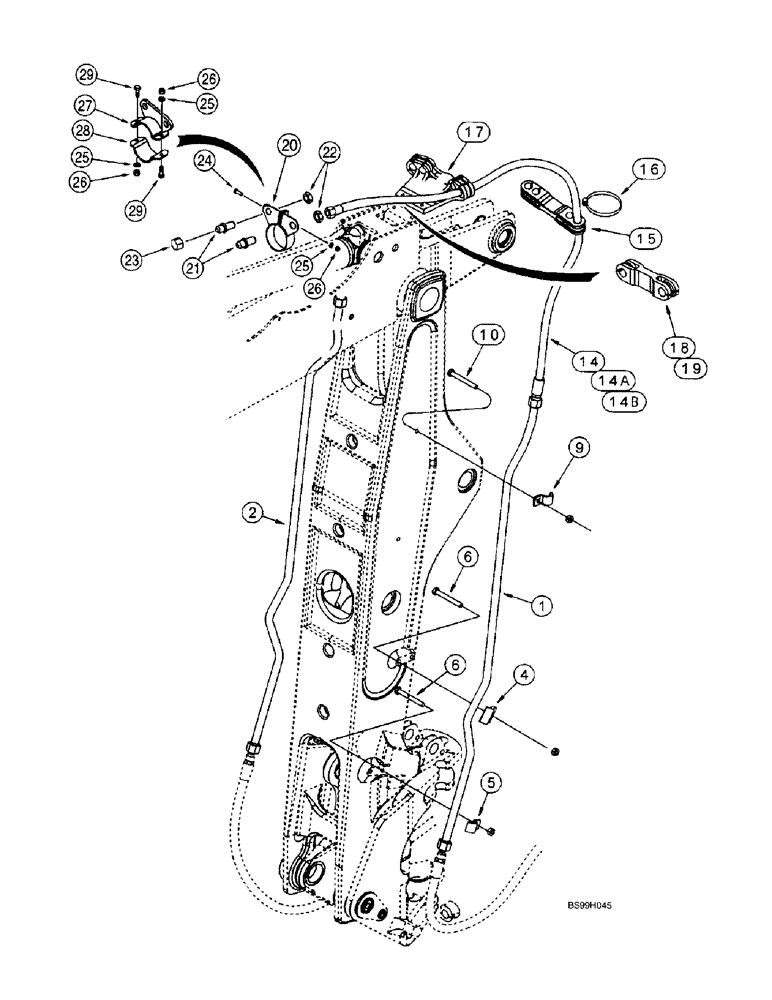

Запчасти Case 590SL (8-54) - BACKHOE AUXILIARY HYDRAULICS, AT BOOM AND DIPPER (08) - HYDRAULICS

1

280441A1

TUBE,25.4 mm OD, 1962, 243 mm Length

- on boom, right-hand side

1шт.

2

278748A1

TUBE,25.4 mm OD, 1962, 243 mm Length

- on boom, left-hand side

1шт.

4

253038A1

BRACKET

CLAMP - tube, uses existing nut

2шт.

5

255051A1

CLAMP,26mm ID, 13mm Bolt Hole, J Type

- tube, uses existing nut

2шт.

6

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm

4шт.

9

242459A1

SHIN

CLAMP - tube, uses existing nut

2шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

2шт.

14

243679A2

HYDRAULIC HOSE,19.05mm ID x 2665mm L

HOSE, HYDRAULIC, 2665 mm (104-15/16") long, Incl hose guard and (2) banded clamps, Models with extendable dipper, Replaces 243679A1, 2625 mm long hose

2шт.

14a

256210A2

HYDRAULIC HOSE,19.05mm ID x 1285mm L

HOSE, HYDRAULIC - 1285 mm (50-19/32") long, Incl hose guard and (2) banded clamps, Models without extendable dipper, Replaces 256210A1, 1325 mm long hose; for service order 317749A1, 1475 mm long hose

2шт.

14b

317749A1

HOSE ASSY.

HOSE - 1475 mm (58-3/32 inch) long, includes hose guard and (2) banded clamps, models without extendable dipper

2шт.

15

246158A1

CLAMP,27mm ID

SUPPORT - hose, models with extendable dipper

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

CLAMP - adj., 2-3/4 - 3-5/8 inch diameter, models with extendable dipper

4шт.

17

246151A1

SUPPORT

- hose, models with extendable dipper

1шт.

18

103670A1

CLAMP,27mm ID

CLAMP - rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj., 1-1/4 - 2-1/8 inch diameter

2шт.

20

243291A1

SPECIAL CLAMP

CLAMP - quick coupler, no longer available, order 314733A1 clamp and 314734A1 strap

1шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, If used Hex, M10 x 30, 8.8

1шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1-2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1-2шт.

27

314733A1

SPECIAL CLAMP

CLAMP - quick coupler

1шт.

28

314734A1

STRAP

- clamp

1шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

2шт.
