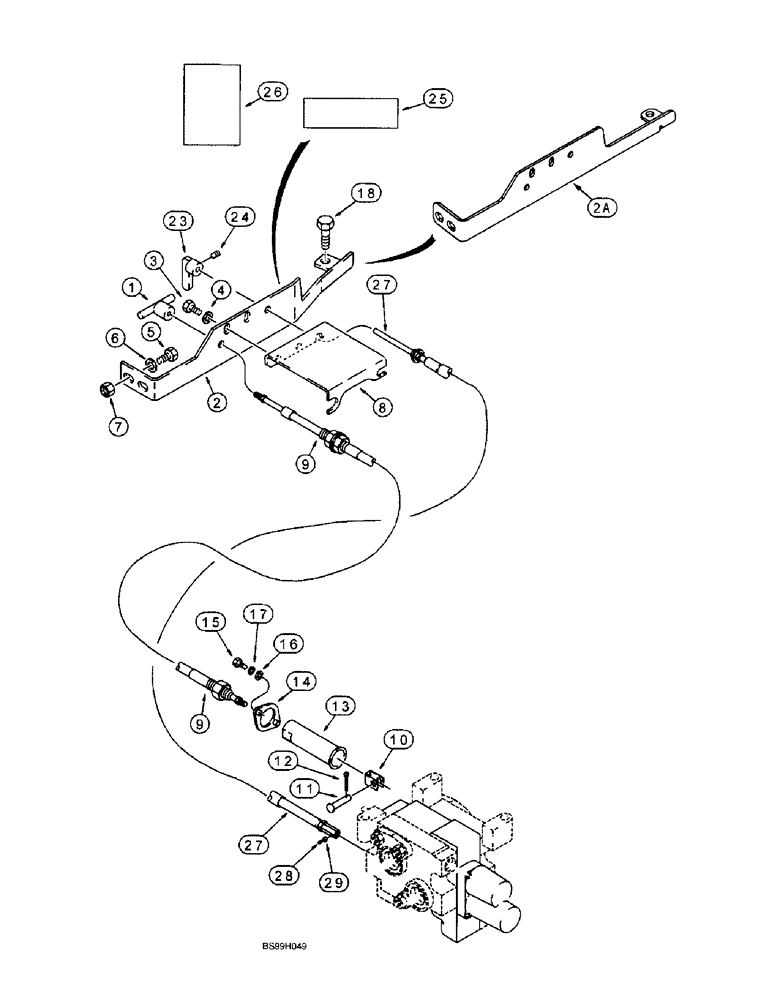

Запчасти Case 590SL (8-48) - HAND HELD AUXILIARY HYDRAULICS, CONTROL CABLES TO AUXILIARY VALVE (08) - HYDRAULICS

1

139227A1

BUTTON

KNOB - push pull, detent

1шт.

2

191076A1

LARGE PLATE

PLATE - control panel, hand held auxiliary hydraulics, left-hand mounting hole uses existing mounting hardware, if used

1шт.

2a

370377A1

PLATE

- control panel, handl held auxiliary hydraulics, left-hand mounting hole uses existing mounting hardware, if used

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

139043A1

SUPPORT

BRACKET - cable support

1шт.

9

123942A1

CABLE

- push pull detent, lower auxiliary valve spool

1шт.

10

96790C2

CLEVIS COUPLING

CLEVIS - cable, push pull cable end

1шт.

11

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN - clevis

1шт.

12

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.

13

1340478C1

HOUSING

- cable, lower auxiliary valve spool

1шт.

14

1280055C2

FLANGE

- cable support

1шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

18

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

23

139230A1

HANDLE

KNOB - rotary, flow control

1шт.

24

83-1108

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - set, hex socket headless, No. 10 NC x 1/2 inch, cup point, flow control knob

1шт.

25

179683A1

DECAL

- hand held auxilliary hydraulics, control panel plate, see figure 9-154 for decal

1шт.

26

192300A1

DECAL

- remote auxiliary hydraulics, inside left-hand door on side of steering wheel panel, see figure 9-154 for decal

1шт.

27

123943A1

CABLE

- flow control, rotary, upper auxiliary valve spool

1шт.

28

84-2106

SET SCREW,Hex Soc, #10-32 x 3/8"

SCREW - set, hex socket headless, No. 10 NF x 3/8 inch, cone point

1шт.

29

225-14210

NUT,#10-32

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
