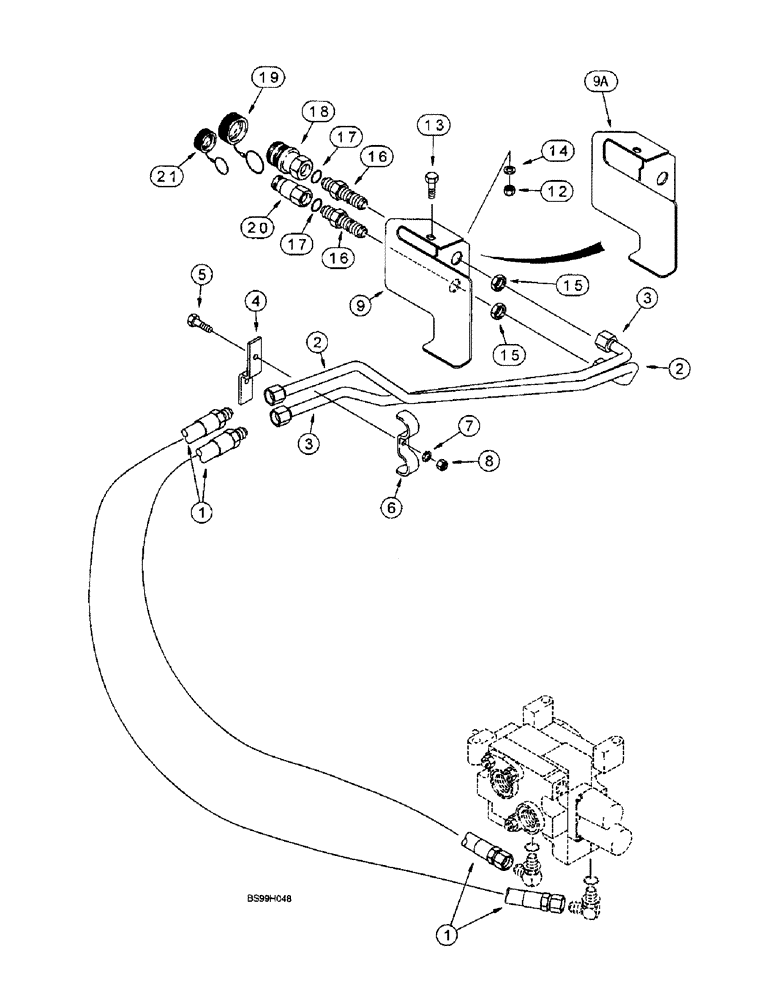

Запчасти Case 590SL (8-46) - HAND HELD AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

1

302501A1

HOSE

- 1340 mm (52-13/16 inch) long, auxiliary valve to quick disconnect couplings, see figure 8-40 for 218-5107 elbows at auxiliary valve

2шт.

2

301700A1

HYD TUBE,19.05 mm OD, 986, 61 mm Length

TUBE - to male coupling

1шт.

3

301698A1

HYD TUBE,19.05 mm OD, 916, 117 mm Length

TUBE - to female coupling

1шт.

4

301355A1

BRACKET

- tube mounting

1шт.

5

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

6

D42833

CLAMP

- tube

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

300490A1

BRACKET

- hose support to quick disconnect couplings, 216 mm (8-1/2 inch) high, no longer available, order 370374A1

1шт.

9a

370374A1

BRACKET

- hose support to quick disconnect couplings, 211 mm (8-5/16 inch) high

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

16

126155A1

FITTING

CONNECTOR - straight, bulkhead, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

18

122179A1

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, component parts are not serviced separately

1шт.

19

137343A1

PLUG

CAP - female coupling, aluminum, if used

1шт.

19

193261A1

PLUG

CAP - female coupling, black rubber, if used

1шт.

20

122178A2

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, component parts are not serviced separately

1шт.

21

137344A1

PLUG

CAP - male coupling, aluminum, if used

1шт.

21

193262A1

PLUG

CAP - male coupling, black rubber, if used

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
