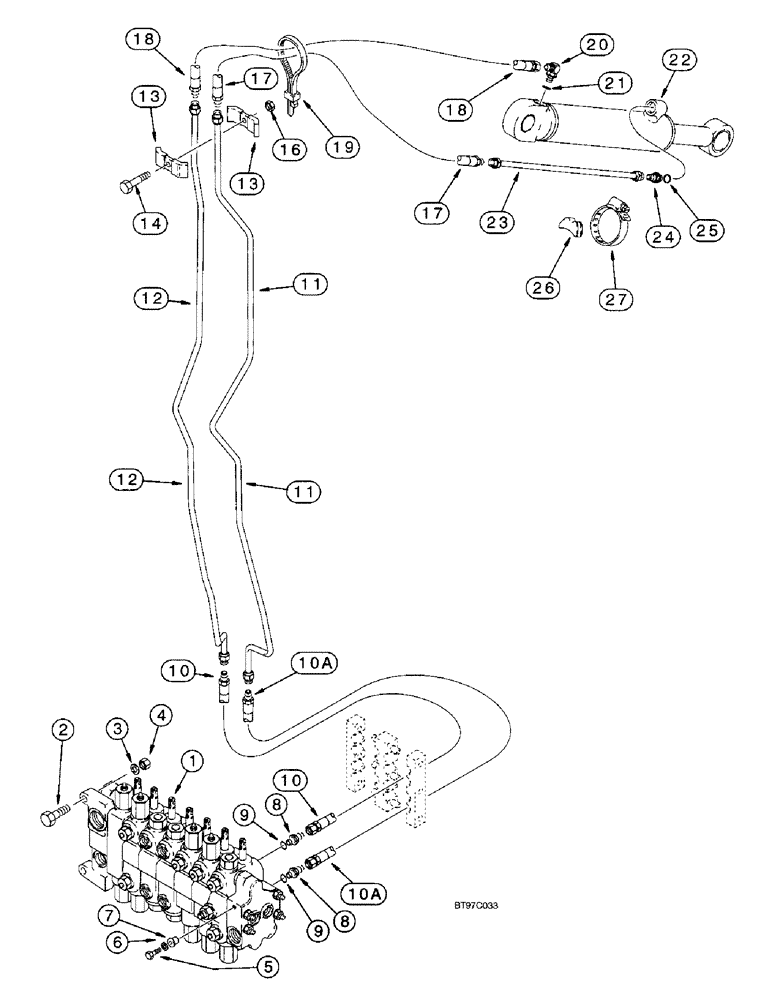

Запчасти Case 590SL (8-36) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see figure 8-92 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, extendable dipper section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

195062A1

HOSE,15.88mm ID x 1210mm L

- 1210 mm (47-21/32 inch) long, extendahoe cylinder closed end, includes hose guard and clamp, control valve through swing tower to boom, see figure 8-33, Ref. 11-19 for hose clamping

1шт.

10a

194914A1

HOSE,15.88mm ID x 1210mm L

- 1210 mm (47-21/32 inch) long, extendahoe cylinder rod end, includes hose guard and clamp, control valve through swing tower to boom, see figure 8-32, Ref. 11-19 for hose clamping

1шт.

11

142951A1

HYD TUBE,19.05 mm OD, 1853, 52 mm Length

TUBE - on boom, to extendable dipper cylinder rod end

1шт.

12

142960A1

HYD TUBE,19.05 mm OD, 2110.9 mm Length

TUBE - on boom, to extendable dipper cylinder closed end

1шт.

13

D40236

CLAMP

- tube, on boom

2шт.

14

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

17

181960A1

HOSE,12.7mm ID x 938mm L

- 938 mm (36-15/16 inch) long, includes hose guard and clamp, extendable dipper cylinder rod end

1шт.

18

181961A1

HOSE,12.7mm ID x 788mm L

- 788 mm (31-1/32 inch) long, includes hose guard and clamp, extendable dipper cylinder closed end

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, extendable dipper cylinder closed end, Incl. Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

ASSEMBLY - 76 (3) ID x 1220 mm (48 inch) stroke, extendable dipper, parts list figure 8-142

1шт.

23

175817A1

TUBE,15.88 mm OD

- at extendable dipper cylinder rod end

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, extendable dipper cylinder rod end, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D38648

BLOCK

SPACER - rubber

1шт.

27

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

1шт.
