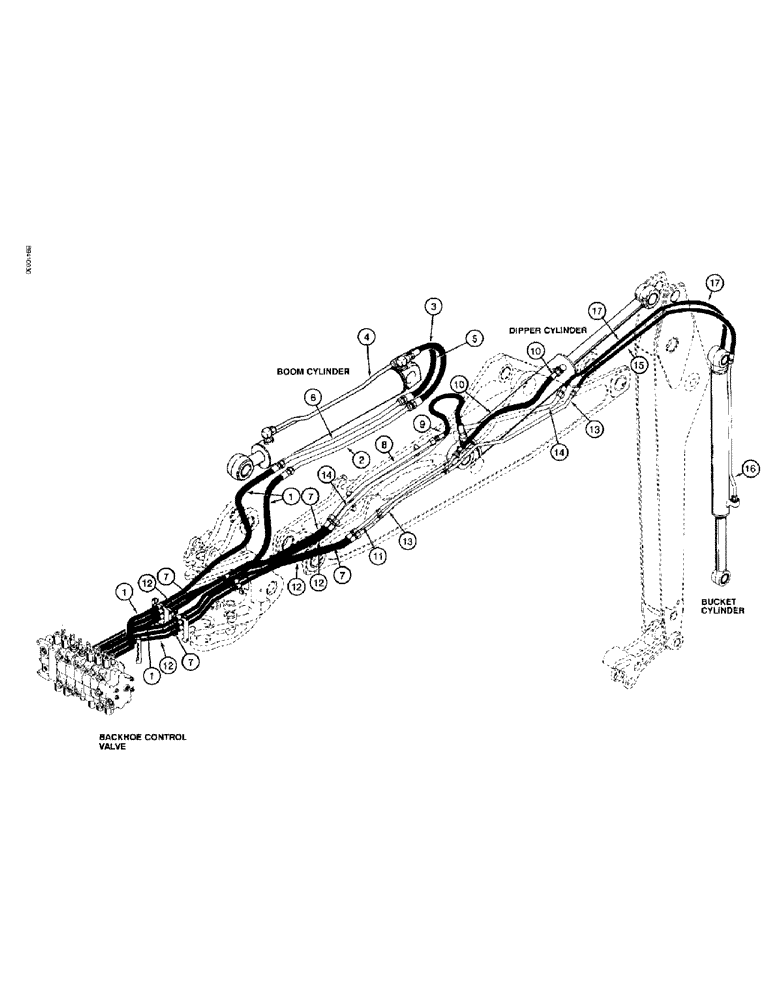

Запчасти Case 590SL (1-20) - PICTORIAL INDEX, BACKHOE HYDRAULICS, BOOM, DIPPER, AND BUCKET (00) - PICTORIAL INDEX

1

Hoses at control valve through

1шт.

swing tower to boom, Page 8-25

1шт.

2

Tube to boom cylinder closed end

1шт.

hose, Page 8-25

1шт.

3

Boom cylinder closed end hose, Page

1шт.

8-25

1шт.

4

Boom cylinder rod end tube, Page

1шт.

8-25

1шт.

5

Hose to boom cylinder rod end tube

1шт.

Page 8-25

1шт.

6

Tube to boom cylinder rod end hose

1шт.

Page 8-25

1шт.

7

Hoses at control valve through

1шт.

swing tower to boom for dipper

1шт.

Page 8-27

1шт.

8

Tube to dipper cylinder closed end

1шт.

hoses, Page 8-27

1шт.

9

Hose at dipper cylinder closed end

1шт.

Page 8-27

1шт.

10

Hose at dipper cylinder rod end

1шт.

Page 8-27

1шт.

11

Tube to dipper cylinder rod end

1шт.

hose, Page 8-27

1шт.

12

Hoses at control valve through

1шт.

swing tower to boom for bucket

1шт.

Page 8-29

1шт.

13

Tube on right-hand side of, Start Serial: boom,

1шт.

bucket cylinder rod end hose, Page

1шт.

8-29

1шт.

14

Tube on left-hand side of, Start Serial: boom,

1шт.

bucket cylinder closed end hose

1шт.

Page 8-29

1шт.

15

Hose to bucket cylinder rod end

1шт.

tube, Page 8-29

1шт.

16

Bucket cylinder rod end tube, Page

1шт.

8-29

1шт.

17

Hose at bucket cylinder closed end

1шт.

Page 8-31

1шт.
