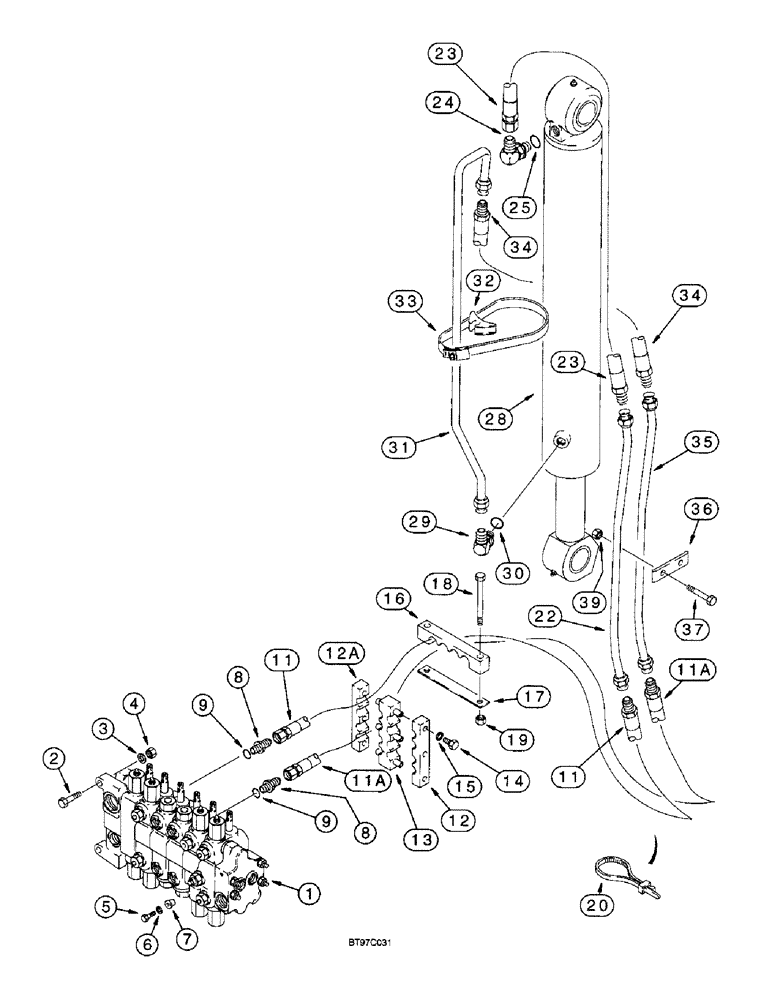

Запчасти Case 590SL (8-24) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see figure 8-88 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, boom section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

195060A1

HOSE,19.05mm ID x 1360mm L

- 1360 mm (53-9/16 inch) long, includes hose guard and clamp, upper port control valve to boom cylinder closed end

1шт.

11a

194917A1

HOSE,15.88mm ID x 1315mm L

- 1315 mm (51-25/32 inch) long, includes hose guard and clamp, boom cylinder rod end to lower port control valve

1шт.

12

179404A1

CLAMP

- hose, right-hand outer

1шт.

12a

176268A1

CLAMP

- hose, left-hand outer

1шт.

13

176266A1

CLAMP

- hose, center

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

6шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

16

175947A1

CLAMP

- hose, at swing tower

1шт.

17

132212A1

PLATE

- Hose clamp, at swing tower

1шт.

18

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining

1шт.

22

220277A1

TUBE

- to boom cylinder closed end hose

1шт.

23

189976A1

HOSE,19.05mm ID x 1125mm L

- 1125 mm (44-5/16 inch) long, includes hose guard and clamp, boom cylinder closed end

1шт.

24

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, boom cylinder closed end, for models with boom lock valve, see figure 8-58

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

28

175785A1

CYLINDER,Double Acting, 63.5mm Rod, 975.7mm Stroke

ASSEMBLY - 140 (5-1/2) ID x 976 mm (38-13/32 inch) stroke, boom, parts list figure 8-136

1шт.

28

175785A1R

REMAN-HYD CYLINDER

590SL Series II

1шт.

28

175785A1C

CORE-HYD CYLINDER

Return Number

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring boss, boom cylinder rod end, Includes: Ref. 30

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

179605A1

HYD TUBE,19.05 mm OD

TUBE - boom cylinder rod end

1шт.

32

D142787

SPACER

INSULATOR - rubber

1шт.

33

214-14112

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

CLAMP - adj., 6-1/16 - 7-1/2 inch dia, tube to cylinder

1шт.

34

179615A1

HOSE,15.88mm ID x 560mm L

- 560 mm (22-3/64 inch) long, to boom cylinder rod end tube, Includes: Ref. 25

1шт.

35

222027A1

TUBE

- to boom cylinder rod end hose

1шт.

36

182035A1

CLAMP

- boom cylinder tubes to inner left-hand side of boom

2шт.

37

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex, 12 - 1.75 x 70 mm

4шт.

39

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

4шт.
