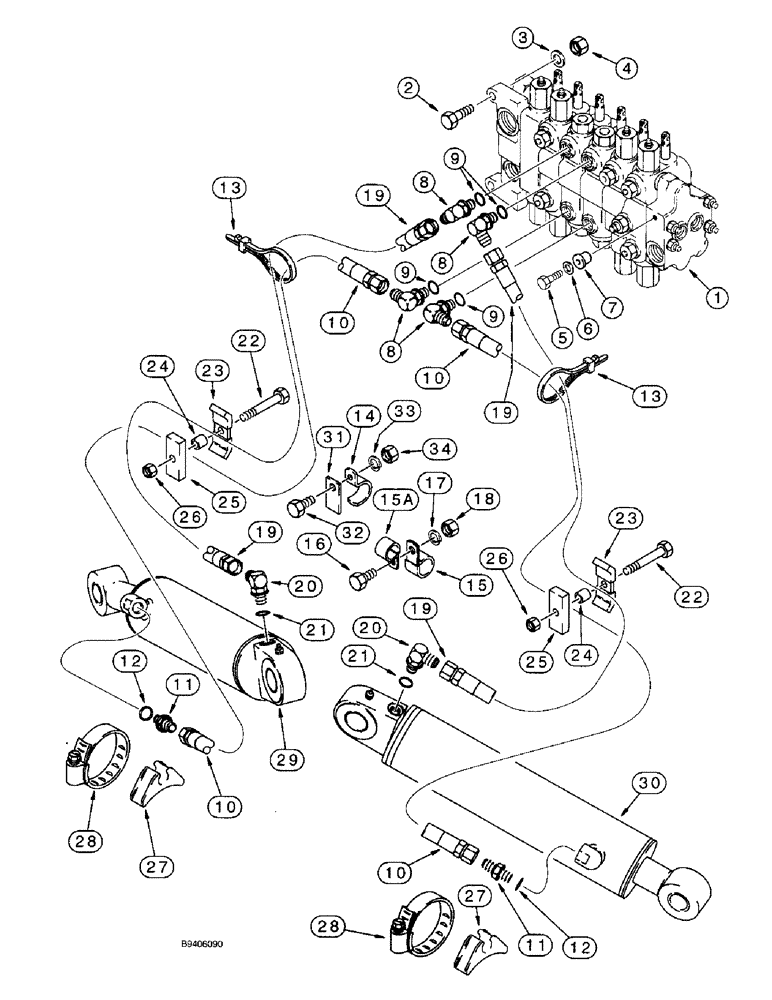

Запчасти Case 590SL (8-20) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see figure 8-88 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, stabilizer section upper and lower ports, Includes: Ref. 9

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

144251A1

HOSE

- 1240 mm (48-13/16 inch) long, stabilizer cylinder rod ends to stablizer section lower ports

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss, Stabilizer cylinder rod ends, Incl. Ref 12 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining

2шт.

14

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

- P-type, 3/4 inch ID

1шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

15a

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

19

143384A1

HOSE,9.53mm ID x 1025mm L

- 1025 mm (40-3/8 inch) long, stabilizer section upper ports to closed ends of stabilizer cylinders

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, stabilizer cylinder closed ends, Includes: Ref. 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

23

D40236

CLAMP

- hose

2шт.

24

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- hose clamps

2шт.

25

D150099

SHIN

PLATE - spacer

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

D142787

SPACER

INSULATOR - rubber

2шт.

28

214-14104

HOSE CLAMP,155.45mm - 177.8mm

CLAMP, HOSE, , Adj. #104, 6.12/7.00 Type F Worm

2шт.

29

177257A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

Assy - 127 (5) ID x 519 mm (20-7/16 inch) stroke, LH stabilizer, Parts list figure 8-132

1шт.

29

177257A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

29

177257A1C

CORE-HYD CYLINDER

Return Number

1шт.

30

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

Assy - 127 (5) ID x 519 mm (20-7/16 inch) stroke, RH stabilizer, Parts list figure 8-132

1шт.

30

177256A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

30

177256A1C

CORE-HYD CYLINDER

Return Number

1шт.

31

191758A1

PLATE

- spacer, clamp

1шт.

32

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

33

892-11010

LOCK WASHER,M10

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
