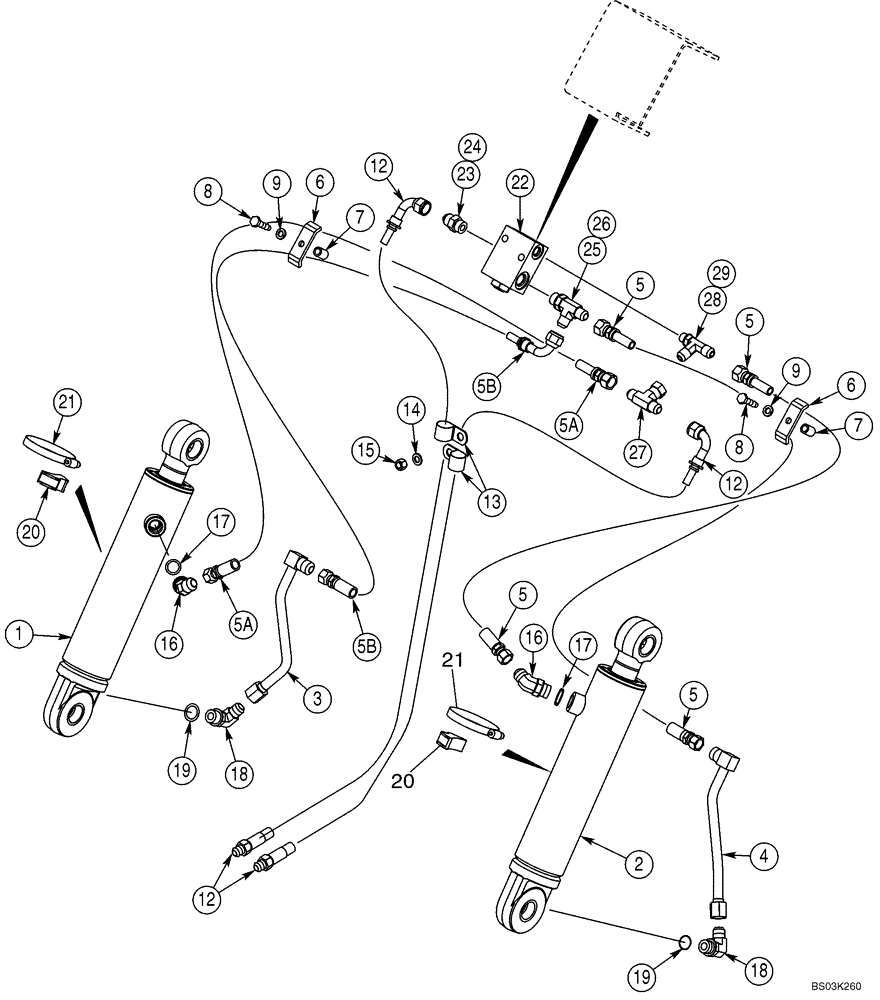

Запчасти Case 590SL (7-22) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS

1

1346190C1

CYLINDER ASSY.

76 ID x 231 mm strk: Loader Clam Cylinder; LH; See Figure 08-64; If Used

1шт.

1

87454016

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 230.6mm Stroke

76 ID x 231 mm strk: Loader Clam Cylinder; LH; See Figure 08-64; If Used

1шт.

2

1346189C1

CYLINDER ASSY.

76 ID x 231 mm strk; Loader Clam Cylinder; RH; See Figure 08-64; If Used

1шт.

2

87454017R

REMAN-HYD CYLINDER

590SL (3/98-), 590SM (TIER 2) (NA) (2/04-), Both SERIES 2 LOADER BACKHOE, 76 ID x 231 mm strk, Loader Clam Cylinder, RH, Reman for New PN 1346189C1

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

2

87454017

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 230.6mm Stroke

76 ID x 231 mm strk; Loader Clam Cylinder; RH; See Figure 08-64; If Used

1шт.

2

87454017R

REMAN-HYD CYLINDER

590SL (3/98-), 590SM (TIER 2) (NA) (2/04-), Both SERIES 2 LOADER BACKHOE, 76 ID x 231 mm strk, Loader Clam Cylinder, RH

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

192352A1

HYD TUBE

LH Cylinder

1шт.

4

192345A1

HYD TUBE

RH Cylinder

1шт.

5

376157A1

HYDRAULIC HOSE

1240 mm (48-7/8"); RH Cylinder

2шт.

5a

353102A1

HYDRAULIC HOSE

1340 mm (52-13/16"); LH Cylinder

1шт.

5b

376158A1

HYDRAULIC HOSE

1340 mm (52-13/16"); LH Cylinder

1шт.

6

D143846

CLAMP

2шт.

7

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

12

356743A1

HYDRAULIC HOSE,12.7mm ID x 1170mm L

1170 mm (46-1/16"); Lift Frame

2шт.

13

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

20

D38648

BLOCK

2шт.

21

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

22

325465A2

VALVE, CHECK

Pilot Operated Check Valve; For Mounting, See Figure 09-07

1шт.

399963A1

SEAL KIT

For Use With 325465A2 Valve; Includes (1) Piston, (1) Backup Ring, (2) O-Rings and Instructions

1шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

25

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

27

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

1шт.

28

218-5650

TEE,37 Degree, 3/4"-16, 9/16"-18 O-Ring Run, 3/4"-16

Incl. Ref 29

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
