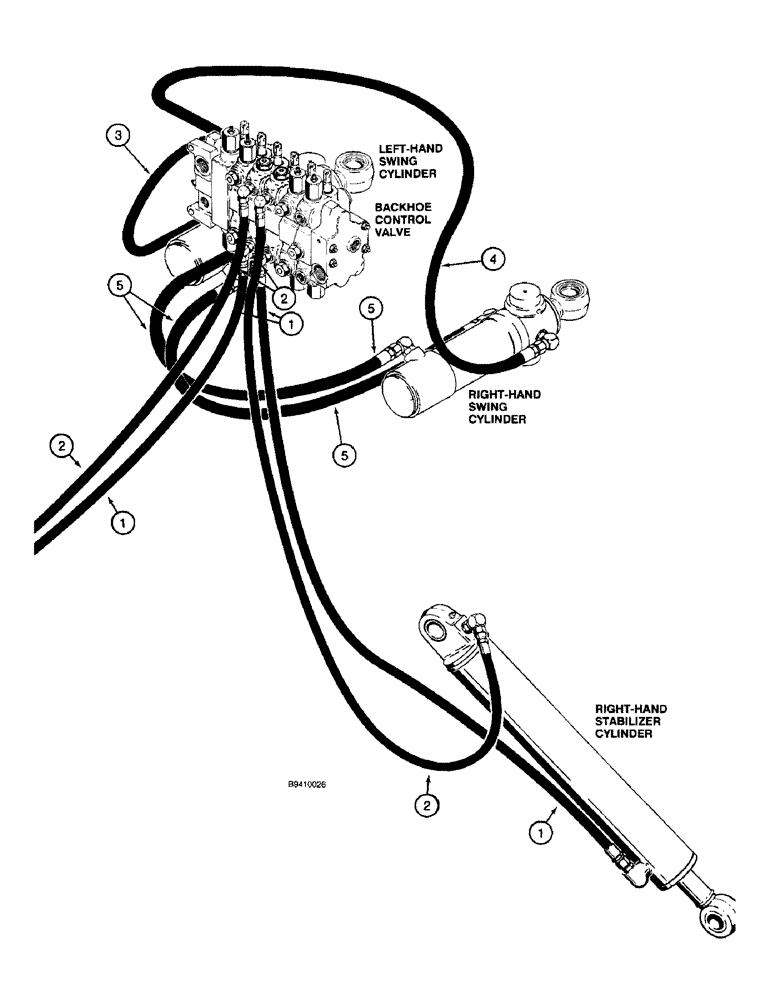

Запчасти Case 590SL (1-18) - PICTORIAL INDEX, BACKHOE HYDRAULICS, STABILIZER CYLINDER AND SWING CYLINDER (00) - PICTORIAL INDEX

1

Hose at stabilizer cylinder rod

1шт.

ends to backhoe control valve

1шт.

stabilizer section lower ports

1шт.

Page 8-21

1шт.

2

Hose at stabilizer cylinder closed

1шт.

ends to backhoe control valve

1шт.

stabilizer section upper ports

1шт.

Page 8-21

1шт.

3

Hose at backhoe control valve swing

1шт.

section upper port to outer rod end

1шт.

of left-hand swing cylinder, Page

1шт.

8-23

1шт.

4

Hose at backhoe control valve swing

1шт.

section lower port to outer rod end

1шт.

of right-hand swing cylinder, Page

1шт.

8-23

1шт.

5

Crossover hose, Page 8-23

1шт.
