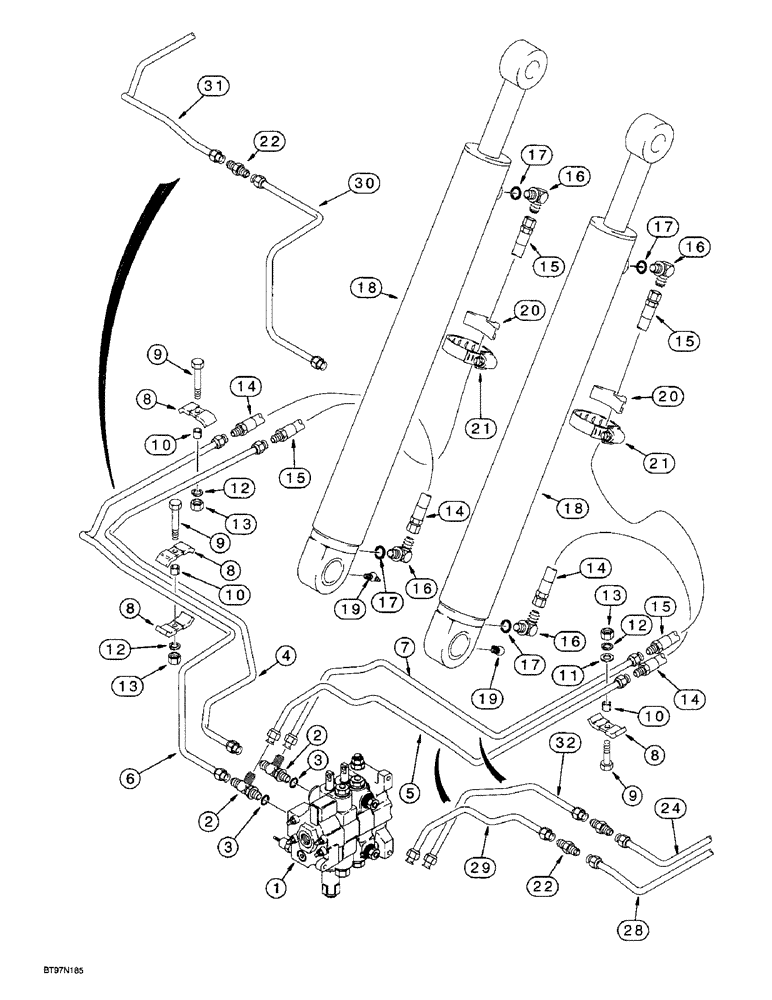

Запчасти Case 590SL (7-18) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see figure 8-72 - 8-75A

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

225330A1

TUBE

- upper lift port to left-hand loader lift cylinder rod end, used in production (services itself, for service order 225330A1 tube, Ref 4A), models without ride control, see figure 8-60 for parts used on models with ride control

1шт.

5

231984A1

TUBE

- lower lift port to right-hand loader lift cylinder closed end, used in production (for service order 221158A1 and 232929A1 tubes and 218-435 connector, Ref 22, 28 and 29)

1шт.

6

225332A1

TUBE

- lower lift port to left-hand loader lift cylinder closed end, used in production (for service order 232939A1 & 232941A1 tubes & 218-435 connector, Ref 22, 30 and 31), models w/out ride control, see fig. 8-60 for parts used on models w/ride control

1шт.

7

231982A1

TUBE

- upper lift port to right-hand loader lift cylinder rod end, used in production (for service order 221162A1 and 232931A1 tubes and 218-435 connector, Ref 22, 24 and 32)

1шт.

8

D138055

CLAMP

- tube

4шт.

9

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, Replaces 814-10040 40 mm long bolt used on some models

3шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

3шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

187535A1

HOSE,12.7mm ID x 720mm L

- 720 mm (28-11/32 inch) long, lift cylinder closed end

2шт.

15

187536A1

HOSE,12.7mm ID x 1090mm L

- 1090 mm (43 inch) long, upper port of control valve to lift cylinder rod end

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

133936A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 766mm Stroke

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 766 mm (30-1/8 inch) stroke, loader lift, parts list figure 8-126

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

20

D142787

SPACER

INSULATOR - rubber

2шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, large hex, 7/8-14 inch flare

1-3шт.

24

221162A1

TUBE

- right-hand loader lift cylinder rod end

1шт.

28

221158A1

TUBE

- right-hand loader lift cylinder closed end

1шт.

29

232929A1

HYD TUBE

TUBE - lower lift port to right-hand loader lift cylinder

1шт.

30

232939A1

TUBE

- lower lift port to left-hand loader lift cylinder, models without ride control, see figure 8-60 for parts used on models with ride control

1шт.

31

232941A1

TUBE

- left-hand loader lift cylinder closed end, models without ride control, see figure 8-60 for parts used on models with ride control

1шт.

32

232931A1

HYD TUBE

TUBE - upper lift port to right-hand loader lift cylinder

1шт.
