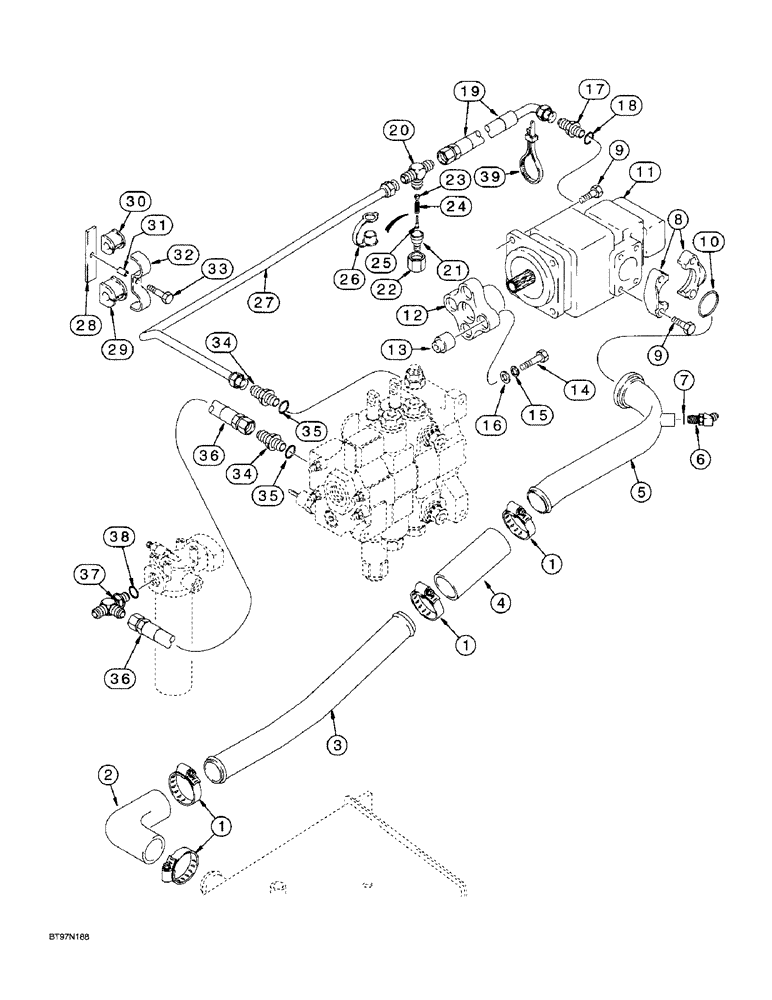

Запчасти Case 590SL (7-13) - EQUIPMENT HYD. SYSTEM, RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
259044A1
CLAMP
- tube
4шт.
2
282497A1
HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7
- Suction, at hydraulic tank 51.00 mm ID x 102.00 mm, SAE 30R7
1шт.
3
131586A1
TUBE
- suction
1шт.
4
282496A1
HOSE,51.00 mm ID x 152.40 mm, SAE 30R6
- Coupler 51.00 mm ID x 152.40 mm, SAE 30R6
1шт.
5
121817A1
HYD TUBE
TUBE - suction, at hydraulic equipment pump
1шт.
6
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 45 degree, 7/8-14 inch flare x adj. O-ring boss, to cooler return hose, Incl. Ref 7
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
8
A14141
FLANGE
- split, 2 inch
2шт.
9
614-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
- hex, full threads, 12 - 1.75 x 35 mm
8шт.
10
238-5228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
1шт.
11
257955A1
PUMP, HYDRAULIC
PUMP ASSEMBLY - hydraulic equipment, with 17 teeth shaft gear set, parts list figure 8-70; No Longer Available, Order 87435827 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate
1шт.
257948A1
FLEXIBLE COUPLING,Flex, 17T
- flex, 17 teeth, with steel plug, Includes: Ref. 12 and 13
1шт.
12
NSS
NOT SOLD SEPARAT
COUPLING - pump
1шт.
13
N14330
BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L
- coupling
4шт.
14
413-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
4шт.
15
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
16
A30013
WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk
- special, hardened
4шт.
17
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 18
1шт.
19
144215A1
HOSE,19.05mm ID x 576mm L
- 576 mm (22-11/16 inch) long, large pump section port
1шт.
20
218-587
TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br
- 1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, pump outlet hose to loader valve inlet tube
1шт.
D137625
QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID
COUPLING - quick disconnect, Includes Ref. 21 - 25
1шт.
21
NSS
NOT SOLD SEPARAT
BODY - coupling
1шт.
22
425-1120
NUT,1 1/4"-12, G5
- hex, 1-1/4 inch NF
1шт.
23
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
24
NSS
NOT SOLD SEPARAT
SPRING - coupling
1шт.
25
NSS
NOT SOLD SEPARAT
POPPET - coupling
1шт.
26
H434163
DUST CAP
CAP - dust, coupler
1шт.
27
122125A1
TUBE
- tee to loader control valve inlet, see figure 8-12 Ref. 19-23 for tube clamps near loader valve, used with Ref 34 adapter, used without loader hydraulic tool quick coupler
1шт.
28
115507A1
SUPPORT
PLATE - mounting
1шт.
29
D67297
BLOCK
INSULATOR - rubber, tube
1шт.
30
REF
INSTRUCTION
INSULATOR - tube, small pump section tube to backhoe valve, see figure 8-6, Ref. 4 and 5, for tube and insulator
1шт.
31
R46493
SPACER,0.406" ID x 0.625" OD x 0.850" Thk
- split, 22 mm (7/8 inch) long
1шт.
32
D143422
SHIN
CLAMP - double tube
1шт.
33
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
1шт.
34
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adapter - straight, 1-5/16-12 inch flare x O-ring boss, at loader valve inlet and outlet ports, adapter at upper port is replaced by a tee on models with loader hydraulic tool quick coupler, see figure 8-64, Ref. 10, Incl. Ref. 35
2шт.
36
144227A1
HOSE
- 520 mm (20-15/32 inch) long, loader valve to filter, models without ride control, see figure 8-60 for parts used on models with ride control
1шт.
37
218-5245
TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
- 1-5/16-12 inch flare branch x flare x adj. O-ring boss, loader valve to filter and filter to backhoe control valve, Includes: Ref. 38
1шт.
39
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, if used
1шт.
Выбрано товаров: 41
