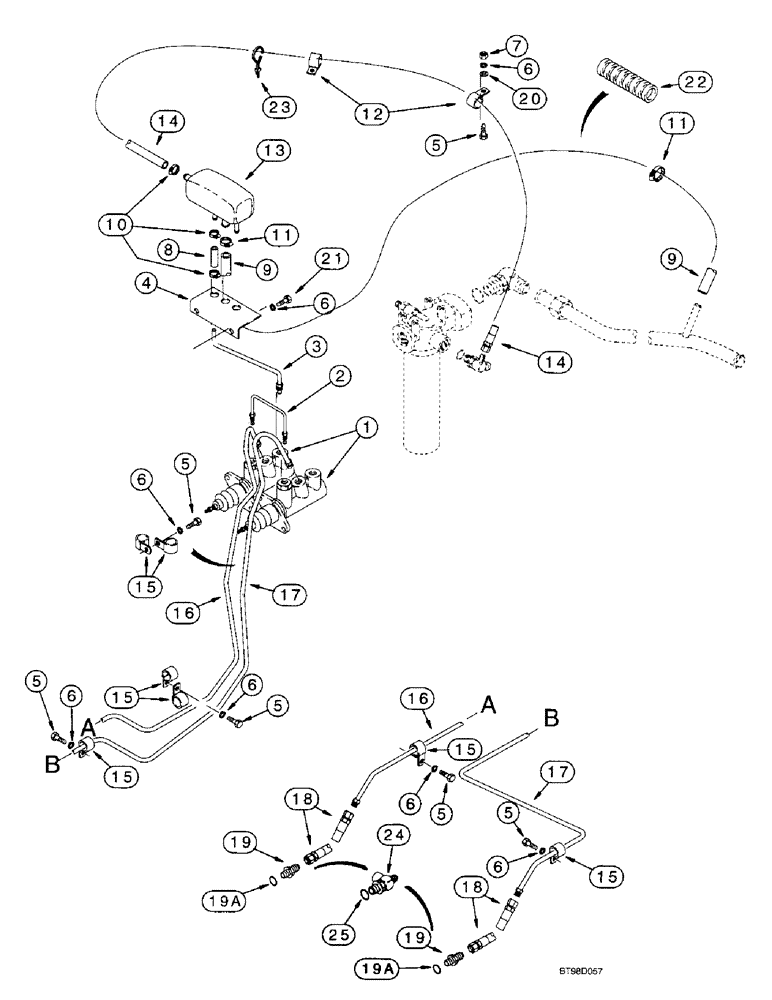

Запчасти Case 590SL (7-08) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER ASSEMBLY - brake master, parts list figure 7-10

2шт.

2

D136430

TUBE

- crossover

1шт.

3

142003A1

TUBE,7.94 mm OD, 224, 60 mm Length

- reservoir to master cylinder

2шт.

4

121730A2

SUPPORT

BRACKET - brake reservoir support, Serial Range: attaches-firewall

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

- Reservoir to master cylinder 7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

2шт.

9

296171A1

HOSE,12.70 mm ID x 1275.00 mm, SAE 100R6

- 1225 mm (48-1/4 inch) long, Reservoir outlet, Attaches to return to tank tube, Ref. 22 on figure 8-8

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, #4, 0.25/0.62 Type M Worm

5шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable, Attaches to return to tank tube #6, 0.44/0.78 Type M Worm

2шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type 1/2", Insul, 5/16" Bolt

2шт.

13

1976943C1

RESERVOIR

- brake master cylinder

1шт.

14

131676A1

HOSE,7.94mm ID x 1590mm L

- 1590 mm (62-5/8 inch) long, reservoir inlet, attaches to tee at hydraulic oil filter, Ref. 9 on figure 8-8

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

7шт.

16

309978A1

TUBE,7.94 mm OD, 854, 524 mm Length

- brake, left-hand, Replaces 276743A1

1шт.

17

309981A1

TUBE,7.94 mm OD, 854, 524 mm Length

- brake, right-hand, Replaces 276746A1

1шт.

18

142007A1

HOSE,6.35mm ID x 625mm L

- 625 mm (24-5/8 inch) long, brake tube to adapter on rear axle

2шт.

18

247570A1

HOSE

- 430 mm (16-15/16 inch) long, brake tube to adapter on rear axle, used in production, for service order 142007A1 hose

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, models without powershift transmission, Incl. Ref. 19A

2шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, if used

1шт.

24

222889A1

FITTING

TEE - brake pressure switch, models with Clark powershift transmission, Includes: Ref. 25

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
