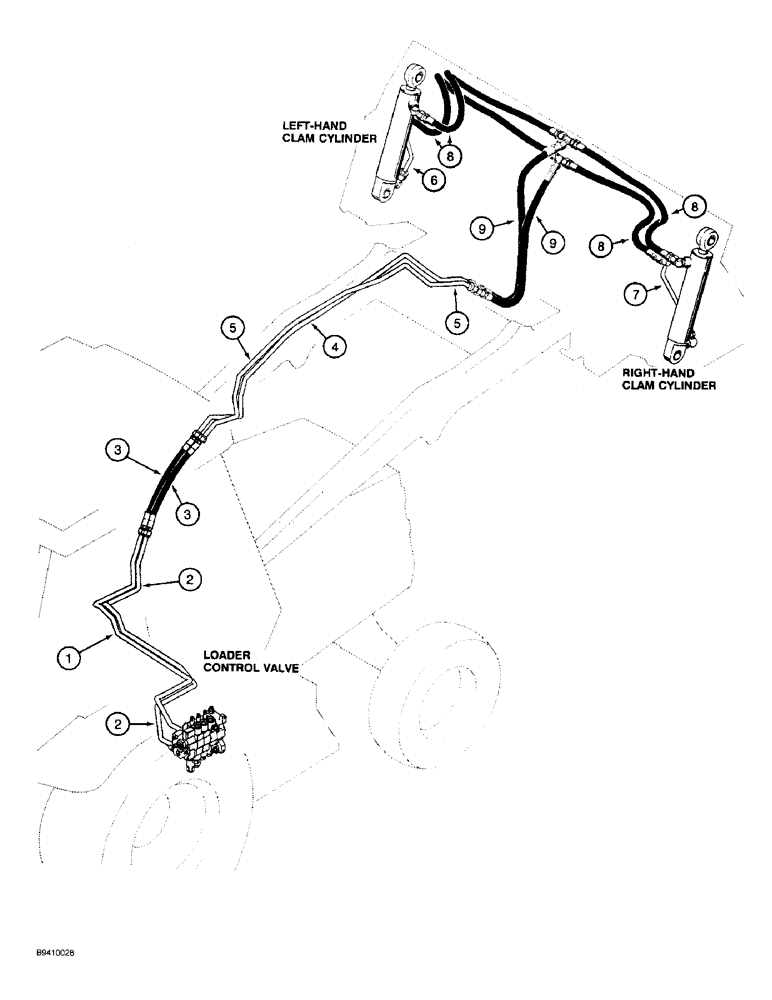

1
Tube at upper port auxiliary
1шт.
section of loader control, Start Serial: valve
1шт.
hose at loader arm pivot, Page 8-17
1шт.
2
Tube at lower port auxiliary
1шт.
section of loader control, Start Serial: valve
1шт.
hose at loader arm pivot, Page 8-17
1шт.
3
Hose at loader arm pivot, Page 8-17
1шт.
4
Lower tube on loader lift frame
1шт.
Page 8-17
1шт.
5
Upper tube on loader lift frame
1шт.
Page 8-17
1шт.
6
Tube at left-hand clam cylinder
1шт.
Page 8-19
1шт.
7
Tube at right-hand clam cylinder
1шт.
Page 8-19
1шт.
8
Right-hand and left-hand clam
1шт.
cylinder hoses, Page 8-19
1шт.
9
Lift arm hoses, Page 8-19
1шт.
