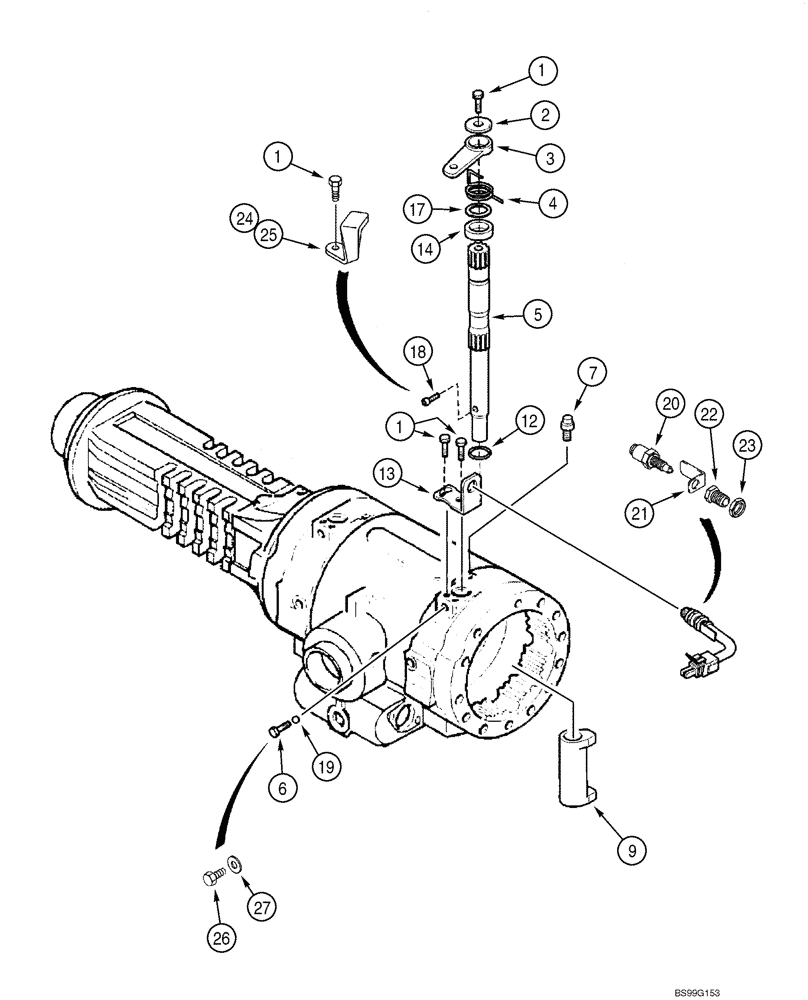

Запчасти Case 590SL (7-04) - REAR DRIVE AXLE, PARKING BRAKE (07) - BRAKES

275306A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models without powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 27

1шт.

275307A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models with powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 27

1шт.

1

190451A1

LOCK BOLT,M8 x 20mm

BOLT - special, 8 x 20 mm

6шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

2

190463A1

WASHER

- flat

2шт.

3

280436A1

LEVER

- brake, 100 mm

2шт.

4

190476A2

SPRING

- left-hand, not shown

1шт.

4

190477A2

SPRING

- right-hand, shown

1шт.

5

256484A1

SHAFT

- brake control

2шт.

6

283462A1

BOLT

BOLT - special, 8 - 1.0 x 23.5 mm

2шт.

7

E135810

VENTING SCREW

PLUG - brake bleeder, brake housing

2шт.

9

190473A1

SPRING

- cam

2шт.

9

196085A1

CAM

- brake

2шт.

12

321183A1

O-RING

- special, Replaces 190448A1

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

13

256478A1

SUPPORT

BRACKET - stop

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

14

256481A1

SPACER

BUSHING - shaft

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

17

256482A1

SHIM

- shaft

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

18

256485A1

BOLT

BOLT - special, 6 x 16 mm

2шт.

19

283466A1

BALL

- 6.5 mm

2шт.

281952A1

KIT

- switch, park brake, Includes: Ref. 20 - 22

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

20

280450A1

PARK BRAKE SWITCH

SWITCH - brake

1шт.

21

280452A1

BRACKET

- switch guard, lever

1шт.

22

280457A1

LEVER

SLEEVE - switch

1шт.

23

281960A1

NUT

- special, 16 mm - 1.5

1шт.

279645A1

PACKAGE, REPAIR

KIT - parking brake, external adjustment parts, includes instructions, also includes Ref. 1, 12, 13, 14, 17, 24 - 27 and P/N 281952A1 switch kit (Ref. 20 - 23), if used

1шт.

24

259254A1

RETAINER

- left-hand

1шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

25

280443A1

RETAINER

- right-hand

1шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

26

514-634

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.0 x 16 mm

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.

27

181104A1

COPPER WASHER

WASHER - sealing, copper

2шт.

Part of Parking Brake Kit, P/N 279645A1

1шт.
