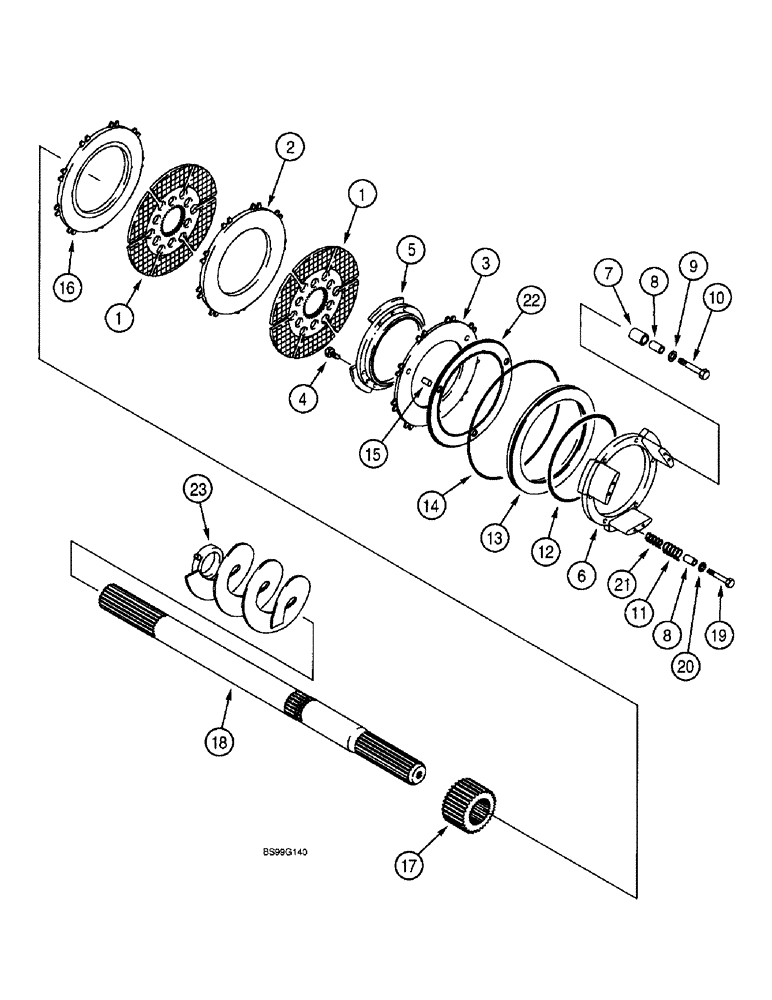

Запчасти Case 590SL (7-02) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

275306A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models without powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 25

1шт.

275307A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models with powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 25

1шт.

1

237017A1

BRAKE DISC

DISC - brake

4шт.

Part of Brake Disc and Plates, P/N 243894A1

1шт.

2

237018A1

FRICTION WASHER

PLATE - friction, inner

2шт.

Part of Brake Disc and Plates, P/N 243894A1

1шт.

3

237019A1

LARGE PLATE

PLATE - piston

2шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 16, 8.8

18шт.

5

196076A1

FLANGE

- inner

2шт.

6

196077A1

FLANGE

- outer

2шт.

7

190449A1

SPLIT PIN

SPACER - split, 18 x 20 mm, no longer sold separately, order 248071A1 kit below

6шт.

Part of Brake Self Adjuster Kit, P/N 248071A1

1шт.

8

190496A1

BUSHING

- spacer, no longer sold separately, order 248071A1 kit below

12шт.

Part of Brake Self Adjuster Kit, P/N 248071A1

1шт.

9

190450A1

WASHER

- flat, special

6шт.

10

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT - hex, 6 - 1.0 x 35 mm

6шт.

11

237026A1

SPRING

- outer

6шт.

Part of Brake Disc and Plates, P/N 243894A1

1шт.

12

196078A1

O-RING,9.541" ID x 0.14" Width

- small

2шт.

13

196079A1

PISTON

- brake

2шт.

14

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

(Replaces 196080A1) -274, Cl 8, 9.984" ID x .139" Thk

2шт.

15

190447A1

SPLIT PIN

PIN - split, 6 x 14 mm

6шт.

16

237020A1

LARGE PLATE

PLATE - friction, outer

2шт.

Part of Brake Disc and Plates, P/N 243894A1

1шт.

17

196082A1

SLEEVE

- splined

2шт.

18

196083A1

HALF SHAFT

SHAFT - splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT - hex socket, 6 - 1.0 x 35 mm

6шт.

20

190500A1

COVER

- spring

6шт.

21

237025A1

SPRING

- inner

6шт.

Part of Brake Disc and Plates, P/N 243894A1

1шт.

22

192911A1

SHIM

- piston

2шт.

23

329475A1

CUTTER

AUGER - oil, right-hand, includes weld-on clamp and bolt and welded on drive coupling; Replaces 193491A1

1шт.

24

329476A1

AUGER

- oil, left-hand, includes weld-on clamp and bolt and welded on drive coupling, Includes: Ref. 25; Replaces 193493A1

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 20 mm, class 12.9, Not shown

2шт.

243894A1

SET OF PARTS

KIT - brake disc, and plates, service replacement, includes Ref. 1 - 3, 11, 16 and 21

1шт.

248071A1

SERVICE KIT

KIT - brake self adjuster, includesspacer and bushing, plus an instruction sheet

1шт.
