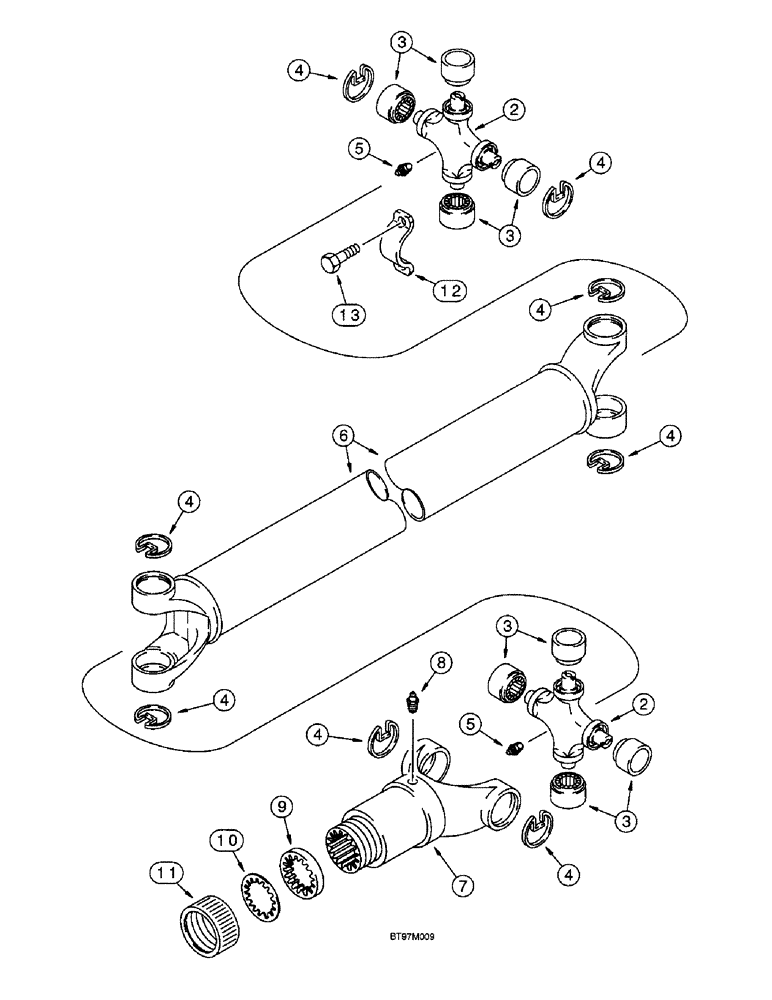

Запчасти Case 590SL (6-174) - DRIVE SHAFT FOR REAR DRIVE AXLE, REAR DRIVE AXLE TO TRANSMISSION (06) - POWER TRAIN

284712A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, models without powershift transmission, Includes: Ref. 2 - 13

1шт.

284711A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, transmission to rear axle, models with powershift transmission, Includes: Ref. 2 - 13

1шт.

144278A1

PACKAGE,SERVICE

KIT - universal joint, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - drive, transmission to rear axle

1шт.

7

144279A1

YOKE

- tube, splined, to rear axle

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

D149860

SERVICE KIT

KIT, SERVICE - Dust cap, Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - dust seal retaining

1шт.

12

90-6682T1

CLAMP

RETAINER - drive shaft, strap, not included in drive shaft assembly, purchase separately

2шт.

13

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

- special

4шт.
