Запчасти Case 590SL (6-172) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN

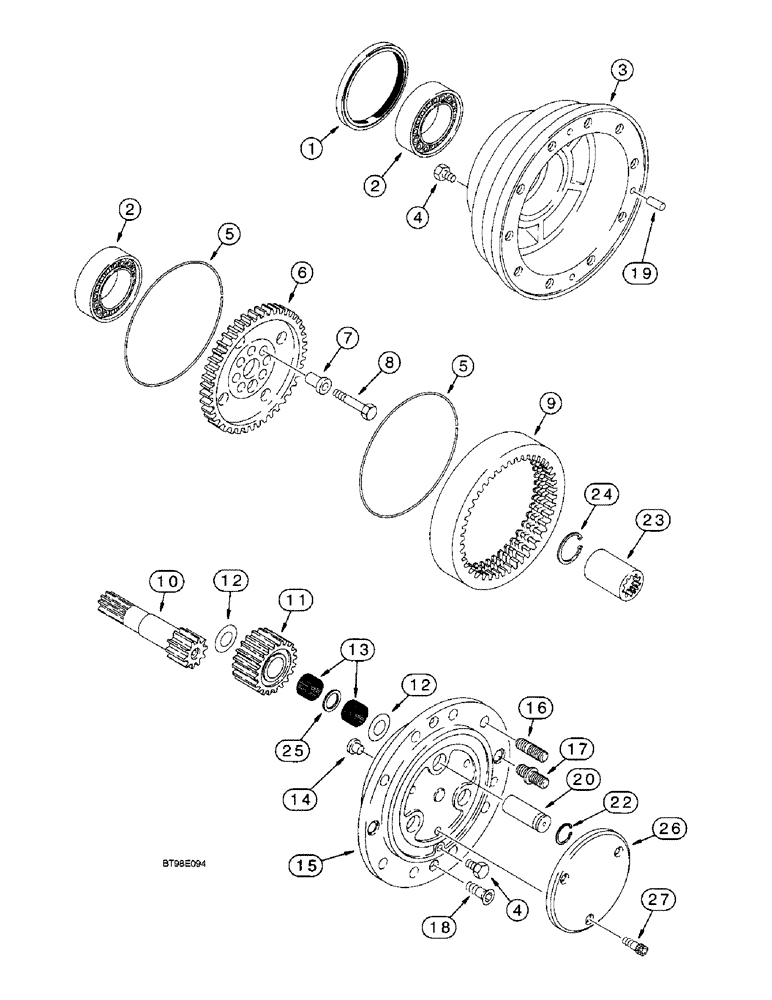

Схема запчастей Case 590SL - (6-172) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN
12
2
23
19
14
5
6
7
16
1
18
4
25
9
15
26
3
4
20
24
27
10
5
11
2
13
22
12
8
17

Артикул

Название

Примечание

Количество

275306A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models without powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 27

1шт.

275307A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models with powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 27

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

D143084

HUB

- wheel attaching

2шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

8шт.

5

D142979

RING, SNAP

RING - lock

4шт.

6

295579A1

PINION

HUB - ring gear

2шт.

7

107071A1

BUSHING

Centering, 20 mm OD

16шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

9

E135755

GEAR WHEEL

GEAR - ring, planetary

2шт.

10

292218A1

HALF SHAFT

SHAFT - pinion

2шт.

11

292217A1

SUN GEAR

GEAR - pinion, planetary

6шт.

12

E135788

WASHER, THRUST

WASHER - thrust, pinion gear

12шт.

13

295040A1

NEEDLE BEARING

BEARING - needle (package of 10 needles) (360 needles required) planetary gear

36шт.

14

295094A1

PIN

- locking

2шт.

15

295039A1

COVER

CARRIER - planetary, includes Ref. 20 shaft, use with liquid gasket Silastic 732, Serial Range: carrier-hub

2шт.

16

D142986

STUD,88mm L

- special, without flanged collar

16шт.

17

E135795

STUD

- special, with flanged collar, for recessed bolt holes

4шт.

18

K395029

SCREW

- special, planetary cover

4шт.

19

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

2шт.

20

NSS

NOT SOLD SEPARAT

SHAFT - pinion gear, included with planetary cover, Ref. 15

6шт.

22

295093A1

RING, SNAP

RING - snap

6шт.

23

196092A1

SPLINED BUSHING,29T

- drive

2шт.

24

800-2136

SNAP RING,M36, Ext

RING - internal retaining, No. 36

2шт.

25

295038A1

THRUST WASHER

WASHER - thrust, needle bearing

6шт.

26

295033A2

COVER

- planetary carrier, with oil level indicator, Replaces 295033A1 cover without oil level indicator

2шт.

27

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

6шт.
