(6-168) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITHOUT POWERSHIFT TRANS. (CLOCKWISE INPUT)

Запчасти Case 590SL (6-168) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITHOUT POWERSHIFT TRANS. (CLOCKWISE INPUT) (06) - POWER TRAIN

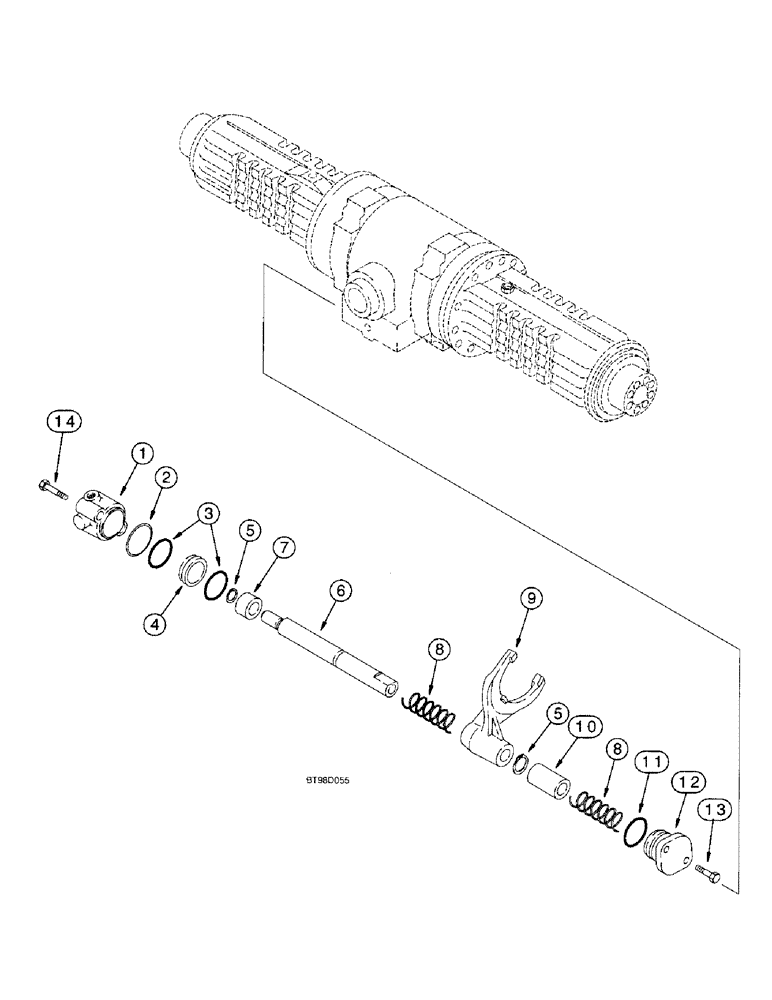

Схема запчастей Case 590SL - (6-168) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITHOUT POWERSHIFT TRANS. (CLOCKWISE INPUT) (06) - POWER TRAIN
9
7
2
14
8
5
5
4
10
8
6
11
1
13
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

275306A1

REAR AXLE

AXLE ASSEMBLY - rear drive, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 14

1шт.

1

292213A1

CYLINDER

- differential lock

1шт.

2

305152A1

O-RING

- cylinder

1шт.

3

292210A1

SEAL

O-RING - seal, external, piston

2шт.

4

292212A1

PISTON

- differential lock

1шт.

5

800-5120

SNAP RING,M20, Ext

RING - external heavy retaining, No. 20

2шт.

6

292214A1

SHAFT

- rail, shifter fork

1шт.

7

292902A1

RING

BUSHING - shaft

1шт.

8

175966A1

SPRING

- shaft

2шт.

9

196072A2

SHIFTER FORK

FORK - shift

1шт.

10

175965A1

BUSHING

- rail

1шт.

11

128376A1

O-RING

- cover

1шт.

12

175968A1

SUPPORT

COVER - housing

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30, Full Thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

2шт.
