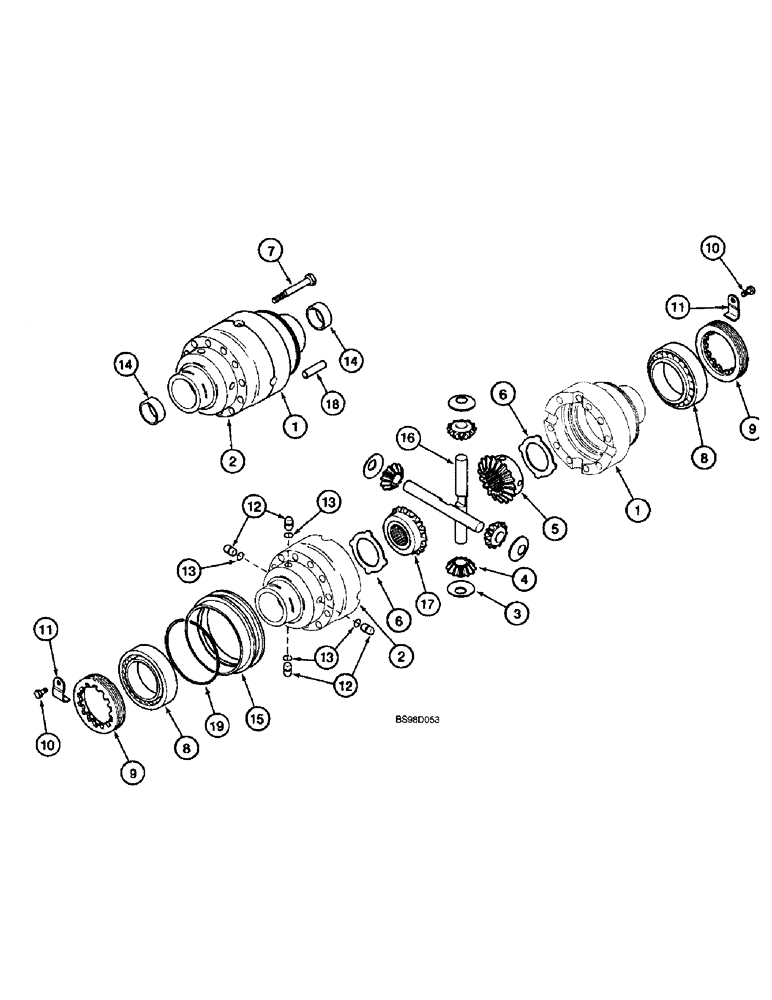

Запчасти Case 590SL (6-162) - REAR DRIVE AXLE, DIFFERENTIAL, MODELS WITHOUT POWERSHIFT TRANS. (CLOCKWISE INPUT) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
275306A1
REAR AXLE
AXLE ASSEMBLY - rear drive, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 19
1шт.
310482A1
HOUSING
ASSEMBLY - differential, Includes: Ref. 1 and 2
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - differential, flange half
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - differential, plain half
1шт.
3
E135777
WASHER
- thrust
4шт.
Part of Gear Set, P/N 310481A1
1шт.
4
190471A1
PINION
GEAR - sun, 12 teeth, no longer sold separately, must be replaced as a set, for service order 310481A1 gear set, see below
4шт.
Part of Gear Set, P/N 310481A1
1шт.
5
E135780
GEAR WHEEL
GEAR - side, pinion, no longer sold separately, must be replaced as a set, for service order 310481A1 gear set, see below
1шт.
Part of Gear Set, P/N 310481A1
1шт.
6
190469A1
THRUST WASHER
WASHER - thrust
2шт.
Part of Gear Set, P/N 310481A1
1шт.
7
S300976
BOLT,M12 x 1.5 x 90mm
BOLT - hex, special, 12 - 1.75 x 90 mm, class 12.9
10шт.
Part of Gear Set, P/N 310481A1
1шт.
8
E135785
BEARING
- cup and cone
2шт.
9
P3034505
NUT
RING - locking, threaded
2шт.
10
112486A1
BOLT,Hex, M6 x 12
BOLT - hex, self-locking, special, 6 - 1 x 12 mm
2шт.
11
175959A1
BRACKET
- lock
2шт.
12
292207A1
PIN
Housing
4шт.
13
292208A1
O-RING
- pin
4шт.
15
191067A1
SLEEVE
- housing
1шт.
16
190468A1
SHAFT
- sun gear, no longer sold separately, must be replaced as a set, for service order 310481A1 gear set, see below
2шт.
Part of Gear Set, P/N 310481A1
1шт.
17
311204A1
PINION
GEAR - side pinion, no longer sold separately, must be replaced as a set, for service order 310481A1 gear set, see below
1шт.
Part of Gear Set, P/N 310481A1
1шт.
18
D143033
DOWEL
PIN - dowel, 12 x 40 mm
2шт.
19
175961A1
RING, LOCKING
RING - lock
1шт.
310481A1
SET OF PARTS
SET - gear, differential, servic replacement, includes Refs. 3- 6, 16 and 17
1шт.
Выбрано товаров: 29
