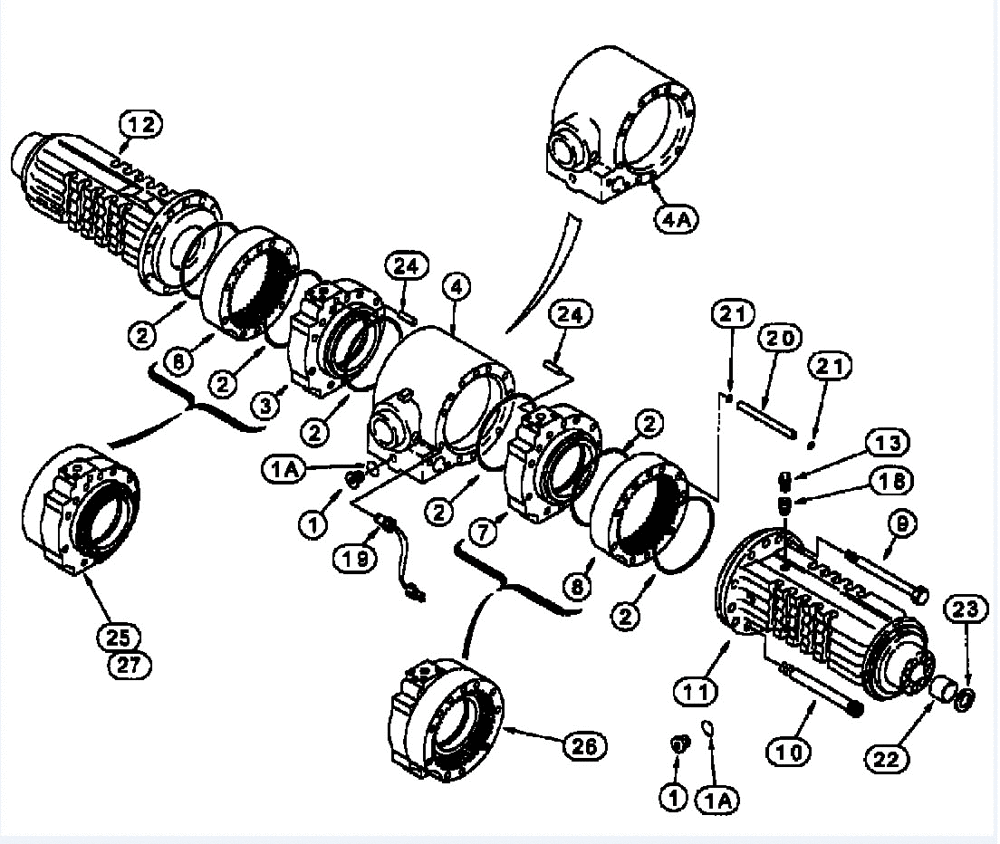

Запчасти Case 590SL (6-160) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

275306A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models without powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 27

1шт.

275307A1

REAR AXLE

AXLE ASSEMBLY - rear drive, models with powershift transmission, parts list figures 6-160 - 6-172, 7-2 and 7-4, Includes: Ref. 1 - 27

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain, Includes: Ref. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

4-6шт.

3

196055A2

CYLINDER

- brake, right-hand, 275306A1 axle without powershift transmission, replaces 196055A1 cylinder; no longer available, order 315553A1 kit

1шт.

3a

295029A1

CYLINDER

- brake, right-hand, 275307A1 axle with powershift transmission, no longer available, order 315556A1 kit

1шт.

4

284630A1

HOUSING

- center, axle, 275306A1 axle without powershift transmission

1шт.

4a

310480A1

HOUSING

- center, axle, 275307A1 axle with powershift transmission

1шт.

7

196059A2

CYLINDER

- brake, left-hand, no longer available, order 315554A1 kit

1шт.

8

196060A1

FLANGE

SLEEVE - gear housing, if used

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

4шт.

11

295577A1

HOUSING

- Axle, With Breather Hole

1шт.

12

295578A1

HOUSING

- Axle, Without Breather Hole

1шт.

13

1966149C2

BREATHER

- axle housing

1шт.

18

E135750

AXLE PIN

EXTENSION - breather

1шт.

19

192481A1

SENSOR

SWITCH - oil temperature, may have one or two wires

1шт.

20

222688A1

TUBE

- internal

1шт.

21

100760A1

O-RING

- sealing, tube

2шт.

22

196065A1

BUSHING

- axle housing

2шт.

23

196066A1

OIL SEAL

SEAL - oil, axle housing, 38 ID x 50 O.D.

2шт.

24

D142898

PLUG,M10 x 1

- sealing, hole

2шт.

25

328554A1

SET OF PARTS

CYLINDER - brake, right-hand, one-piece design, models without powershift, Replaces Ref. 2, 3 and 8 used on some models; No Longer Used On This Axle, Order 328555A1 Right-Hand Brake Cylinder, Ref 27

1шт.

26

328553A1

SET OF PARTS

CYLINDER - brake, left-hand, one-piece design, models with or without powershift, Replaces Ref. 2, 7 and 8 used on some models

1шт.

27

328555A1

SET OF PARTS

CYLINDER - brake, right-hand, one-piece design, models with powershift, or without powershift; Replaces Ref. 2, 3, 3A and 8 used on some models

1шт.

315553A1

SET OF PARTS

KIT - brake cylinder, includes 196055A2 cylinder and D142898 plug, right-hand, models without powershift, if used

1шт.

315554A1

SET OF PARTS

KIT - brake cylinder, includes 196059A2 cylinder and D142898 plug, left-hand, models with or without powershift, if used

1шт.

315556A1

SET OF PARTS

KIT - brake cylinder, includes 295029A1 cylinder and D142898 plug, right-hand, models with powershift, if used

1шт.
