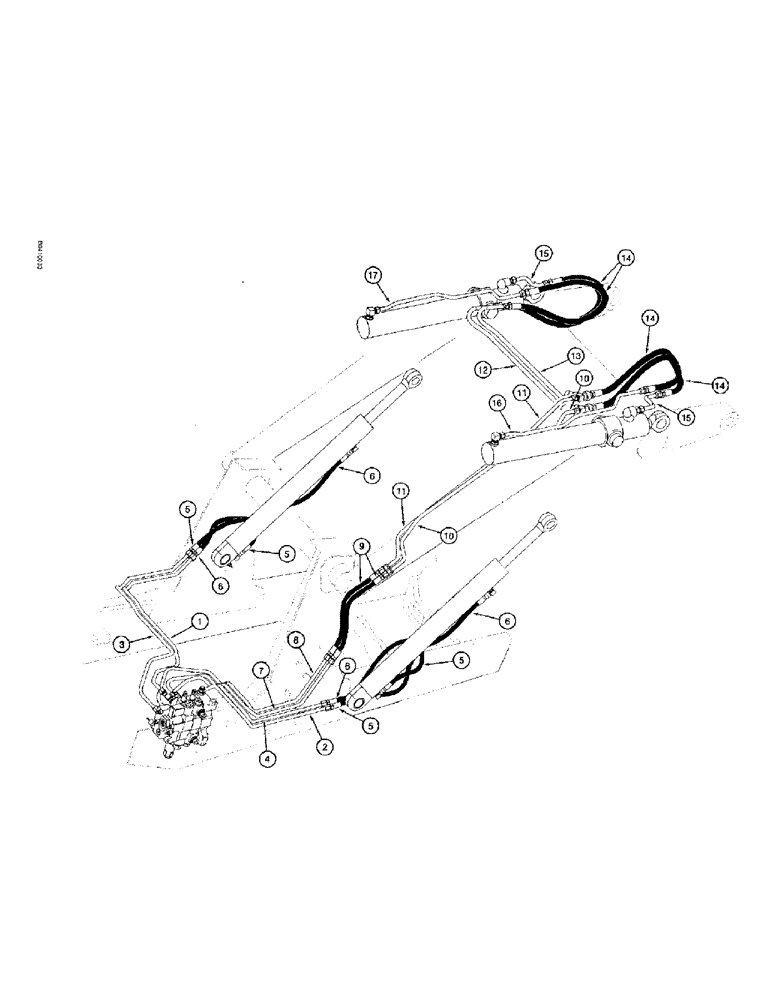

Запчасти Case 590SL (1-14) - PICTORIAL INDEX, LOADER HYDRAULICS, LIFT AND BUCKET CYLINDERS (00) - PICTORIAL INDEX

1

Tube from upper lift port of loader

1шт.

control valve to rod end of

1шт.

left-hand lift cylinder, Page 8-11

1шт.

2

Tube from lower lift port of loader

1шт.

control valve to closed end of

1шт.

right-hand lift cylinder, Page 8-11

1шт.

3

Tube from lower lift port of loader

1шт.

control valve to closed end of

1шт.

left-hand lift cylinder, Page 8-11

1шт.

4

Tube from upper lift port of loader

1шт.

control valve to rod end of

1шт.

right-hand lift cylinder, Page 8-11

1шт.

5

Hoses at lift cylinder closed end

1шт.

Page 8-11

1шт.

6

Hose at upper port of control valve

1шт.

to lift cylinder rod end, Page 8-11

1шт.

7

Tube at bucket section upper port

1шт.

Page 8-13

1шт.

8

Tube at bucket section lower port

1шт.

Page 8-13

1шт.

9

Hose at loader arm pivot, Page 8-13

1шт.

10

Lower tube on right-hand lift arm

1шт.

from bucket section upper, Start Serial: port

1шт.

closed end of bucket cylinders

1шт.

Page 8-13

1шт.

11

Upper tube on right-hand lift arm

1шт.

from bucket section lower, Start Serial: port

1шт.

bucket cylinder rod end, Page 8-13

1шт.

12

Rear crossover tube at upper lift

1шт.

frame tube to rod end of bucket

1шт.

cylinder, Page 8-13

1шт.

13

Front crossover tube at lower lift

1шт.

frame tube to bucket cylinder

1шт.

closed end, Page 8-13

1шт.

14

Hose at bucket cylinders, Page 8-13

1шт.

15

Tube at bucket cylinder rod end

1шт.

Page 8-13

1шт.

16

Tube to right-hand bucket cylinder

1шт.

closed end, Page 8-13

1шт.

17

Tube at left-hand bucket cylinder

1шт.

closed end, Page 8-13

1шт.
