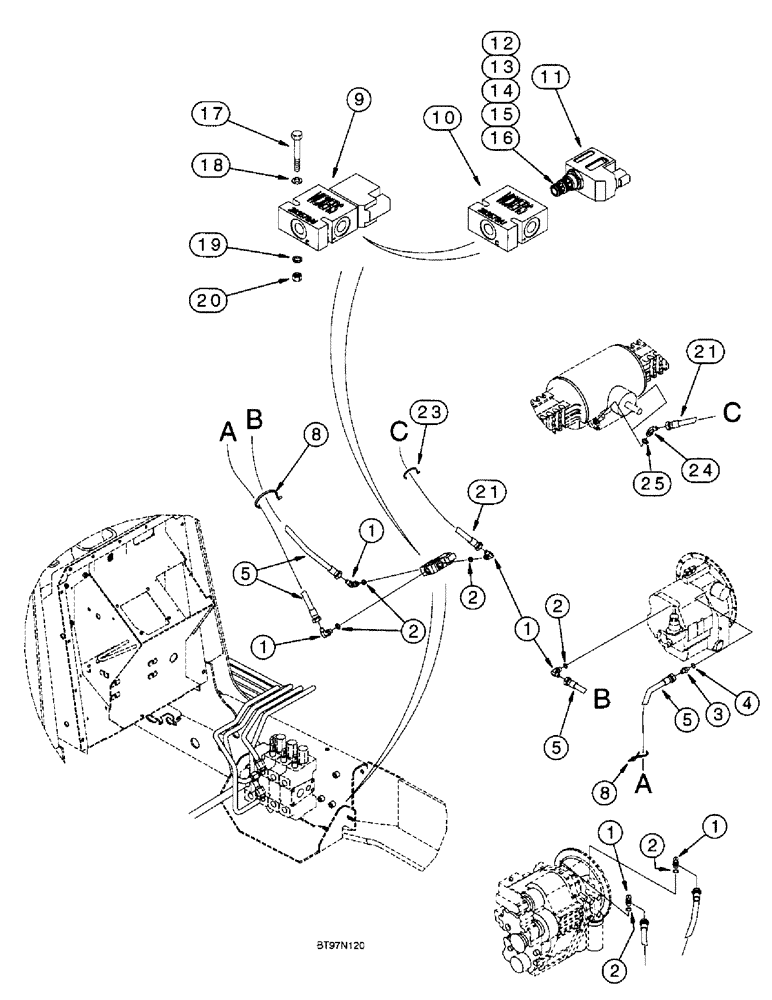

Запчасти Case 590SL (6-156) - REAR AXLE DIFFERENTIAL LOCK, CHASSIS MOUNTED DIFFERENTIAL LOCK SOLENOID VALVE (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, four used on models without powershift transmissions; five used on models with powershift transmissions, Includes: Ref. 2

4-5шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 4

1шт.

5

304019A1

HOSE

- 1200 mm (47-1/4 inch) long, transmission supply and return lines, transmission to solenoid valve

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

9

283579A1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, differential lock, Includes: Ref. 10 - 16 and jam nut

1шт.

10

297255A1

JUNCTION BOX

MANIFOLD - valve

1шт.

11

349295A1

SOLENOID VALVE

VALVE ASSEMBLY - differential lock solenoid, 12 volt, Replaces 184505A1

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE - solenoid, cartridge, component parts are not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

NSS

NOT SOLD SEPARAT

NUT - jam

1шт.

17

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

304020A1

HOSE

- 625 mm (24-5/8 inch) long, solenoid valve to rear axle

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj. O-ring boss, axle port location shown is for models without powershift transmission; for models with powershift the elbow is located on the opposite side of the axle input shaft, Includes: Ref. 25

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
